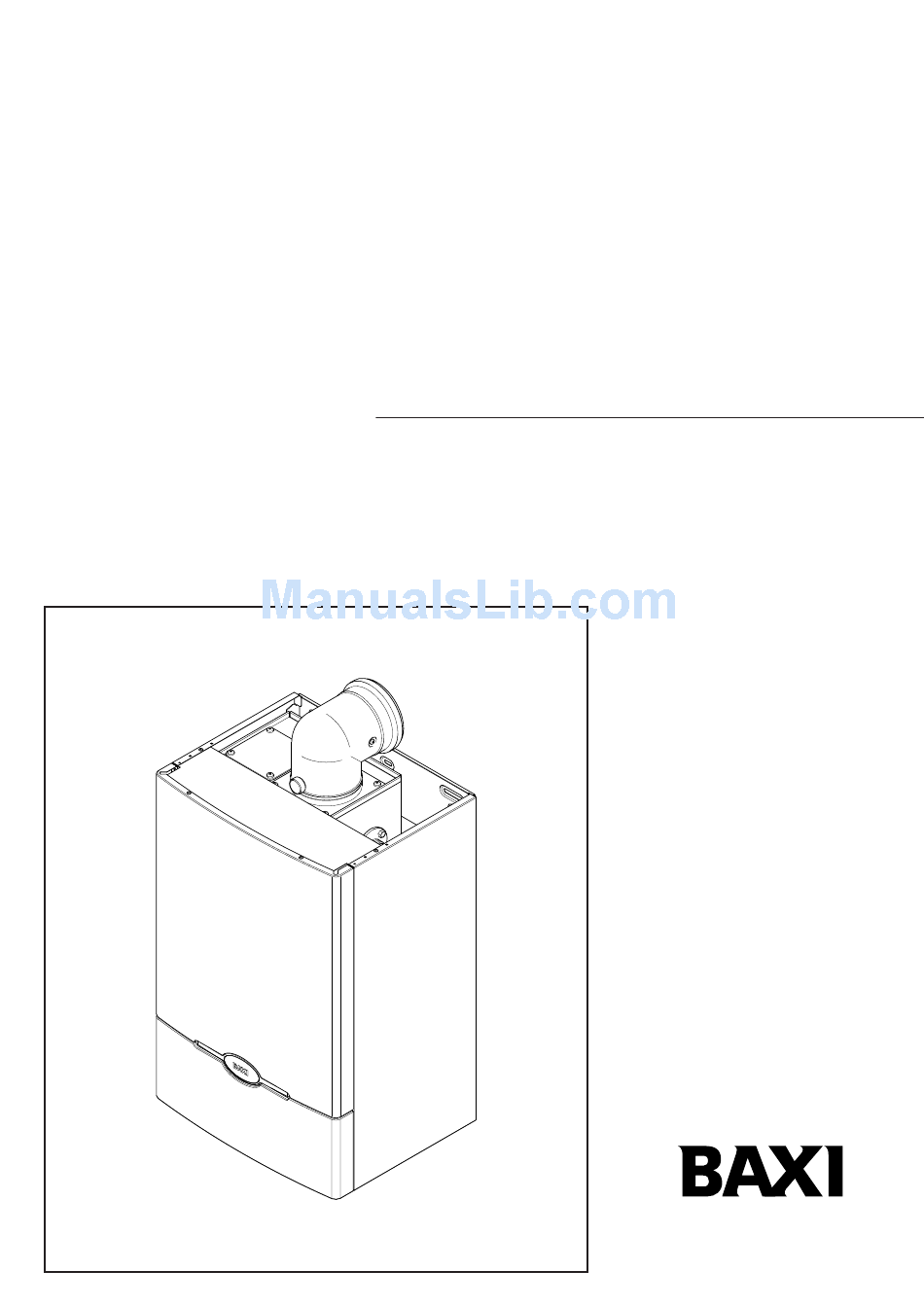

Please keep these instructions safe. Should you move house, please hand them over to the next occupier. Baxi Barcelona Wall Mounted Powered Flue Condensing Boiler Gas Fired Central Heating Unit User’s Operating Instructions...
Notified Body 0086. success. Product/Production certified by: Notified Body 0086. We hope you get a satisfactory service from Baxi. If not, please let us know. For GB/IE only. Baxi is a BS-EN ISO 9001 Accredited Company...
IMPORTANT - The addition of anything that may interfere with the normal operation of the appliance without the express written permission of Baxi UK Limited could invalidate the appliance warranty and infringe the G (Installation and Use) R AFETY EGULATIONS “Benchmark”...
2.0 Operating the Boiler Operating the Boiler 1. Remove the lower door panel by gripping it’s lower edge and rotating upwards (Fig. 1). 2. Turn on the main gas and electricity supplies to the appliance. 3. Set the boiler thermostat control knob to the required setting (Fig.
3.0 Safety Devices Operation of Safety Devices 1. Your Baxi Barcelona is fitted with safety devices which shut down the appliance if: a) the system overheats. b) the condensate drain is blocked. c) there is no gas to the boiler.
Page 6
4.0 Clearances 390mm 5mm Min 5mm Min Clearances around the Boiler (Figs. 8 & 9) 200mm 1. The minimum clear spaces needed around the boiler are: - 200mm Bottom - 130mm Both sides - 5mm Front - 500mm (For Servicing) - 5mm (In Operation) 2.
Page 7
Guarantee 1. Your Baxi Barcelona is designed and produced to meet all the relevant Standards. 2. Baxi UK Limited provide a 12 month guarantee on the boiler. The guarantee operates from the date installation is completed for the customer who is the original user.
