Summary of Contents for Netis WF2222

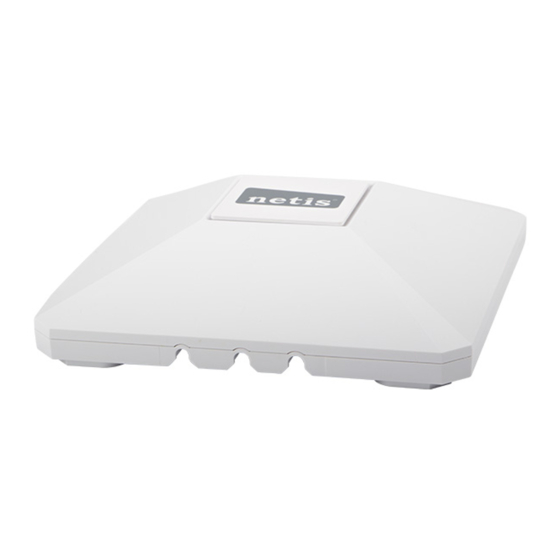

- Page 1 Wireless N Ceiling-Mounted Access Point Quick Installation Guide Model No. WF2222...
-
Page 2: Table Of Contents
CONTENTS 1. Package Contents 2. Hardware Information 2.1 Front Panel 2.2 Rear Panel 3. Hardware Connection A. Via PSE Device B. Via PoE Power Injector C. Via Power Adapter 4. Network Configuration 5. Hardware Installation A. Ceiling Mounting B. Wall Mounting Troubleshooting Appendix A: LED Locator Appendix B: Set Static IP for Computer... -
Page 3: Package Contents
Wireless N Ceiling-Mounted Access Point Quick Installation Guide 1.Package Contents The following items should be found in your package: netis Wireless N Ceiling-Mounted Access Point Quick Installation Guide Model No. WF2222 Power Adapter Quick Installation Guide Wireless N Access Point... -
Page 4: Rear Panel
Wireless N Ceiling-Mounted Access Point Quick Installation Guide 2.2 Rear Panel LAN2 LAN1 Default LAN2 LAN1 Default Description Interface/Button The LAN1 port is used to connect to a router to transmit data or to a PSE (Power Sourcing Equipment), such as... -
Page 5: Hardware Connection
A. Via PSE Device Typical Application and hardware connection as follows: Internet PoE Switch Router 1) Connect the LAN1 port of netis Access Point to your PSE device（PoE Switch）with an Ethernet cable. 2) Then go to “4. Network Configuration”, to configure WF2222. -
Page 6: Via Poe Power Injector
1) Connect your main router to the LAN/WAN port on the PoE Power Injector with an Ethernet Cable. 2) Connect the LAN2 port of netis Access Point to the PoE port on the PoE Power Injector with an Ethernet Cable. -
Page 7: Via Power Adapter
1) Connect your computer or main router to the LAN1 port or LAN2 port of netis Access Point. 2) Plug the Provided Power Adapter into the PWR port of netis Access Point and the other end to a stand electrical wall socket. -
Page 8: Network Configuration
The netis Access Point supports multiple modes including AP, Multi-SSID (VLAN), Repeater, WDS and Client. In default, netis Access Point works in AP mode, it can be used to create one or more wireless networks from an Ethernet connection. It is suitable for the room where there's already a wired router but you need additional wireless hotspots. - Page 9 (SSID) and password. Click Save button to make your settings take effect. Note: Now you're wirelessly connected to the netis Access Point's network with default wireless name and password. Once the new settings take effect, you'd better search for the new one and connect to it with the new password.
- Page 10 Quick Setup page. There're two blue sections for two wireless networks broadcasted by netis Access Point. Note: The netis Access Point supports up to 3 different AP networks in one time. You may click the icon for each network to change the settings for the corresponding section.
-
Page 11: Hardware Installation
Step 5: Now you can connect your wireless devices to the modified wireless network or new AP networks for Internet Access wirelessly. Remark: The netis Access Point also supports Repeater, Client, WDS modes to bridge or repeat signal from the existing wireless network, providing various wireless solutions. You can click on the “Extender” tab in quick setup page. - Page 12 Wireless N Ceiling-Mounted Access Point Quick Installation Guide Step 1: Remove the selected ceiling and place the mounting bracket on the suitable location of the ceiling, please note that the smooth-surface of mounting bracket should face to the ceiling tile, then mark the positions of the four mounting slots, and a hole which is 5cm in front of the U-shaped notch for the Ethernet cable to feed through.
- Page 13 Step 4: Feed the Ethernet cable through the hole, and connect the Ethernet cable to the Ethernet port of netis Access Point. Step 5: Set the ceiling tile back into place, then fix netis Access Point to the mounting bracket by aligning arrows as shown below.
-
Page 14: Wall Mounting
Mark the positions of the four mounting slots Step 2: Attach the mounting bracket to the wall by using the provide mounting kits. Step 3: Connect the Ethernet cable to the Ethernet port of netis Access Point. - Page 15 Wireless N Ceiling-Mounted Access Point Quick Installation Guide Plastic Wall Anchor Self-tapping Screw Step 4: Fix netis Access Point to the mounting bracket by aligning arrows as shown below.
-
Page 16: Troubleshooting
Troubleshooting How do I restore my netis Access Point's configuration to its default settings? With the Access Point powered on, use a pin to press and hold the Default button for 8 to 10 seconds before releasing it. -
Page 17: Appendix A: Led Locator
LED locator function quickly. Please configure as follows. 1) Open your browser on your wireless computer and type “http://netisap.cc” in the address field to visit netis Access Point's web management page. 2) In quick setup page, click on the “LED” tab on the left. -
Page 18: Appendix B: Set Static Ip For Computer
Wireless N Ceiling-Mounted Access Point Quick Installation Guide Appendix B: Set Static IP for Computer Please make sure that your computer is connected to netis Access Point with an Ethernet cable (or wirelessly). Then you may manually set the IP address of the wired (or wireless) network adapter on your computer as below. -
Page 19: Appendix C: Fcc Statement
Appendix C: FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
