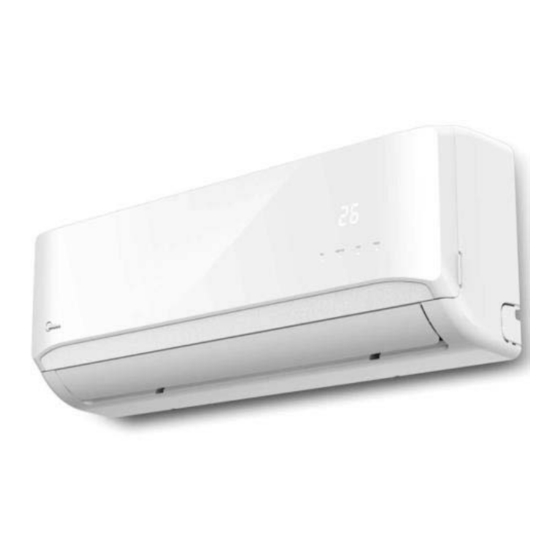

Airwell AWSI-HMF007-N11 Service Manual
  1. Manuals
  2. Brands
  3. Airwell Manuals
  4. Air Conditioner
  5. AWSI-HMF007-N11
  6. Service manual

Airwell AWSI-HMF007-N11 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

REFRIGERANT
REFRIGERANT
R410A
SM HMF 1-A.1 GB
HMF Hi wall Series
Indoor Units
AWSI-HMF007-N11
AWSI-HMF009-N11
AWSI-HMF012-N11
AWSI-HMF018-N11
AWSI-HMF024-N11
Outdoor Units
AWAU-YMF007-H11
AWAU-YMF009-H11
AWAU-YMF012-H11
AWAU-YMF018-H11
AWAU-YMF024-H11
HEATPUMP
APRIL, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWSI-HMF007-N11 and is the answer not in the manual?

Questions and answers

Related Manuals for Airwell AWSI-HMF007-N11

Summary of Contents for Airwell AWSI-HMF007-N11

  • Page 1 HMF Hi wall Series Indoor Units Outdoor Units AWSI-HMF007-N11 AWAU-YMF007-H11 AWSI-HMF009-N11 AWAU-YMF009-H11 AWSI-HMF012-N11 AWAU-YMF012-H11 AWSI-HMF018-N11 AWAU-YMF018-H11 AWSI-HMF024-N11 AWAU-YMF024-H11 REFRIGERANT REFRIGERANT R410A HEATPUMP SM HMF 1-A.1 GB APRIL, 2014...

  • Page 2: Table Of Contents

    CONTENTS 1. Precaution ..............................3 1.1 Safety Precaution .......................... 3 1.2 Warning ............................3 2. Function ................................ 6 3. Specification ..............................7 4. Dimension ..............................12 4.1 Indoor Unit ........................... 12 4.2 Outdoor Unit ..........................14 5. Refrigerant Cycle Diagram ........................15 6.

  • Page 3: Precaution

    PRECAUTION 1. Precaution 1.1 Safety Precaution  To prevent injury to the user or other people and property damage, the following instructions must be followed.  Incorrect operation due to ignoring instruction will cause harm or damage.  Before service the unit, be sure to read this service manual at first. 1.2 Warning ...
  • Page 4 PRECAUTION  Do not plug or unplug the power supply plug during operation. There is risk of fire or electric shock.  Do not touch (operation) the product with wet hands.  Do not place a heater or other appliance near the power cable. There is risk of fire and electric shock.
  • Page 5 PRECAUTION It may cause a problem for your neighbors.  Use two or more people to lift and transport the product.  Do not install the product where it will be exposed to sea wind (salt spray) directly. It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.

  • Page 6: Function

    FUNCTION 2. Function Model Names of Indoor/Outdoor Units Capacity Indoor units Outdoor units AWSI-HMF007-N11 AWAU-YMF007-H11 AWSI-HMF009-N11 AWAU-YMF009-H11 On-Off AWSI-HMF012-N11 AWAU-YMF012-H11 AWSI-HMF018-N11 AWAU-YMF018-H11 AWSI-HMF024-N11 AWAU-YMF024-H11 2 ways of drainage(O) Filter Cold catalyst filter Louver Position Memory Function Ionizer(O) Refrigerant Leakage Detect Silver Ico Filter(O) Self-diag.

  • Page 7: Specification

    SPECIFICATION 3. Specification Model Indoor Unit AWSI-HMF007-N11 Model Outdoor Unit AWAU-YMF007-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 2.198 2.344 EER /COP 3.21 3.61 Energy efficiency class Power supply V/Ph/Hz 220-240V/Single/50Hz Circuit breaker rating Fan type & quantity...
  • Page 8 SPECIFICATION Model Indoor Unit AWSI-HMF009-N11 Model Outdoor Unit AWAU-YMF009-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 2.637 2.784 EER /COP 3.21 3.61 Energy efficiency class Power supply V/Ph/Hz 220-240V/Single/50Hz Circuit breaker rating Fan type & quantity Cross flow fan x1 Fan speeds H/M/L...
  • Page 9 SPECIFICATION Model Indoor Unit AWSI-HMF012-N11 Model Outdoor Unit AWAU-YMF012-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 3.370 3.516 EER /COP 3.21 3.61 Energy efficiency class Power supply V/Ph/Hz 220-240V/Single/50Hz Circuit breaker rating Fan type & quantity Cross flow fan x1 Fan speeds H/M/L...
  • Page 10 SPECIFICATION Model Indoor Unit AWSI-HMF018-N11 Model Outdoor Unit AWAU-YMF018-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 5.275 5.275 EER /COP 3.22 3.61 Energy efficiency class Power supply V/Ph/Hz 220-240V/Single/50Hz Circuit breaker rating Fan type & quantity Cross flow fan x1 Fan speeds H/M/L...
  • Page 11 SPECIFICATION Model Indoor Unit AWSI-HMF024-N11 Model Outdoor Unit AWAU-YMF024-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 6.154 6.740 EER /COP 2.81 3.21 Energy efficiency class Power supply V/Ph/Hz 220-240V/Single/50Hz Circuit breaker rating Fan type & quantity Cross flow fan x1 Fan speeds H/M/L...

  • Page 12: Dimension

    DIMENSION 4. Dimension 4.1 Indoor Unit Model AWSI-HMF007-N11 AWSI-HMF009-N11 AWSI-HMF012-N11 AWSI-HMF018-N11 AWSI-HMF024-N11 1045 HMF Series Version...
  • Page 13 DIMENSION Model L(mm) R(mm) H(mm) Dimension of installation hole(mm) AWSI-HMF007-N11 AWSI-HMF009-N11 ￠65 AWSI-HMF012-N11 AWSI-HMF018-N11 Model L(mm) R(mm) H(mm) Dimension of installation hole(mm) ￠65 AWSI-HMF024-N11 HMF Series Version...

  • Page 14: Outdoor Unit

    DIMENSION 4.2 Outdoor Unit More than 30cm More than 60cm (Service space) More than 30cm More than 60cm More than 200cm Model AWAU-YMF007-H11 AWAU-YMF009-H11 AWAU-YMF012-H11 AWAU-YMF018-H11 AWAU-YMF024-H11 HMF Series Version...

  • Page 15: Refrigerant Cycle Diagram

    REFRIGERANT CYCLE DIAGRAM 5. Refrigerant Cycle Diagram INDOOR OUTDOOR CHECK VALVE LIQUID SIDE (Heating Model only) 2-WAY VALVE CAPILIARY TUBE HEAT HEAT EXCHANGE EXCHANGE (EVAPORATOR) (CONDENSER) T1 Room temp. sensor T2 Evaporator temp. sensor GAS SIDE 4-WAY VALVE 3-WAY VALVE ACCUMULATOR COOLING COMPRESSOR...

  • Page 16: Wiring Diagram

    WIRING DIAGRAM 6. Wiring Diagram 6.1 Indoor Unit AWSI-HMF007-N11, AWSI-HMF009-N11, AWSI-HMF012-N11, AWSI-HMF018-N11, HMF Series Version...
  • Page 17 WIRING DIAGRAM AWSI-HMF024-N11 HMF Series Version...

  • Page 18: Outdoor Unit

    WIRING DIAGRAM 6.2 Outdoor Unit AWAU-YMF007-H11, AWAU-YMF009-H11, AWAU-YMF012-H11 HMF Series Version...
  • Page 19 WIRING DIAGRAM AWAU-YMF018-H11 HMF Series Version...
  • Page 20 WIRING DIAGRAM AWAU-YMF024-H11 HMF Series Version...

  • Page 21: Installation Details

    INSTALLATION DETAILS 7 Installation Details 7.1 Wrench torque sheet for installation Outside diameter Torque Additional tightening torque inch N.cm N.cm Ф6.35 1500(153kgf.cm) 1600(163kgf.cm) Ф9.52 2500(255kgf.cm) 2600(265kgf.cm) Ф12.7 3500(357kgf.cm) 3600(367kgf.cm) Ф15.9 4500(459kgf.cm) 4700(479kgf.cm) Ф19 6500(663kgf.cm) 6700(683kgf.cm) 7.2 Connecting the cables The power cord of connect should be selected according to the following specifications sheet. Rated current of appliance Nominal cross-sectional area (mm²...

  • Page 22: Pipe Length And The Elevation

    The pipe length and refrigerant amount: Standard Max. Max. Additional Pipe size Model length Elevation Length refrigerant Liquid B (m) A (m) (g/m) 3/8’’ 1/4’’ AWSI-HMF007-N11+AWAU-YMF007-H11 (Ф6.35) (Ф9.52) 3/8’’ 1/4’’ AWSI-HMF009-N11+AWAU-YMF009-H11 (Ф6.35) (Ф9.52) 1/4’’ 1/2’’ AWSI-HMF012-N11+AWAU-YMF012-H11 (Ф12.7) (Ф6.35) 1/4’’ 1/2’’ AWSI-HMF018-N11+AWAU-YMF018-H11 (Ф12.7) (Ф6.35)

  • Page 23: Installation For The First Time

    INSTALLATION DETAILS 7.4 Installation for the first time Air and moisture in the refrigerant system have undesirable effects as below: ● Pressure in the system rises. ● Operating current rises. ● Cooling or heating efficiency drops. ● Moisture in the refrigerant circuit may freeze and block capillary tubing. ●...
  • Page 24 INSTALLATION DETAILS 6) Make evacuation for 30 minutes and check whether the compound meter indicates -0.1Mpa. If the meter does not indicate -0.1Mpa after pumping 30 minutes, it should be pumped 20 minutes more. If the pressure can’t achieve -0.1Mpa after pumping 50 minutes, please check if there are some leakage points.
  • Page 25 INSTALLATION DETAILS position. Be sure to use a hexagonal wrench to operate the valve stems. 7). Mount the valve stems nuts and the service port cap. Be sure to use a torque wrench to tighten the service port cap to a torque 18N· m. Be sure to check the gas leakage.

  • Page 26: Adding The Refrigerant After Running The System For Many Years

    INSTALLATION DETAILS 7.5 Adding the refrigerant after running the system for many years Electronic scale Procedure: 1). Connect the charge hose to the 3-way service port, open the 2-way valve and the 3-way valve. Connect the charge hose to the valve at the bottom of the cylinder. If the refrigerant is R410A, make the cylinder bottom up to ensure liquid charge.
  • Page 27 INSTALLATION DETAILS Procedure 1). Confirm that both the 2-way and 3-way valves are set to the opened position Remove the valve stem caps and confirm that the valve stems are in the opened position. Be sure to use a hexagonal wrench to operate the valve stems. 2).

  • Page 28: Re-Installation While The Outdoor Unit Need To Be Repaired

    INSTALLATION DETAILS Procedure: 1). Confirm that both the 2-way and 3-way valves are set to the closed position. 2). Connect the charge set and a charging cylinder to the service port of the 3-way valve Leave the valve on the charging cylinder closed. 3).
  • Page 29 INSTALLATION DETAILS Procedure: 1). Confirm that both the 2-way and 3-way valves are set to the opened position. 2). Connect the vacuum pump to 3-way valve’s service port. 3). Evacuation for approximately one hour. Confirm that the compound meter indicates -0.1Mpa. 4).
  • Page 30 INSTALLATION DETAILS 2. Refrigerant charging Electronic scale Procedure: 1). Connect the charge hose to the charging cylinder, open the 2-way valve and the 3-way valve Connect the charge hose which you disconnected from the vacuum pump to the valve at the bottom of the cylinder.

  • Page 31: Operation Characteristics

    OPERATION CHARACTERISTICS 8. Operation Characteristics CAUTION: 1. If the air conditioner is used beyond the above conditions, certain safety protection features may come into operation and cause the unit to operate abnormally. 2. The room relative humidity should be less than 80%. If the air conditioner operates beyond this figure, the surface of the air conditioner may attract condensation.

  • Page 32: Electronic Function

    ELECTRONIC FUNCTION 9. Electronic function 9.1 Abbreviation T1: Indoor room temperature T2: Coil temperature of evaporator T3: Coil temperature of condenser T4: Outdoor ambient temperature T5: Compressor discharge temperature 9.2 Display function 8.2.1 Icon explanation on indoor display board. 1. In normal situation, the setting temperature is displayed. (No temp.

  • Page 33: Main Protection

    ELECTRONIC FUNCTION 9.3 Main Protection 9.3.1 Time Delay at restart for compressor. 9.3.2 Sensor protection at open circuit and breaking disconnection. 9.3.3 Zero crossing detection error protection If AC can not detect zero crossing signal for 4 minutes or the zero crossing signal time interval is not correct, the unit will stop and the LED will display the failure.

  • Page 34: Operation Modes And Functions

    ELECTRONIC FUNCTION 9.4 Operation Modes and Functions 9.4.1 Fan mode (1) Outdoor fan and compressor stop. (2) Temperature setting function is disabled, and no setting temperature is displayed. (3) Indoor fan can be set to high/med/low/auto. (4) The louver operates the same as in cooling mode. (5) Auto fan: High Medium...
  • Page 35 ELECTRONIC FUNCTION 9.4.2.4 Low evaporator coil temperature T2 protection When the evaporator coil temp.T2 keeps lower than TE5 for 5 minutes, the compressor and outdoor fan will shut off. When T2 is higher than TE6, the compressor and outdoor fan will restart 9.4.2.5 High condenser temperature T3 protection(only for AWSI-HMF024-N11) When T3≥TE10, the compressor will stop and restart until T3<TE11.
  • Page 36 ELECTRONIC FUNCTION 9.4.3 Heating Mode 9.4.3.1 Compressor running rules: Once the compressor starts up, it will run 7 minutes. And then it will follow the below rules: When indoor room temp.T1 is higher than Tj, the compressor and outdoor fan will shut off. When T1 is lower than Tk, the compressor and outdoor fan will start up.
  • Page 37 ELECTRONIC FUNCTION For AWSI-HMF024-N11: When the compressor is on, the indoor fan can be set to high/med/low/auto. And the anti-cold wind function has the priority. If the compressor stops caused by the room temperature rising and T2≥TE1-6, the indoor fan will be forced to run at breeze for 127 seconds, if T2<TE1-6, the indoor fan will stop immediately.
  • Page 38 ELECTRONIC FUNCTION Auto fan action: When T1-Ts>2℃, the indoor fan will run at low speed. When T1-Ts≤0℃, the indoor fan will run at medium speed. 9.4.3.4 Defrosting mode：  Defrosting action： For AWSI-HMF024-N11:  Condition of defrosting: AC will enter defrosting mode if any of the following items is satisfied. (1) If T3<TC1 and the compressor keeps running over 45 minutes.
  • Page 39 ELECTRONIC FUNCTION  Defrosting action： For other models:  Condition of defrosting: 1,AC will enter defrosting mode if all of the following items is satisfied. 1.1 After the compressor keeps running 8 minutes, ΔT ΔT ≥4℃（ΔT=T2-T1） max- 1.2 AC meets A1 or A2. A1: The cumulative compressor running time is between 45~120 minutes.
  • Page 40 ELECTRONIC FUNCTION Case 1 Runtime=45 Case 2 45＜runtime≤60 Case 3 60＜runtime≤90 Case 4 90＜runtime≤120 Case 5 120＜runtime 2, The cumulative compressor running time is over 45 minutes .Meanwhile the indoor fan off or run in breeze mode automatically (for Anti-cold wind function), AC will enter defrosting mode and the defrosting time is ten minutes.
  • Page 41 ELECTRONIC FUNCTION 9.4.4 Auto-mode This mode can be chosen with remote controller and the setting temperature can be changed between 17~30℃. In auto mode, the machine will choose cooling, heating or fan-only mode according to ΔT (ΔT =T1-Ts). ΔT=T1-Ts Running mode ΔT＞2℃...
  • Page 42 ELECTRONIC FUNCTION 8.4.7.2 Timer on. The machine will turn on automatically when reaching the setting time. 8.4.7.3 Timer off. The machine will turn off automatically when reaching the setting time. 8.4.7.4 Timer on/off. The machine will turn on automatically when reaching the setting “on” time, and then turn off automatically when reaching the setting “off”...
  • Page 43 ELECTRONIC FUNCTION 9.4.12 8℃ Heating In heating operation, the preset temperature of the air conditioner can be as lower as 8℃, which keeps the room temperature steady at 8℃ and prevents household things freezing when the house is unoccupied for a long time in severe cold weather. HMF Series Version...

  • Page 44: Troubleshooting

    TROUBLESHOOTING 10. Troubleshooting 10.1 Indoor Unit Error Display Operation lamp Timer lamp Display LED STATUS ☆ 1 time EEPROM parameter error ☆ 2 times Zero-crossing signal detection error ☆ 3 times Indoor fan speed has been out of control Indoor room temperature sensor T1 open circuit or ☆...

  • Page 45: Diagnosis And Solution

    TROUBLESHOOTING 10.2 Diagnosis and Solution 10.2.1 EEPROM parameter error diagnosis and solution Shut off the power supply and turn it on 5 seconds later. Is it still displaying the error code? If the EEPROM chip is welded on main PCB, replace the main PCB directly.
  • Page 46 TROUBLESHOOTING 10.2.2 Zero crossing detection error diagnosis and solution Check if the connections and Correct the connections. Turn on the power supply is normal? unit when the power supply is good. Indoor main PCB is defective. Replace indoor main PCB. 10.2.3 Indoor fan speed has been out of control diagnosis and solution Shut off the power supply and turn it on 5 seconds...
  • Page 47 TROUBLESHOOTING Index 1: 1:Indoor AC Fan Motor Measure the resistance value of each winding by using the tester. For the resistance value of the motor, please contact the technical engineer. Index2: 1: Indoor AC Fan Motor Power on and set the unit running in fan mode at high fan speed. After running for 15 seconds, measure the voltage of pin1 and pin2.
  • Page 48 TROUBLESHOOTING 10.2.4 Open circuit or short circuit of temperature sensors diagnosis and solution Check the connections between temperature sensor and main PCB. Correct the connections. Are the connections good? Check the resistance value Replace indoor or outdoor main of the sensor via table1 PCB.
  • Page 49 TROUBLESHOOTING 10.2.5 Refrigerant Leakage Detection diagnosis and solution Shut off the power supply and turn it on 5 seconds later. Is it still displaying the error code? Check if T2 sensor is well Is there cool air blowing fixed. Correct the installation or replace T2 sensor.
  • Page 50 EXPLODED VIEW AND SPARE PART LIST 10.2.6 Indoor / outdoor units communication error diagnosis and solution Power off, then turn on the unit 5 seconds later(reconnect the power wire).Is the error still displaying after several minutes? Check all the wirings between indoor and outdoor, indoor main PCB and outdoor main PCB following the wiring diagram.
  • Page 51 EXPLODED VIEW AND SPARE PART LIST Main parts check 1.Temperature sensor checking Disconnect the temperature sensor from PCB, measure the resistance value with a tester. Temperature Sensors. Room temp.(T1) sensor, Indoor coil temp.(T2) sensor, Outdoor coil temp.(T3) sensor, Outdoor ambient temp.(T4) sensor, Compressor discharge temp.(T5) sensor.

  • Page 52: Exploded View

    EXPLODED VIEW AND SPARE PART LIST 11. Exploded View 11.1 Indoor unit AWSI-HMF007-N11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 53 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Panel assembly 201132391073 Air filter 201132391075 Display box assembly 203332591125 Display board assembly 201333090687 Cover of electrical equipment 201119901024 Panel frame assembly 201132391077 Screw cap 201119900950 Drain hose 201101020038 Pipe Nut 201600330002 Pipe Nut...
  • Page 54 EXPLODED VIEW AND SPARE PART LIST AWSI-HMF009-N11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 55 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Panel assembly 201132391073 Air filter 201132391075 Display box assembly 203332591125 Display board assembly 201333090687 Cover of electrical equipment 201119901024 Panel frame assembly 201132391077 Screw cap 201119900950 Drain hose 201101020038 Pipe Nut 201600330002 Pipe Nut...
  • Page 56 EXPLODED VIEW AND SPARE PART LIST AWSI-HMF012-N11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 57 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Panel assembly 201132591038 Display box assembly 203332591125 Display board assembly 201333090687 Cover of electrical equipment 201119901024 Panel frame assembly 201132591041 Screw cap 201119900950 Drain hose 201101020038 Pipe Nut 201600330003 Pipe Nut 201600330001 Fix clamp of temperature sensor...
  • Page 58 EXPLODED VIEW AND SPARE PART LIST AWSI-HMF018-N11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 59 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Panel assembly 201132790660 Air filter 201132790664 Display box assembly 203332890588 Display board assembly 201333090687 Cover of electrical equipment 201119901024 Panel frame assembly 201132790667 Screw cap 201119900950 Drain hose 201101020038 Pipe Nut 201600330003 Pipe Nut...
  • Page 60 EXPLODED VIEW AND SPARE PART LIST AWSI-HMF024-N11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 61 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Panel assembly 201133091036 Air filter(right) 201133091043 Air filter(left) 201133091044 Display box assembly 203333090474 Display board assembly 201333090687 Cover of electrical equipment 201133091048 Panel frame assembly 201133091041 Screw cap 201119900950 Horizontal louver 201133090987 Air outlet assembly...

  • Page 62: Outdoor Unit

    EXPLODED VIEW AND SPARE PART LIST 11.2 Outdoor unit AWAU-YMF007-H11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 63 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Rear net 201137200145 Condenser assembly 201537490046 Valve plate 201237200299 Chassis assembly 201237200260 Right clapboard 201237200238 Big handle 201137200160 Water collector 201137390016 Air outlet grille 201137590017 Front panel 201237200293 Supporter of fan motor holder 201237200060 Top cover assembly 201237200275...
  • Page 64 EXPLODED VIEW AND SPARE PART LIST AWAU-YMF009-H11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 65 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Rear net 2011372G0003 Condenser assembly 201537300308 Valve plate 201237200299 Chassis assembly 201237390094 Right clapboard 201237390085 Big handle 201137200160 Water collector 201137390016 Front panel assembly 201237090030 10.1 Air outlet grille 201137590017 10.2 Front panel...
  • Page 66 EXPLODED VIEW AND SPARE PART LIST AWAU-YMF012-H11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 67 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Rear net 2011376G0001 Condenser assembly 201537390180 Valve plate 201237300316 Chassis assembly 201237590083 Right clapboard 201237690009 Big handle 201137400366 Water collector 201137390017 Front panel assembly 201237400429 10.1 Air outlet grille 201137590017 10.2 Front panel...
  • Page 68 EXPLODED VIEW AND SPARE PART LIST AWAU-YMF018-H11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 69 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Rear net 2011374G0003 Condenser assembly 201537891080 Valve plate 201237200299 Chassis assembly 201237890107 Right clapboard 201248100369 Big handle 201148100122 Water collector 201137400000 Air outlet grille 201137890003 Front panel 201237890111 Top cover assembly 201237900028 Axial flow fan 201100300534...
  • Page 70 EXPLODED VIEW AND SPARE PART LIST AWAU-YMF024-H11 ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST HMF Series Version...
  • Page 71 EXPLODED VIEW AND SPARE PART LIST Part Name Quantity BOM Code Rear net 201137990001 Condenser assembly 201537990026 Valve plate 201248300316 Chassis assembly 201237900026 Right clapboard 201237900016 Big handle 201148100123 Water collector 201138090002 Air outlet grille 201237900024 Clamp of front net 201135110801 Front panel 201237900018...
