Configuring the Heat Pump Heating System

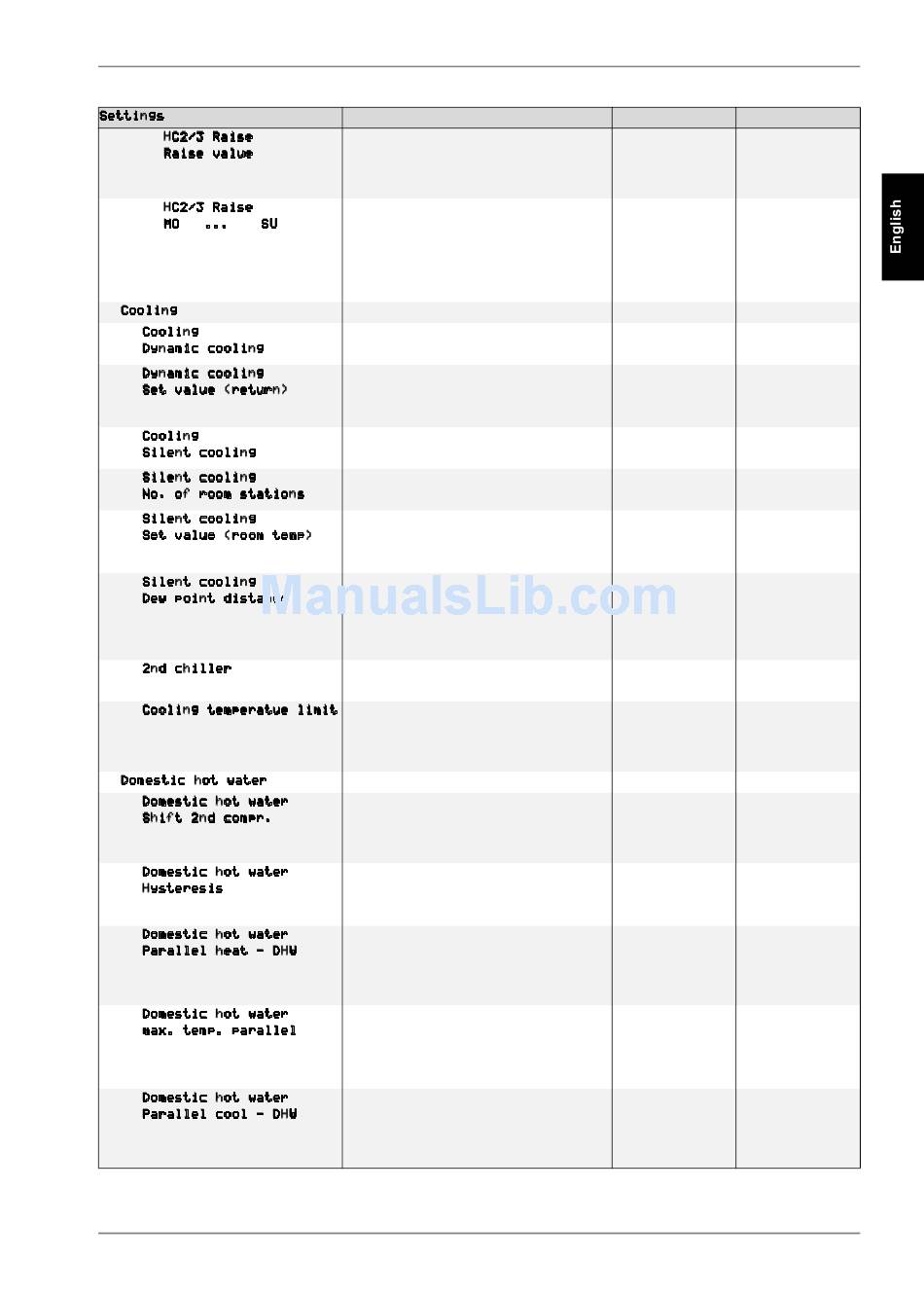

System-specific parameters
Sets the temperature value by which the
heating characteristic curve of heating circuit 2/
3 is to be raised when the temperature is
raised.
For each day of the week, it is possible to select
whether Time1, Time2, no time or both times
are to be active when the temperature is raised.
Operations to raise the temperature that
exceed a week day are activated or deactivated
at the end of each day accordingly.
Settings for cooling operation
Has the system got dynamic cooling (fixed
return set temperature)?
Sets the desired return set temperature when
dynamic cooling is selected
Has the system got silent (dew point-controlled)
cooling?
Are 1 or 2 room climate control stations
connected for silent cooling regulation?
Sets the room set temperature for silent cooling
The actual value is measured by room climate
control station 1
Rise in the minimum flow temperature
calculated from the measured values from the
room climate control station during silent
cooling. A raised value reduces the risk that
condensate will form.
Setting for specifying whether a second chiller
is to be used in the system.
Setting for specifying the external temperature
below which the cooling operation is to be
terminated in the case of rev. brine heat pumps
or passive cooling.
Sets the DHW preparation
For heat pumps with 2 compressors, this sets
the external temperature below which DHW
preparation and swimming pool water
preparation is carried out with 2 compressors
The hysteresis of the hot water set temperature
forms the neutral zone below which a request
for domestic hot water will be issued.
If the heat pump is operated with an additional
heat exchanger, is parallel operation of heating
and domestic hot water resulting in higher hot
water temperatures being reached desirable?
Sets the desired hot water temperature which is
to be reached in parallel heating – hot water
operation.
Is parallel operation of cooling and domestic
hot water possible due to the hydraulic isolation
of the cooling circuit and the hot water circuit?
Setting range Display
0 K Heating circuit 2
...
19 K
N Heating circuit 2
T1
T2
Y
Cooling function
No Cooling function
Yes
10 °C Cooling function
... 15 °C ... Dyn. cooling
30 °C
Yes Cooling function
No
1 Cooling function
2 Silent cooling
15.0 °C Cooling function
... 20.0 °C ... Silent cooling
30.0 °C
1.5 K Cooling function
... 2.0 K ... Silent cooling
5.0 K
No Cooling function
Yes
-20°C Cooling function
... 3°C ... Brine heat pump
35°C
Domestic hot water
-30 °C Domestic hot water
... 10 °C ... Compressor 2
35 °C Nonreversible HP
2 K Domestic hot water
... Sensor
15 K
No Additional heat
exchanger
Yes
Domestic hot water
Sensor
10 °C Parallel heat - DHW
... 45 °C ... Additional HE
80 °C Domestic hot water
Sensor
No Domestic hot water
Yes Sensor
Passive cooling
function
6.1
E-15
