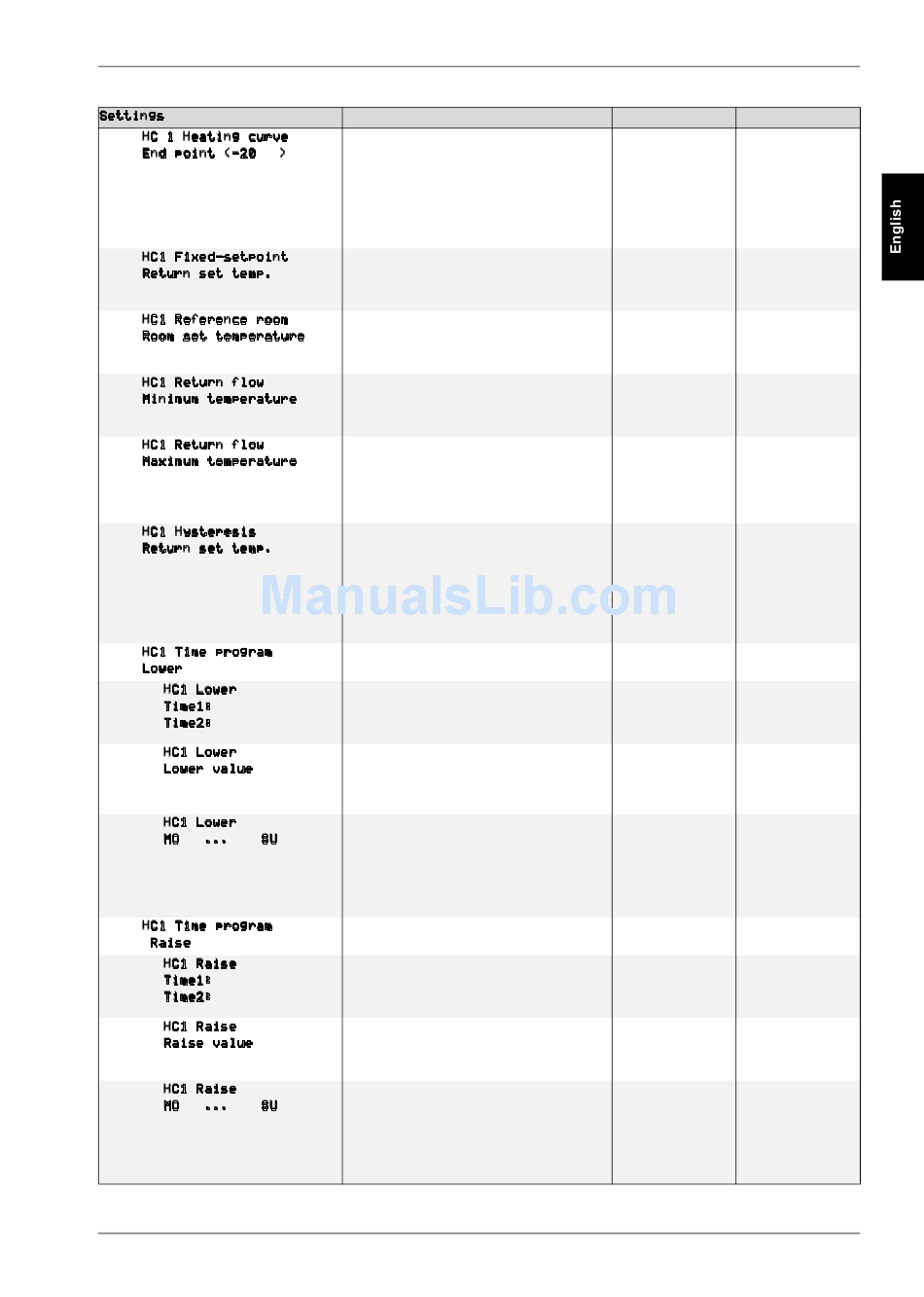

Configuring the Heat Pump Heating System
°C
System-specific parameters
The heating curve end point should be set
according to the design of the heating system.
This should be done by entering the maximum
return temperature, which is the product of the
maximum calculated flow temperature minus
the temperature difference in the heating
system (spread).
Sets the desired return set temperature when
fixed-setpoint regulation is selected
Sets the desired room set temperature and I
ratio when room temperature regulation is
selected
Sets the minimum return temperature when
room temperature regulation is selected
Different maximum temperatures are
permissible for panel and radiator heating
systems. The upper limit of the return set
temperature can be set between 25 °C and
70 °C.
The return set temperature hysteresis forms
the neutral zone for operation of the heat pump.
If the temperature "Return set temperature plus
hysteresis" is reached, the heat pump switches
itself off. If the temperature "Return set
temperature minus hysteresis" is reached, the
heat pump switches itself on.
Settings to lower the heating characteristic
curve of heating circuit 1
Sets the time during which the temperature in
heating circuit 1 is to be lowered
Sets the temperature value by which the
heating characteristic curve of heating circuit 1
is to be lowered when the temperature is
lowered
For each day of the week, it is possible to select
whether Time1, Time2, no time or both times
are to be active when the temperature is
lowered. Operations to lower the temperature
that exceed a week day are activated or
deactivated at the end of each day accordingly.
Settings to raise the heating characteristic
curve of heating circuit 1
Sets the time during which the temperature in
heating circuit 1 is to be raised.
Sets the temperature value by which the
heating characteristic curve of heating circuit 1
is to be raised.
For each day of the week, it is possible to select
whether Time1, Time2, no time or both times
are to be active when the temperature is raised.
Operations to raise the temperature that
exceed a week day are activated or deactivated
at the end of each day accordingly.
Setting range Display
20 °C Heating circuit 1
... 30 °C ... Regulation according
to external
70 °C
temperature
15 °C Heating circuit 1
... 40 °C ... Heating circuit 1
fixed-setpoint
60 °C
15.0 °C / 001 Heating circuit 1
... 20.0 °C .../ ...60 ... Heating circuit 1
reference room
30.0 °C / 999
15 °C Heating circuit 1
... 20 °C ... Heating circuit 1
reference room
30 °C
25 °C Heating circuit 1
... 50 °C ...
70 °C
0.5 K Heating circuit 1
... 2 K ...
5 K
Heating circuit 1
00:00 Heating circuit 1
...
23:59
0 K Heating circuit 1
...
19 K
N Heating circuit 1
T1
T2
Y
Heating circuit 1
00:00 Heating circuit 1
...
23:59
0 K Heating circuit 1
...
19 K
N Heating circuit 1
T1
T2
Y
