Page 1 TE 6-A36 Bedienungsanleitung Operating instructions Használati utasítás Instrukcja obsługi Инструкция по зксплуатации Návod k obsluze Návod na obsluhu Upute za uporabu Navodila za uporabo Ръководство за обслужване Instrucţiuni de utilizare Kulllanma Talimatı Інструкція з експлуатації Printed: 22.02.2016 | Doc-Nr: PUB / 5257962 / 000 / 02...
Page 2 Printed: 22.02.2016 | Doc-Nr: PUB / 5257962 / 000 / 02...
Page 6: Table Of Contents
In these operating instructions, the designation “the power tool” always refers to the TE 6-A36-AVR(03) cord- Always keep these operating instructions to- less rotary hammer. gether with the power tool.
Page 7: Description

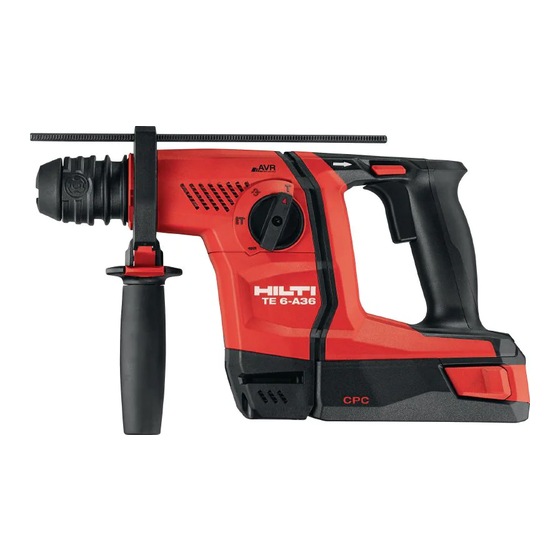

2 Description 2.1 Use of the product as directed The TE 6-A36-AVR(03) is a hand-held, cordless rotary hammer for driving or removing screws, drilling in steel, wood and masonry and hammer drilling in concrete and masonry. Use this product only with Hilti Li‑ion batteries of the B 36 series.
Page 8 Permanent lubrication (grease) 2.8 Items supplied as standard Power tool TE‑C CLICK chuck Side handle with depth gauge Operating instructions Hilti toolbox (optional) Cleaning cloth (optional) Grease (optional) 2.9 Li‑ion battery charge state LEDs light constantly LEDs blink Charge status C LED 1, 2, 3, 4 C ≧...
Page 9: Tools
3 Tools Designation Description Hammer drill bits ∅ 5…16 mm Anchor-setting tools C-type connection end Quick-release chuck for wood and metal drill bits With smooth shank, hexagonal shank Keyed chuck With smooth shank, hexagonal shank Wood drill bits ∅ 3…20 mm Wood drill bits (auger bits) ∅...
Page 10: Safety Instructions
5 Safety instructions NOTE not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A The safety rules in section 5.1 contain all general safety moment of inattention while operating power tools rules for electric tools which, in accordance with the may result in serious personal injury.
Page 11 Liquid ejec- of the type recommended by Hilti for wood dust ted from the battery may cause irritation or burns. and/or mineral dust together with this tool. Ensure that the workplace is well ventilated.
Page 12: Before Use
If the battery is too hot to touch it may be defective. Place the tool in a location where it can be kept under observation, well away from flammable ma- terials, and allow it to cool down. Contact Hilti Service after the battery has cooled down. 5.3.4 Electrical safety Before beginning work, check the working area (e.g.
Page 13: Operation
Pull the battery out of the power tool toward the For information about charging, read the operating in- rear. structions for the battery charger and section 2.10 “Li-ion battery charge status” of these operating instructions. Li-ion batteries are ready for use at any time, even when 6.5 Transport and storage of batteries only partly charged.
Page 14 7.1.4 Removing the chuck 8 For forward rotation, push the forward / reverse switch on the side of the power tool toward the chuck in the CAUTION direction of the arrow. Remove the depth gauge from the side handle and the For reverse rotation, push the forward / reverse switch on insert tool from the chuck in order to avoid injury.
Page 15: Care And Maintenance
Clean the sealing lip by wiping it Repairs to the electrical section of the power tool may carefully and then grease it again lightly with Hilti grease. be carried out only by trained electrical specialists. It is essential that the dust shield is replaced if the sealing lip is found to be damaged.
Page 16: Troubleshooting
Switch the power tool off immedi- gets very hot. ately, remove the battery from the tool and allow it to cool down while keeping an eye on it, contact Hilti Service. The power tool has been overloaded Use the right power tool for the job (application limits exceeded).
Page 17: Disposal
Batteries that have reached the end of their life must be disposed of in accordance with national regulations or returned to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.
Page 18: Ec Declaration Of Conformity (Original)
12 EC declaration of conformity (original) Hilti Corporation, Feldkircherstrasse 100, Designation: Cordless rotary hammer FL‑9494 Schaan Type: TE 6-A36‑AVR Generation: Year of design: 2009 We declare, on our sole responsibility, that this Paolo Luccini Tassilo Deinzer product complies with the following directives and...
Page 19 Hilti Corporation LI-9494 Schaan Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan Pos. 8 | 20160121 Printed: 22.02.2016 | Doc-Nr: PUB / 5257962 / 000 / 02...
