SPEkTRUM DX4E 4-CHANNEL DSM FULL RANGE
TRANSMITTER
The Spektrum DX4e 4-channel transmitter incorporates 2.4GHz DSM technology
offering full beyond-the-limits-of-sight range and is ideal for sport-sized electric
and glow-powered 4-channel or fewer airplanes. The DX4e employs DuaLink
technology. This technology is virtually immune to internal and external radio
interferences. No pins. No Glitches. With Spektrum DSM technology, when
you're ready to fly simply turn on, and go fly!

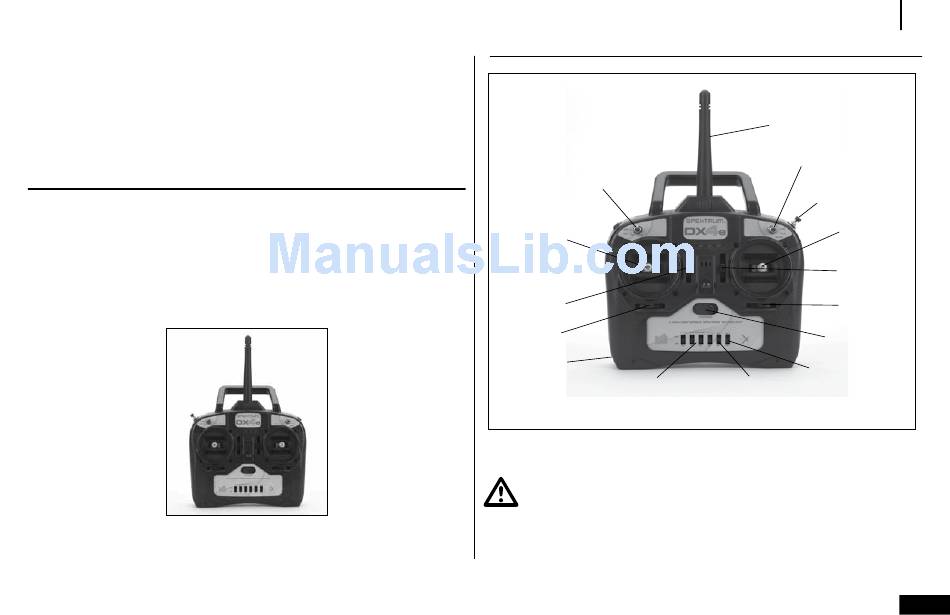

TRANSMITTER CONTROL IDENTIFICATION

LEDs
ACT/AUX Switch
Elevator and
®
Rudder Stick
Elevator Trim
Rudder Trim
Trainer Port
(on back)
Reversing Switches
WARNING: ENSURE FUTURE ANTENNA SAFETY:
Do not attempt to use the antenna to bear any weight, pick up the transmitter by
the antenna or alter the antenna in any way. If the transmitter antenna or related
components become damaged the output strength can be severely impeded
which will likely lead to a crash, injury and property damage.
Antenna
HI/LO Rate Switch
Trainer Button
Throttle and
Aileron Stick
Throttle Trim
Aileron Trim
On/Off Switch
Mode Switch
Mix Switch
Mode 1
5
