Summary of Contents for Spektrum DX20

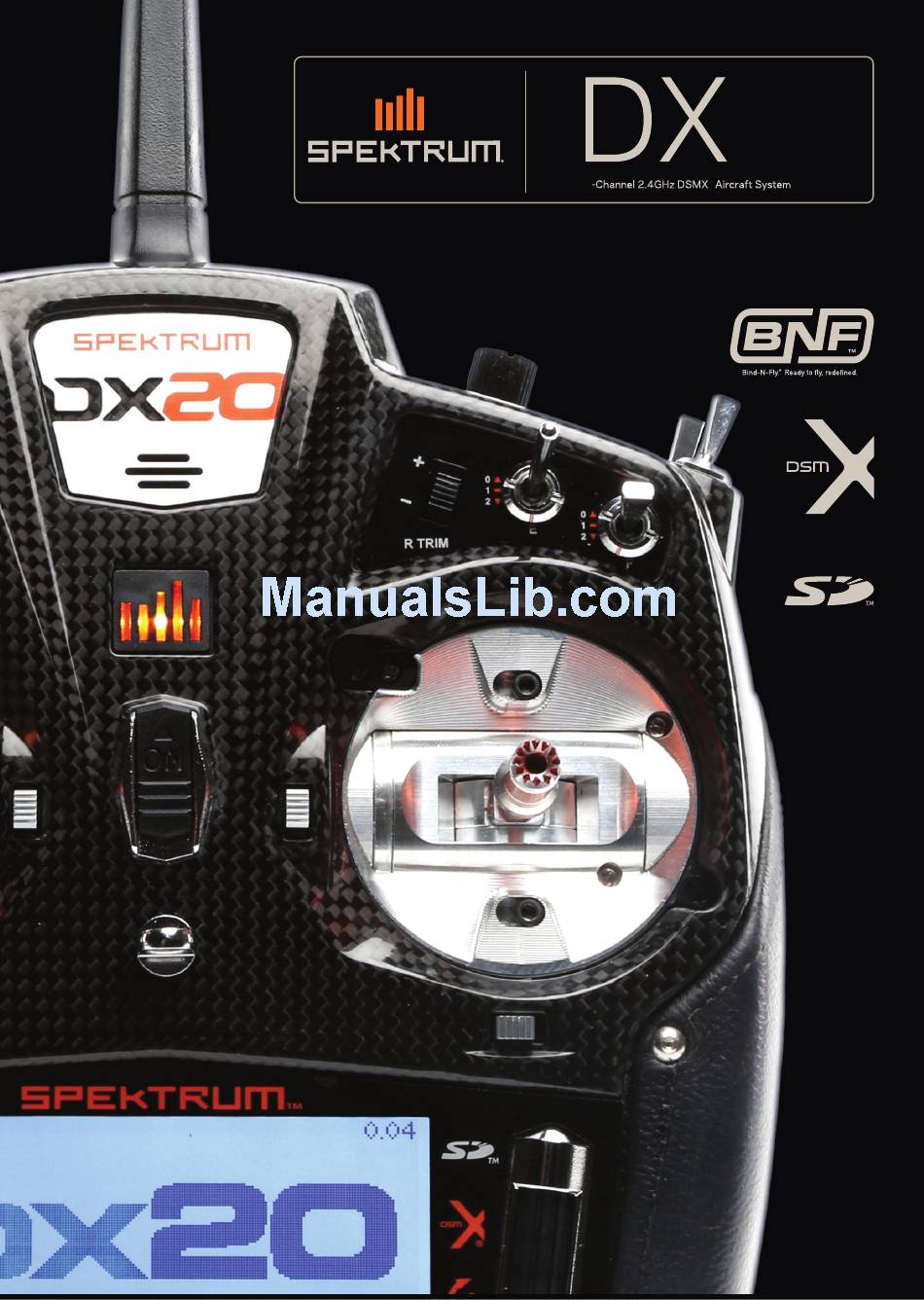

  • Page 1 ® Instruction Manual/Bedienungsanleitung/ Manuel d’utilisation/ Manuale di Istruzioni/ Manual de instrucciones ®...
  • Page 2: General Notes

    WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

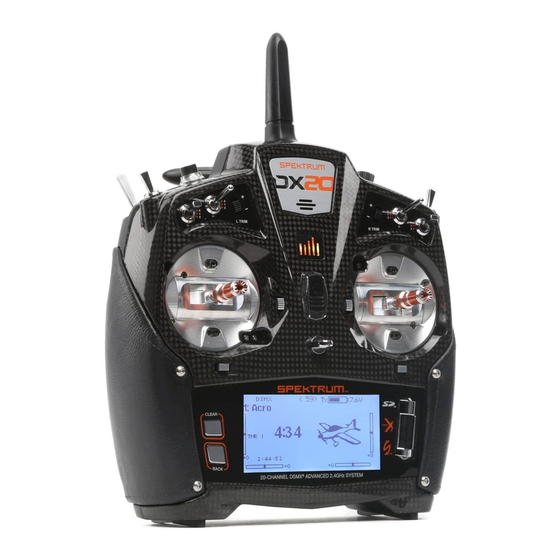

  • Page 3 • DX20 Transmitter • 4000mAh LiPo Transmitter Pack (Installed in transmitter) • Global Power Supply • Manual • DX20 Neck Strap • DX20 Decal Sheet Support Videos: For helpful videos on programing the Spektrum DX20 and other AirWare equiped Spektrum Transmitters go to https://www.spektrumrc.com/ SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 4: Table Of Contents

    Calibration ..................54 Import Model ...................32 Ratcheted Throttle ................55 Export Model ...................32 Control Stick Length Adjustment ............55 Updating Spektrum DX20 Sound Files ..........33 Troubleshooting Guide ..............56 Update AirWare Software ..............33 1-Year Limited Warranty ..............57 Screen Print ..................33 Warranty and Service Contact Information ........58 Function List ...................34...
  • Page 5: Battery And Charging Precautions And Warnings

    • Always end the charging process if the charger or battery becomes hot to the touch or starts to change form (swell) during the charge process CHARGING YOUR TRANSMITTER The DX20 has an internal charger designed to charge the included Battery Alarm 2-cell LiPo battery at a charge rate of 200mAh. The charge port on The System Settings Screen allows you to change the battery the back of the transmitter is not polarity-dependent.
  • Page 6: Transmitter Functions

    Throttle/Aileron Stick (Mode 1) Left Trim Elevator/Aileron Stick (Mode 2) Adjustment (Mode 2,4) Elevator Trim (Mode 1,3) Throttle/Rudder Stick (Mode 3) Adjustment (Mode 2,4) Throttle Trim (Mode 2,4) Elevator/Rudder Stick (Mode 4) Speaker Grill Gimbal Centering Screw SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 7 The transmitter comes with a thin, clear plastic film applied to some front panels for protection during shipping. Humidity and use may cause this film to come off. Carefully remove this film as desired. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 8: Main Screen

    To select a switch, toggle the switch you wish to select. Verify the switch selection is now displayed as desired. When correct, press the scroll wheel to select this switch and complete the switch selection. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 9: Sd Card

    4. Once logged in go to the “My Spektrum” page. Fill out all relevant information. Once you select your transmitter model To export the serial number: from the pull down menu you will be asked to upload the serial 1. Press and hold the scroll wheel while powering the...
  • Page 10: Update Airware™ Software

    SD CARD Update AirWare™ Software NOTICE: The orange LED Spektrum bars flash and a status 3. Eject SD card from the computer. bar appears on the screen when AirWare software updates are 4. Make sure the transmitter is powered off and install the SD card installing.
  • Page 11: Binding

    4. Connect the battery to ESC and turn on the ESC switch, 7. Remove the bind plug from the receiver. if available. The receiver’s LED will flash rapidly when the receiver is ready to bind. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 12: Programming Failsafe Positions

    2. Remove the bind plug when the orange LED on the main receiver and all attached remote receivers flash rapidly. The IMPORTANT: Not all receivers support Preset Failsafe. Consult your orange receiver LEDs will continue flashing. receiver manual for more information. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 13: Specifications

    • The switch harness, battery leads, servo leads, regulators, etc. Pack The X-Plus 8 module has a minimum operational voltage of 3.5 Jumper (optional) volts; it is highly recommended that the power system be tested per the guidelines. CAUTION: Only use the included Jumpers with the X-Plus 8 module. Do not use Bind Plugs for the Jumpers. On/Off Switch Harness (optional) X+8 Servo X+9 Servo SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 14 1. Open the Frame Rate Menu in System Setup. 2. Scroll to X-Plus and press the scroll wheel to activate. The X- Plus Inputs screen is now active in the Channel Assign menu. If you select 11ms frame rate before you activate X-Plus, the transmitter reverts to 22ms frame rate when X-Plus is active. CAUTION: Do NOT connect throttle or any primary control surface to the X-Plus Module. The X-Plus chan- nels are intended to be used for auxiliary functions only. X-Plus channels have a resolution of 512 and variable latency from 22ms to about 88ms. When X-Plus is active, the first 10 chan- from Channel Assign menu nels default to 22ms. Refer to community.spektrumrc.com for more information about X-Plus options. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 15: Model Type Programming Guide

    Transfer SD Card Transfer SD Card System Setup List: Function List: Model Select Servo Setup Model Type D/R and Expo SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL Model Name Throttle Cut Aircraft Type Throttle Curve F-Mode Setup Pitch Curve Spoken Flight Mode...
  • Page 16: System Setup

    1. Scroll to the desired model type and press the scroll wheel. The Confirm Model Type screen appears. 2. Select Yes and press the scroll wheel to confirm the model type. All data will be reset. Selecting No will exit the Confirm Model Type screen and return to the Model Type screen. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 17: Model Name

    Aircraft Flight Mode Setup You can assign up to 5 flight modes using any combination of up to two switches. You can also assign a priority switch. When the priority switch position is active, only the current flight mode is active, regardless of other switch positions. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 18 Flight Mode Cruise Cruise Cruise Cruise Cruise Cruise Flight Mode Land Land Land Flight Mode Flight Mode Thermal Thermal Thermal Thermal Speed Speed Flight Mode *Must be set up in a 4/5 flight mode SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 19: Spoken Flight Mode Setup

    1. Select NEXT on the RX Port Assignments screen to access the Channel Input Configuration screen. 2. Scroll to the transmitter channel you wish to re-assign and press the scroll wheel. The box around the current input selection flashes. 3. Scroll left or right to select the desired control stick or switch. 4. Press the scroll wheel to save the selection. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 20 Common trim type maintains the same trim values for all flight modes. F Mode trim type enables you to save trim values for individual flight modes if you find, for example, the aircraft requires aileron trim in Flight Mode 1 but not in Flight Mode 2. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 21: Model Utilities

    SD Card, please see “Transfer SD Card” section on page 9. IMPORTANT: Copying a model program from one model memory to another will erase any programming in the “To” model memory. To copy model programming: SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 22: Model Reset

    1 and 99. An alarm can be put on a servo position that is within a certain range of center, or outside a certain range around center. • When adding channel position warnings, you can now enter positions of up to 150% rather than the previous limit of 100%. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 23: Telemetry

    Installing the optional telemetry module and sensors enables the You can also enable Data Logging to save a telemetry file on display of aircraft performance data on the transmitter screen. the SD Card and view the data in the Spektrum STi mobile application.
  • Page 24: Telemetry Alarms

    Bind Progress Dx20 compatibility Mode Select NEXT to move to the Bind Progress screen. Select to Inhibit Set DX20 compatibility to Act only if you are importing models or activate voice alerts for Binding, Bind Type, Telemetry and Bind created on or for a DX20. The DX20 compatibility mode changes Failed.
  • Page 25: Bind

    The transmitter assigns the trainer function to Switch I. Wired Trainer  The 4 wired trainer modes include: Slave Use Slave mode when using the DX20 as a slave transmitter and Inhibit Pilot Link is active in the master transmitter. In Inhibit, the slave transmitter must have the same programming as the master transmitter (e.g., servo reversing, travel adjust, sub-trim, trims).
  • Page 26: Wireless Trainer

    2. Move the trainer switch to the ON position to activate the slave such as flight modes, retracts, flaps and brakes. transmitter. Secondary functions can be individually assigned to the Slave transmitter as necessary. It is not necessary to have model programming in the slave transmitter. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 27: Trainer Fpv Mode

    Channel: Inhibit on the bottom of the screen and press desired. the roller. This will take you to the Channel Input Config screen to assign a channel to a switch. 7. Repeat 2 through 6 for all switches desired. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 28: System Setup

    To adjust the screen contrast: 1. Scroll to Contrast and press the scroll wheel. 2. Scroll left or right to adjust the contrast value. Lower numbers lighten the contrast, higher numbers darken it. 3. Press the scroll wheel once to save the selection. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 29: System Setup

    2. Scroll left or right to change the alarm time. Press the scroll transmitter battery completely discharges. wheel to save the selection. The inactive Alarm options are: • Inh (No alarm • 5 min • 30 min sounds) • 10 min (Default) • 60 min SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 30: Extra Settings

    2. Roll left or right to select input (Left lever, Right Lever or Right Knob). System Warnings: Select NEXT from the Voice Volume Control screen to enter the System Warning screen. The System Warnings screen enables you to: • Set Inactivity Alarm– Inh, Tone, Voice • Set Low Voltage Alarm– Inh, Tone, Voice • TEST SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 31: System Setup

    NEXT at the bottom of the Serial Number screen. Register serial number and you cannot transfer AirWare files between your DX20 to get AirWare software updates and other news at transmitters, ie., downloading an AirWare software update once spektrumrc.com and attempting to install it on multiple transmitters.
  • Page 32: Transfer Sd Card

    Assign a new file name. The file name can contain up to 25 characters including the .SPM file extension. c. When you are done assigning the new file name, press the Back button to return to the Export to SD screen. 5. Select Export to save the file to the SD Card. When the export is complete, the transmitter returns to the SD Card Menu screen. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 33: Updating Spektrum Dx20 Sound Files

    6. The Transfer SD Card screen reappears when the file transfer is complete. You have the option of installing new sound files in the DX20 transmitter. Before updating the sound files, make sure the transmitter battery is fully charged.
  • Page 34: Function List

    This change is throughout the multirotor menu options.  Sub-Trim Sub-Trim adjusts the servo travel center point. CAUTION Use only small sub-trim values or you may cause damage to the servo. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 35: Reverse

    You can also use the Balance menu option to match throttle response on twin engine aircraft or level the swashplate on a helicopter. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 36: D/R & Exponential

    To remove points from a Throttle Curve: 1. Move the Throttle stick until the cursor is near the point you wish to remove. 2. Scroll to Remove Pt. and press the scroll wheel once to remove Tip: This menu item is called Motor Curve when Multicopter the point. type is selected. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 37 Only available in Helicopter Type. See HELi (Helicopter) section for set up.  Tail Curve  Only available in Helicopter Type. See HELi (Helicopter) section for set up. Motor Cut Only available in Multicopter Type. See MULTi (Multicopter) section for set up.  Motor Curve Only available in Multicopter Type. See MULTi (Multicopter) section for set up.  SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 38: Mixing

     Assigning a Mix to a Switch if you wish to assign a mix to a switch position: 1. Make sure you are in the desired mix screen. 2. Move the switch you want to assign the mix to. 3. Scroll to the switch position where you want the mix to be active. 4. Press the scroll wheel to activate the mix. When the box is filled, the mix is active. The mix is Active when the box is filled and Inactive when the box is open. You can assign a mix to be active in multiple switch positions (0,1 or 2). CAUTION: Always do a Control Test of your model after changing mixes. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 39: Combo Mixing

     Origin Mixing Origin Mixing uses true stick position as the input for a mix. When origin mixing is selected, any other settings to the master channel will be ignored and the mix will be based strictly on stick position and trim position. When Aileron, Elevator, or Rudder are selected as the master, origin mixing is available. Once Aileron, Elevator, or Rudder are selected, an N will appear next to the master channel, where N means normal. Roll and select the N to change to O for origin mixing. Next, select the slave channel and set the switch and mix rates as desired. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 40: Sequencer

    Refer to the Monitor screen to see how respective channels When S1B (or another sequence-number-B) is selected as a interact in the Sequencer. switch in a function, the sequence will operate as a timed 3-posi- tion switch. The 3 positions act as ‘kick points’ of the movement at fixed percentages (equal thirds) of the sequencer output. In a function screen, highlight each point (0–2) and select the switch position desired for a function to be active. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 41: Protrim

    5. If performing a range test while a telemetry module is active, the display will show flight log data. Timer The DX20 Timer function allows you to name and program a countdown timer or stop watch (count up timer) to display on the main screen. An alarm sounds when the programmed time is reached. You can program the timer to start using the assigned switch position or automatically when throttle is raised above a programmed position.
  • Page 42: Timer Event And Timer Control Alerts

    A variety of alerts can be chosen from the list, including telemetry alerts and a variety of flight conditions and commands. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 43: System Setup

    See the “Channel Monitor” section on page 31 for more information. x-Plus Monitor Use of the X-Plus Monitor requires X-Plus to be active. The X-Plus Monitor screen displays the output position for each X-Plus chan- nel graphically and numerically. This is useful to verify program- ming functions, trim settings, mix directions, etc. The numeric value is directly relative to the travel adjust and mix values (e.g., 100% travel adjust equals 100% value in the X-Plus Monitor). The X-Plus Monitor shows the additional channels and requires servos which can be connected to the optional X-Plus module and an X-Plus-capable receiver. CAUTION: Do NOT connect throttle or any primary control sur f ace to the X-Plus Module. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 44: Recommended Servo Connections

    Diagrams and setup names show on the transmitter screen to show the available setups. Refer to spektrumrc.com for more information about new DX20 AirWare software updates to support these options. Select wing and tail types before doing any other programming.
  • Page 45: Acro (Airplane)

    ACRO Mixing Rudder to Aileron/Elevator Elevator to Flap Rudder to Aileron/Elevator mixing corrects coupling in knife edge Elevator to Flap mixing enables Flap movement when the Elevator flight. stick moves. Use Elevator to Flap mixing to add the spoileron function to 3D aerobatic aircraft. This mix is available when a flap • Add Elevator mixing if the aircraft pitches toward the landing gear or dual aileron wing type is selected. or canopy • Add Aileron mixing if the aircraft rolls in knife edge flight Aileron to Rudder Use Aileron to Rudder mixing to overcome adverse yaw characteristics with certain types of aircraft (such as high-wing aircraft). SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 46: Acro Gyro Function

    2. In the Aircraft Type Screen, select NEXT at the bottom right of the screen. This will access the Aircraft Options screen. Acti- vate the Pitch Curve function. When the Pitch Curve function is activated, the Pitch Curve function appears in the Function List. 3. Assign the pitch channel in the Channel Assignment function after activating the Pitch Curve Function. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 47: Multi-Engine Control

    This will access the Aircraft Options screen. 3. Scroll to the image and click once. Roll the scroll wheel left or right for optional images. 4. Click on the image you wish to select. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 48: Heli (Helicopter)

    Roll the scroll wheel left or right for optional icons. Pitch Curve This function supports adjustment of collective pitch in 5 flight modes. To adjust the Pitch Curve: 1. Select the Pitch Curve you wish to edit (N, 1 or 2). 2. Scroll right to select the points on the curve and edit the respective values. 3. Press the BACK button to save the Pitch Curves and return to the Function List. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 49: Swashplate

    Move the programmed cyclic or rudder channel, noting the throttle position. The throttle position should increase. correctly, the Swashplate causes the helicopter to roll and pitch accurately with minimal interaction. If the throttle decreases, then the opposite value (positive vs. negative) is needed. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 50: Sail (Sailplane)

    Use the Sailplane Type Screen to select wing and tail types to match your sailplane model. Diagrams and setup names show on the transmitter screen to show the available setups. Refer to spektrumrc.com for more information about new DX20 AirWare updates to support these options. Wing Tail • 1 Servo • Normal...
  • Page 51: Sail Mixing

    3. Scroll to Diff: and press the scroll wheel once to change the value. control surface. 4. Press the scroll wheel again to save the selection. The V-Tail Differential menu option only appears when V-Tail A or V-Tail B is active in Aircraft Type. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 52: Multi (Multirotor)

    Assign Menu in System Setup. Trim Setup By default Trims are setup for F Mode. F Mode trim type enables you to save trim values for individual flight modes if you find, for example, the aircraft requires Roll trim in Flight Mode 1 but not in Flight Mode 2. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 53: D/R & Exponential

    If you program multiple throttle curves and you wish to edit one of the curves, that curve must be active in the Motor Curve screen before you can make any changes. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 54: Physical Transmitter Adjustments

    PHYSICAL TRANSMITTER ADjUSTMENTS The DX20 has all the physical transmitter adjustments located around the gimbal face of each gimbal. This arrangement allows for quick and easy adjustments with out taking the back cover off or removing any plugs to access adjustment screws or wedges.
  • Page 55: Ratcheted Throttle

    Horizontal Tension Throttle Strap Adjustment The Gimbals on the DX20 can be configured with smooth tension on the stick or for a ratcheted throttle. Smooth Throttle Tension 1. Locate the Throttle Strap adjustment screws on the throttle gimbal.
  • Page 56: Troubleshooting Guide

    Flight battery/Transmitter battery charge is Replace/recharge batteries too low Transmitter is a DX20 EU version and receiver The DX20 EU version is not compatible with is DSM2 DSM2 receivers Move powered transmitter a few feet from...
  • Page 57: 1-Year Limited Warranty

    Once assembly, setup or use of the compliant Product for a period of 60 days from notification, Product has been started, you must contact your local distributor after which it will be discarded. or Horizon directly. This will enable Horizon to better answer your 10-15 SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 58: Warranty And Service Contact Information

    FCC INFORMATION Antenna Separation Distance This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: When operating your Spektrum transmitter, please be sure to 1. This device may not cause harmful interference. maintain a separation distance of at least 5 cm between your body (excluding fingers, hands, wrists, ankles and feet) and the antenna 2. This device must accept any interference received, including to meet RF exposure safety requirements as determined by FCC interference that may cause undesired operation.
  • Page 59: Compliance Information For The European Union

    For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. SPEKTRUM DX20 • TRANSMITTER INSTRUCTION MANUAL...
  • Page 60 DSM, DSM2, DSMX, the DSMX logo, the BNF logo, AirWare, ModelMatch, X-Plus, AS3X, SmartSafe, Hangar 9 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. The SD Logo is a trademark of SD-3C, LLC US 7,391,320.
