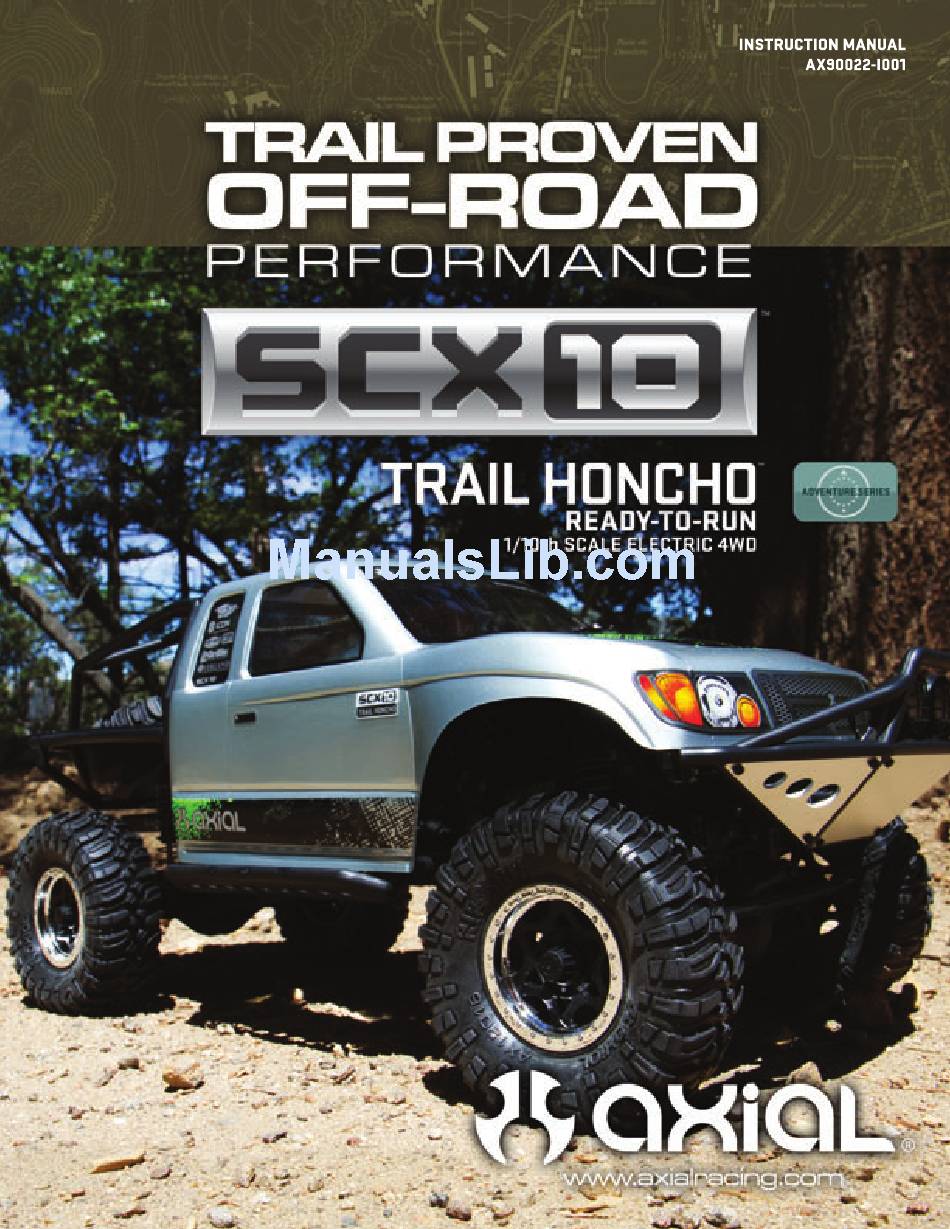

Axial SCX10 Instruction Manual
  1. Manuals
  2. Brands
  3. Axial Manuals
  4. Motorized Toy Car
  5. SCX10 Dingo
  6. Instruction manual

Axial SCX10 Instruction Manual

Hide thumbs Also See for SCX10:

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCX10 and is the answer not in the manual?

Questions and answers

Related Manuals for Axial SCX10

Summary of Contents for Axial SCX10

  • Page 5 BIND ST-TRIM TH-TRIM ST-D/R...
  • Page 6 Install the battery Removing the Body Put back the Body. Put the battery in the car. Turn on the transmitter. Turn on the electronic speed controller.
  • Page 8 AX30420 Diff Gasket 16x25x0.5mm Solid Axle Dogbone 6x74mm AX30421 Solid Axle Dogbone 6x104.5mm AX30450 Flange Pipe 3x4.5x5.5 AX30499 5x6.9x4.8 AX30392 38T Bevel Gear AX30393 13T Bevel Gear AX30491 AX30578 Pinion 48DP 20T AX10 Scorpion Motor Plate AX30502 SCX10 Chassis Rail...
  • Page 9 AXA1179 AXA1290 M3x4x14mm Step Screw O-Ring 2.5x1.5mm AXA1218 Bearing 5x10x4mm AXA144 M3x8mmM3x8mm Hex Socket Flat Head AXA1221 Bearing 5x11x4mm AXA433 M3x6mm Hex Socket Tapping Button Head AXA1225 AXA434 AXA013 Bearing 8x16x5mm M2x6mm M3x8mm Hex Socket Tapping Button Head AXA015 M2x10mm AXA435 AXA1230 M3x10mm...
  • Page 10 AX80004 Transmission Set Hub Set AX80010 Gear Set AX80025 AX80078 Transmission Gear Cover AX80011 AX80017 AX 80025 SCX10 Shock Hoops Parts Tree AX80018 AX80011 Srive Shaft Set AX80041 AX80020 AX80020 Straight Axle Adapter Parts Tree AX80018 AX80041 AX80017 Hardware Parts Tree...
  • Page 12 AX80044 AX80049 1/10th Scale Tube Bumper Set LED Lens Set - Clear AX80054 SCX10 RTR Links Parts Tree (130mm) AX80043 AX80043 Links Parts Tree AX80046A AX30530 AX30531 Front Skid Plate(Tube Style Bumper) Left/Right Skid Plate (Tube Style Bumper ) AX80046A...
  • Page 14 AX30408 AXA1393 Input Shaft 5x28mm AX30163 Pin 2x10mm AXA1393 E2.5 e-clip AX30163 AX30393 AX30393 13T Bevel Gear AX30408 AX80002 AX30500 AX30500 AX30385 Heavy Duty Lovker AX30392 AXA015 AX30392 38T Bevel Gear AXA015 M2x10mm AXA1230 AXA1221 AX30420 AXA1230 Bearing 10x15x4mm AXA1221 AX30420 Eearing 5x11x4mm AXA1230...
  • Page 15 AXA1221 Bearing 5x11x4mm AXA085 M3x10mm If Gear mesh is tight, AXA087 make sure input shaft M3x16mm is seated correctly. AXA1040 M3 Thin Hex Nut AXA1221 AXA085 AX80003 AXA087 AXA1221 AX80003 AXA1040 AX80003 AX80018...
  • Page 16 AX80012 AXA433 M3x6mm AXA433 AX30495 Aluminum C Hub Carrier AXA433 Note Direction Richtung beachten AXA433 AXA433 AX80012 AX30450 Flange Pipe 3x4.5x5.5 AXA435 AX80004 M3x10mm AX30366 Note Direction D0 not overtighten AX1230 AXA435 AXA1221 Bearing 5x11x4mm AXA1221 AXA1230 Bearing 10x15x4mm Note Direction D0 not overtighten AX30366 AX30450...
  • Page 17 AX30408 AXA1393 Input Shaft 5x28mm AX30163 IPin 2x10mm AXA1393 E2.5 e-clip AX30163 AX30395 Heavy Duty Bevel Gear Set AX30393 AX30393 13T Bevel Gear AX30408 AX80002 AX30500 AX30500 AX30385 Heavy Duty Lovker AX30392 AXA015 AX30392 38T Bevel Gear AXA1230 AX30421 AX30385 AXA1221 Diff Gasket 16x25x0.5mm AXA015...
  • Page 18 AXA1221 Bearing 5x11x4mm AXA085 M3x10mm AXA087 M3x16mm AXA434 M3x8mm AXA1040 AXA085 M3 Thin Hex Nut AXA087 AXA1221 AX80003 AX80003 AXA1221 If Gear mesh is tight, make sure input shaft is seated correctly. AX80043 AXA434 AXA434...
  • Page 19 AX80020 AXA113 AXA113 M3x6mm Hex Socket Button Head AXA113 AXA113 AX30494 AXA113 Aluminun Straight Axle Adapter AX80020 AX30463 　　　　　　 Universal joint Axle Pin holder AX30463 AX30166 AX30784 Pin 1.5x11mm AX30785 AX30786 AXA144 AX30166 WB8 Driveshaft Retainer Rimg AX80084 AXA144 M3x8mm AX80084 AX30784 Drive shaft Coupler...
  • Page 20 AXA1392 E2 e-clip AXA1179 AX80030 O-Ring 2.5x1.5mm AX80029 AX80032 AXA1358 AX30117 Shock Damper 3x7x8 Aluminum Shock Body 10x38mm AX80032 AXA1179 AX30146 Shock Shaft 3x50mm AX80029 AXA1358 AXA1392 AX80018 AX80032 AX30146 AX30115 10mm Aluminum Preload Collar...
  • Page 21 AXA175 Screw Shaft M3x2.5x11mm AX80054 AXA440 AXA440 M3x25mm AX80043 AXA175 Screw Shaft M3x2.5x11mm AXA121 M3x30mm Hex SocketButton Head AXA1052 M3 Thin Nylon Locking Hex Nu AXA121 AX80043 AX80043 AX80054...
  • Page 22 AXA089 M3x25mm AXA1053 M3 Nylon Locking Hex Nut AX80043 AXA089 AXA1053 AXA1053 AXA089 AXA089 M3x25mm AXA1053 M3 Nylon Locking Hex Nut AX80054 AXA089 AXA1053 AXA1053 AXA089...
  • Page 23 AXA1218 AX80009 AX30435-001 Steel Outdrive Shaft AX80010 AX30190 AXA1218 AX30435-003 Steel Outdrive Shaft AXA1218 AXA013 M2x6mm AXA1225 AX30394 20T Drive Gear AX30162 AXA1218 AXA1225 Pin 1.5x8mm AX30435-001 AX30198 Drive gear Shaft 5x53.5 AX80010 AX30394 AX30435-003 AXA1218 Bearing 5x10x4mm AX30198 AXA013 AX30162 AXA1225 Bearing 8x16x5mm...
  • Page 24 AXA089 M3x25mm AX80078 AXA089 AX30491 AX30491 AX10 Scorpion Motor Plate AX30482 AX10 Scorpion Motor Plate AX30410 Inner Slipper Plate AX30411 Outer Slipper Plate AX30412 AXA1070 AX30411 AX30499 AXA1070 AX30672 AX30412 AXA083 Slipper Pad 27x8x1mm AX30162 AX30413 Spring 8.5x12 AX30162 Pin 1.5x8mm AX30499 5x6.9x4.8mm AX1045...
  • Page 25 AXA083 M3x6mm AXA1070 Washer 3x6x0.5mm AX30569 Pinion 48DP 20T AX80078 AXA180 M3x3mm AX80078 AXA466 M3x12mm AXA465 M3x10mm AX80026A AXA465 AXA466...
  • Page 26 AX80028 AXA434 M3x8mm AX80028 AX30485 AXA434 AXA434 AXA434 AXA434 AXA464 AXA466 AXA464 M3x8mm Hex Socket Tapping Flat Head AXA466 AXA466 M3x12mm Hex Socket Tapping Flat Head AXA113 M3x6mm AXA1070 Washer 3x6x0.5mm AXA1070 AXA113 AX80006...
  • Page 27 AXA1280 M3x10mm AXA1280 AXA1280 AX80017 AX80018 AX80018 AXA117 M3x15mm AXA436 AXA436 M3x12mm AX80017 AXA1053 M3 Nylon Locking Hex Nut AXA117 AXA1290 AXA1290 M3x41x4mm AXA1053 AXA1290 AX80017...
  • Page 28 AXA433 M3x6mm AXA464 M3x8mm AXA013 M2x6mm AXA464 AX80031 AXA464 AX80031 AX80025 AXA464 AXA464 AXA433 AXA433 AX80026B AX80026A AX80046E AXA433 AXA433...
  • Page 29 AX80025 AXA433 AXA464 AXA464 AX80046E AX80046E AXA013 AX80046E Not inculded AX30502 AXA013 AX80026B AX80025 AXA433 AX30502 AXA464 AXA464 AXA433 AX80025 AXA433 AXA464 AXA464...
  • Page 30 AXA119 AXA119 M3x20mm AXA087 AXA087 M3x16mm AX80041 AXA1053 M3 Nyion Lock Nut AXA175 AXA087 Screw Shaft M3x2.5x11mm AXA119 AX80041 AXA175 AXA1053 AXA087 AXA119 M3x20mm AXA119 AXA087 AX80041 M3x16mm AXA1053 M3 Nyion Lock Nut AXA175 Screw Shaft M3x2.5x11mm AXA087 AXA1053 AX80041 AXA119 AXA175...
  • Page 31 AXA438 M3x18mm AXA438 AX80032 AX80032 AXA438 AXA438 M3x18mm AXA438 AX80032 AX80032 AXA438...
  • Page 32 AXA464 AXA464 M3x8mm AXA464 AX80028 AXA464 AXA464 AX80028 AX80028 AX80028 AXA176 M3x2.5x13mm AXA176 AXA176 AX80041...
  • Page 33 AXA471 AXA463 M3x6mm AXA463 AX30483 AXA471 M3x30mm AXA471 AXA471 AX80027 AX80027 AX80027 AX80027...
  • Page 34 AXA013 M2x6mm AX80045A AXA435 Not inculd M3x10mm AX80045A AX80045B AX80049 AXA013 AXA013 AX80044 AXA435 AXA435 AXA013 M2x6mm AX30531 AX30531 AX30530 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013...
  • Page 35 AX4025 Axial Trail Honcho Truck Body-.040” uncut (Clear) Window Mask Mask *Not included Double side tape *Not included *Not included...
  • Page 36 AXA434 M3x8mm AXA434 AXA434 AX80046A AX80046D AXA434 AXA434 AX80046D AXA434 M3x8mm AX80046B AXA436 AXA436 M3x12mm AXA1260 M2.5x12mm AXA434 AXA434 AXA436 AX80046B AX80046B AXA436 AXA436 AX80046C AXA1260 AX80046B AXA1260...
  • Page 37 AXA013 AXA013 M2x6mm AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 AXA013 M2x6mm AXA013 AXA013 AX80046A...
  • Page 38 AXA433 M3x6mm AX80046C AXA435 M3x10mm AXA089 M3x25mm AXA089 AXA435 AXA435 AXA433 AXA1179 AXA1179 AXA468 M3x18mm AXA469 M3x20mm AXA469 AXA469 AXA1179 O-Ring 2.5x1.5mm AX80046E AX80046E AXA468 AXA468 AX80046E AXA468 AXA468 AX80046E AX80046E AX80046E...
  • Page 39 AXA176 M3x2.5x13mm AXA176 AXA176 AX12016 1147-53 AX8138 AX8138 1147-53 AX12016...
  • Page 40 AXA1053 M3 Nyion Lock Nut AXA1053 AX80046E AXA180 M3x3mm AX30163 Pin 2.0x10 AXA180 AXA1045 M4 Nylon Lock Nut AX30427 AX30163 AX30427 12mm Aluminum Hub AXA1045 AX8088...
  • Page 42 AX80041 AXA176 AXA433 AXA433 AXA464 AXA176 AXA464 AX80041 AX80041 AXA433 AXA083 AXA464 AXA433 AX80078 AXA464 AXA083 AX30578 AXA433 AX30499 AX30410 AX30410 AX80026B AXA013 AX80046E AX80078 AX80046E AX80078 AXA0414 AXA466 AXA0414 AXA466 AXA465 AXA0414 AXA465...
  • Page 43 AX80045B AX30531 AX80045A AX80045A AXA013 AX30530 AXA013 AXA463 AXA013 AX30531 AX80044 AXA013 AXA471 AXA013 AXA471 AXA435 AXA471 AXA435 AX80046E AXA80027 AXA80027 AXA176 AXA80027 AXA175 AXA176 AXA0027 AX30463 AX30784 AX30785 AX30166 AX80084 AX80084 AXA144 AXA144 AX30463 AX30784 AX80084 AX30435-001 AXA175 AX80084 AX30166 AX30785 AX30435-003...
  • Page 44 AXA438 AX80032 AXA087 AX80054 AXA119 AXA438 AXA087 AX80043 AX80032 AXA119 AX80054 AX80018 AXA440 AX80025 AX80043 AX80025 AXA435 AX30427 AXA466 AXA466 AXA465 AX80003 AXA180 AX30450 AX80018 AXA433 AX80004 AXA435 AXA434 AX30408 AXA434 AXA433 AX30450 AX30393 AX30385 AX30450 AXA436 AXA433 AXA1070 AXA113 AXA085 AXA1290 AXA435...
  • Page 45 AX434 AX80043 AX30427 AX434 AXA113 AXA180 AXA113 AXA086 AX30393 AX30408 AXA113 AXA180 AX80043 AXA113 AX30427 AX80043 AX80032 AXA438 AX80054 AXA087 AXA087 AX80043 AX80032 AX8138 1147-53 AXA438 AXA1053 AX12016 AX80018 AXA180 AX30427...
  • Page 46 AXA149 AX30545 AX30545 AX30546 AXA1053 AXA1053 AX30546 AXA149...

  • Page 47: Installation

    AX30222 AX30222 Spring 14x70mm 3.55 lbs-in- Super Firm Spring 14x70mm 3.55 lbs-in- Super Firm Shock Tuning / Stossdämpferabstimmung Standard Pistons Standard Pistons Provides the same dampening rate on both compression and extension Provides the same dampening rate on both compression and extension Less Less Soft...

  • Page 48: Option Parts

    AX30784 WB8 Driveshaft Coupler Set AXA463 M3x6mm Hex Socket Tapping Flat Head (Black) (10pcs) AX4025 Axial Trail Honcho Truck Body - .040" uncut (Clear) w/Molded Rear Cage AXA464 M3x8mm Hex Socket Tapping Flat Head (Black) (10pcs) AX80002 Di Case -Small...
