3. Getting to Know Your MultiView HD

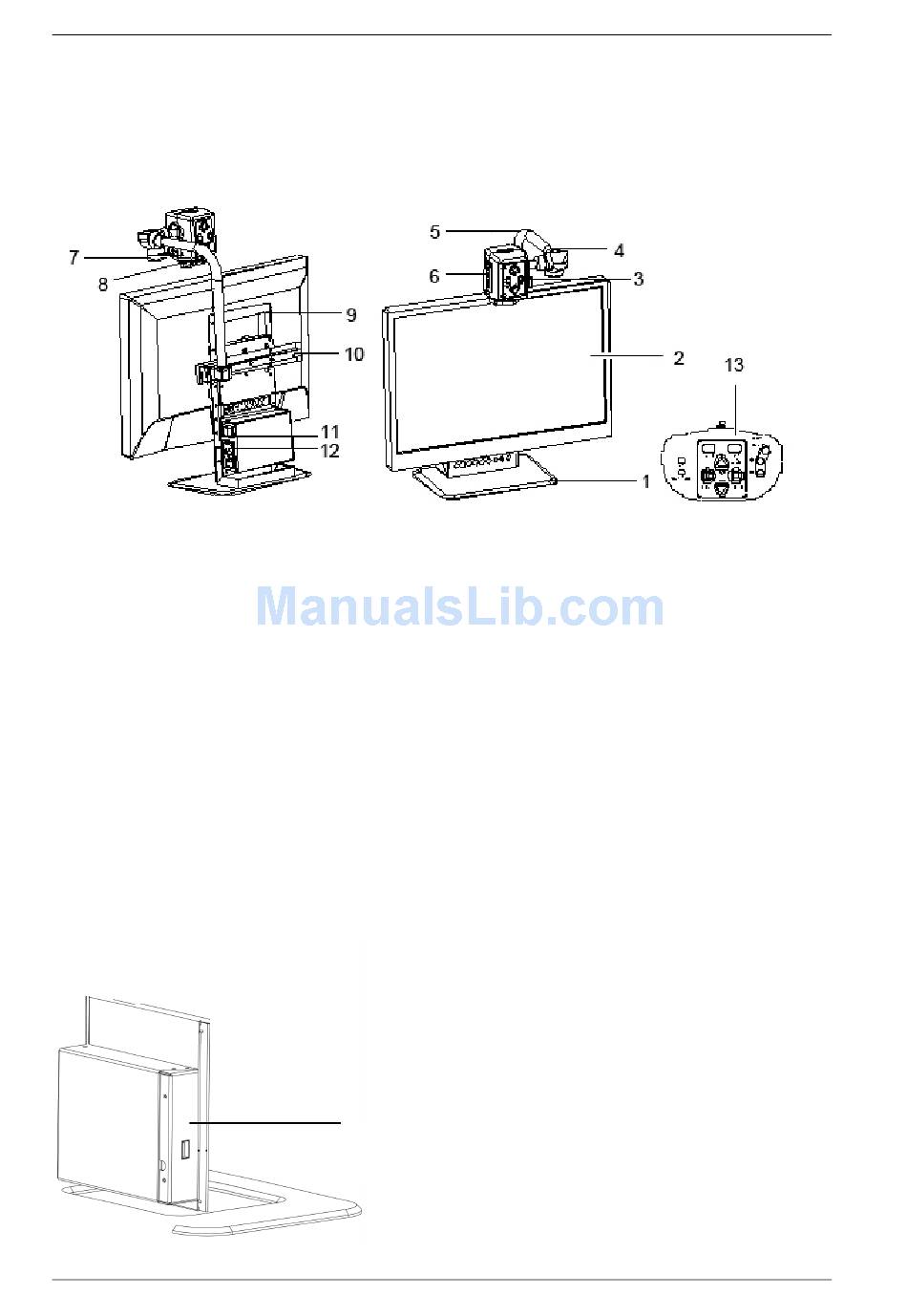

The following figure shows the MultiView HD's main components.
1. Base stand
2. 22" / 24" wide screen display
3. LED On/Off button
4. Camera arm
5. Camera Rotation Axes
6. Camera head
7. LED light

Setting up the MultiView HD

To set up the MultiView HD, please follow the steps described below:
− Connect the control pad in the USB port located on the left side of the
base stand.
− Connect the power cable in the power connector located on the right
side of the base stand.
− Plug the other end of the power cable into an electrical power outlet.
English
8. Close-up lens
9. Handle
10. Arm Slide
11. Power On/Off
12. Power socket
13. Control Pad
Control Pad USB Interface
MultiView HD
