CEILING SPEAKER SYSTEM

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .......................... 2
2. GENERAL DESCRIPTION ........................ 3
3. FEATURES ................................................ 3
5. INSTALLATION ......................................... 4
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
INSTRUCTION MANUAL
FOR MAINTENANCE ................................. 6
7. REPAINTING THE SPEAKER .................... 7
8. SPECIFICATIONS ...................................... 8
Accessories ................................................. 8
Optional Component ................................... 8
F-2352SC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-2352SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa F-2352SC

Summary of Contents for Toa F-2352SC

  • Page 1: Table Of Contents

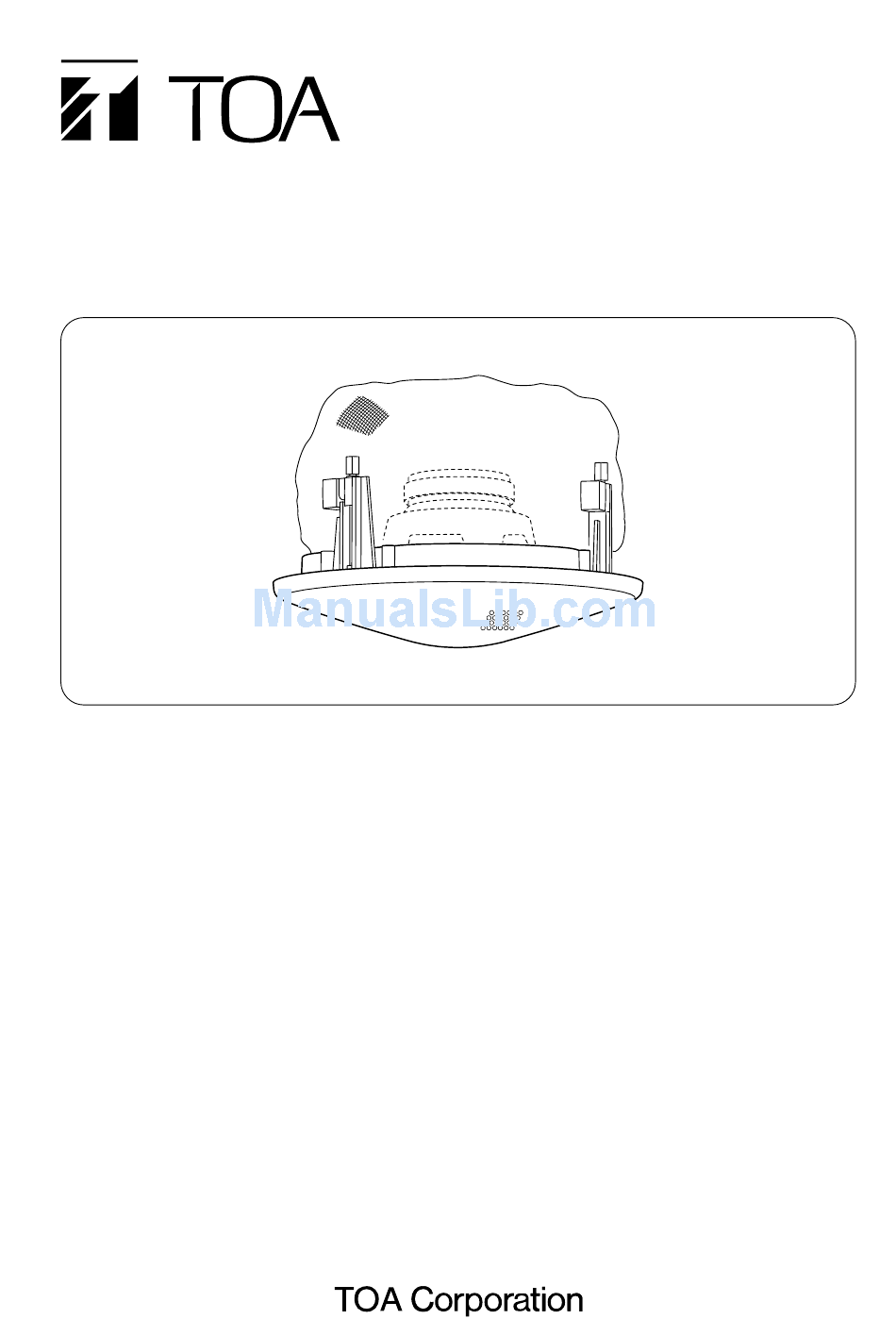

    INSTRUCTION MANUAL CEILING SPEAKER SYSTEM F-2352SC TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ......2 6. REMOVING THE SPEAKER FOR MAINTENANCE ......... 6 2. GENERAL DESCRIPTION ......3 7. REPAINTING THE SPEAKER ....7 3. FEATURES ..........3 8. SPECIFICATIONS ........8 4.

  • Page 2: Safety Precautions

    TOA dealer. Further attempt to use under this condition may cause fire or • Leave the installation to your TOA dealer because electric shock. the installation requires expert knowledge. · If you detect smoke or a strange smell coming...

  • Page 3: General Description

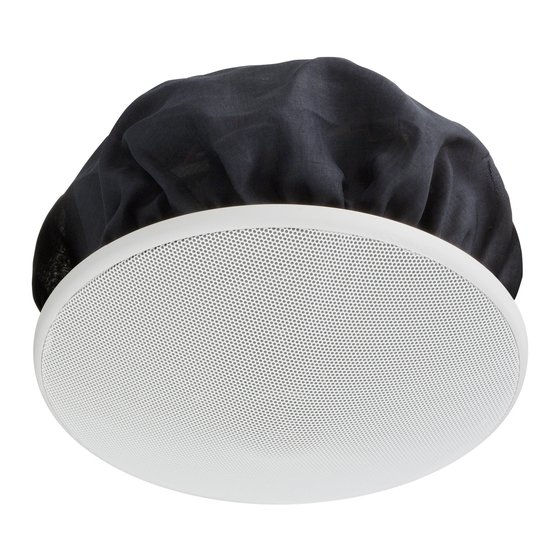

    2. GENERAL DESCRIPTION The F-2352SC is a 2-way, flush-mounted ceiling speaker that offers a wide frequency range and high-quality sound output. Use of optional mounting hardware permits versatile mounting to match a wide range of applications and installation locations. 3. FEATURES •...

  • Page 4: Installation

    A dust cover is pre-mounted on the rear of the speaker at the factory. Pay attention not to accidentally take it off during speaker installation. The F-2352SC ceiling speaker can be mounted in 2 different configurations: • Direct mounting to a ceiling panel •...
  • Page 5 3-1. Direct mounting to a ceiling panel Insert the speaker through the mounting hole till it contacts the ceiling panel. While doing so, avoid directly touching the speaker's diaphragm and diffuser section. Mounting hole WARNING Never grab the diffuser section as a hand hold.

  • Page 6: Removing The Speaker For Maintenance

    Step 4. Set the input power. Turn the input selector switch (on the unit's front) to set it to the desired input impedance. (Factory-preset to 1.7 kΩ.) Important Never set this switch to low-impedance (8 Ω or 16 Ω) settings when using a high-impedance 25, 70, or 100 V line.

  • Page 7: Repainting The Speaker

    6.2. Removing the Speaker Rotate the 3 mounting tab axis screws counterclockwise. The mounting tabs rise as they turn, allowing the speaker to be removed. Caution When loosening the mounting tab axis screws, support the speaker by hand to prevent it from falling. Screw cap Mounting tab Mounting tab axis screw...

  • Page 8: Specifications

    8. SPECIFICATIONS Rated Input 6 W (High Impedance) Continuous pink noise: 9 W (8 Ω), 6 W (16 Ω) Power Handling Capacity 18 W (8 Ω), 12 W (16 Ω) Continuous program: Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 20 kΩ (0.5 W) 830 Ω...
