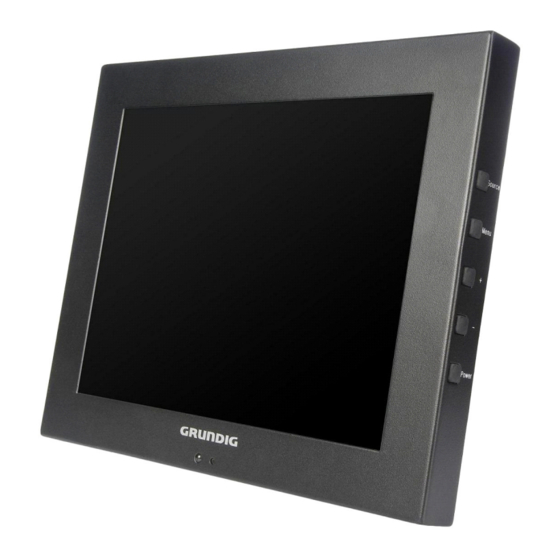

- Page 1 Owner´s Manual Monitors GMT-1031P 10.4" LCD/TFT Monitor GMT-1031P.3.3.07.06.2011 © ASP AG...
-
Page 3: Table Of Contents
Content: 1. Important Safety Instructions 2. Installation 3. Package Contents 4. Viewing the Control Panels 5. Side View with Connections 6. OSD Menu Configurations 1. AV Mode 2. VGA Mode 1. Important Safety Instructions Do not insert sharp objects or spill liquid into the monitor through the ventilation holes. This may cause fire, electric shock or failure. -
Page 4: Package Contents
Disconnect the power plug from the power outlet under following conditions: - If you will not use it for an indefinite period of time. - When the power cord or plug is damaged or frayed. - If the product has been dropped or the cabinet has been damaged. - If the product exhibits a distinct change in performance, this indicates a need for service. -
Page 5: Osd Menu Configurations
6. OSD Menu Configurations 1. Press the MENU button to see the menu. 2. Press the MENU button again to select the sub menus. 3. Press + / - to adjust the settings. 4. Press the Source button to return to previous menu. 6.1. -
Page 6: Vga Mode
Language : Select a preferred language from those listed. Reset : Resets the control functions back to the original factory preset values. 6.2. VGA Mode Colour Setting : Here you can configure different colour features. Image Setting : Here you can configure the image settings. - Page 7 Clock : Adjusts the clock settings of the monitor. Phase : Adjusts the phase of the VGA signal. H. Position : Moves image horizontally on screen, either left (-) or right (+). V. Position : Moves image vertically on screen, either up (-) or down (+). Auto Adjust : Performs automatic configuration of the Phase, Clock, Vertical Position and Horizontal Position.
- Page 8 Language : Select a preferred language from those listed. Reset : Resets the control functions back to the original factory preset values. English...
- Page 9 Specifications GMT-1031P Resolution 640 x 480 pixel Video Standard PAL/NTSC Pixel Pitch 0.33 mm(H) x 0.33 mm(V) Video Inputs 1 CH Composite, BNC, Looped / 1 CH VGA Brightness 350 cd/m² Response Time 15/30 ms (tr/tf) Viewing Angle 70°(L)70°(R)40°(T)70°(B) Contrast ratio...
-
Page 10: Ec Declaration Of Conformity
EC Declaration of Conformity GMT-1031P 10.4" LCD/TFT Monitor It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC Applied harmonised standards and technical specifications: EN 55022: 2006 + A1: 2007...
