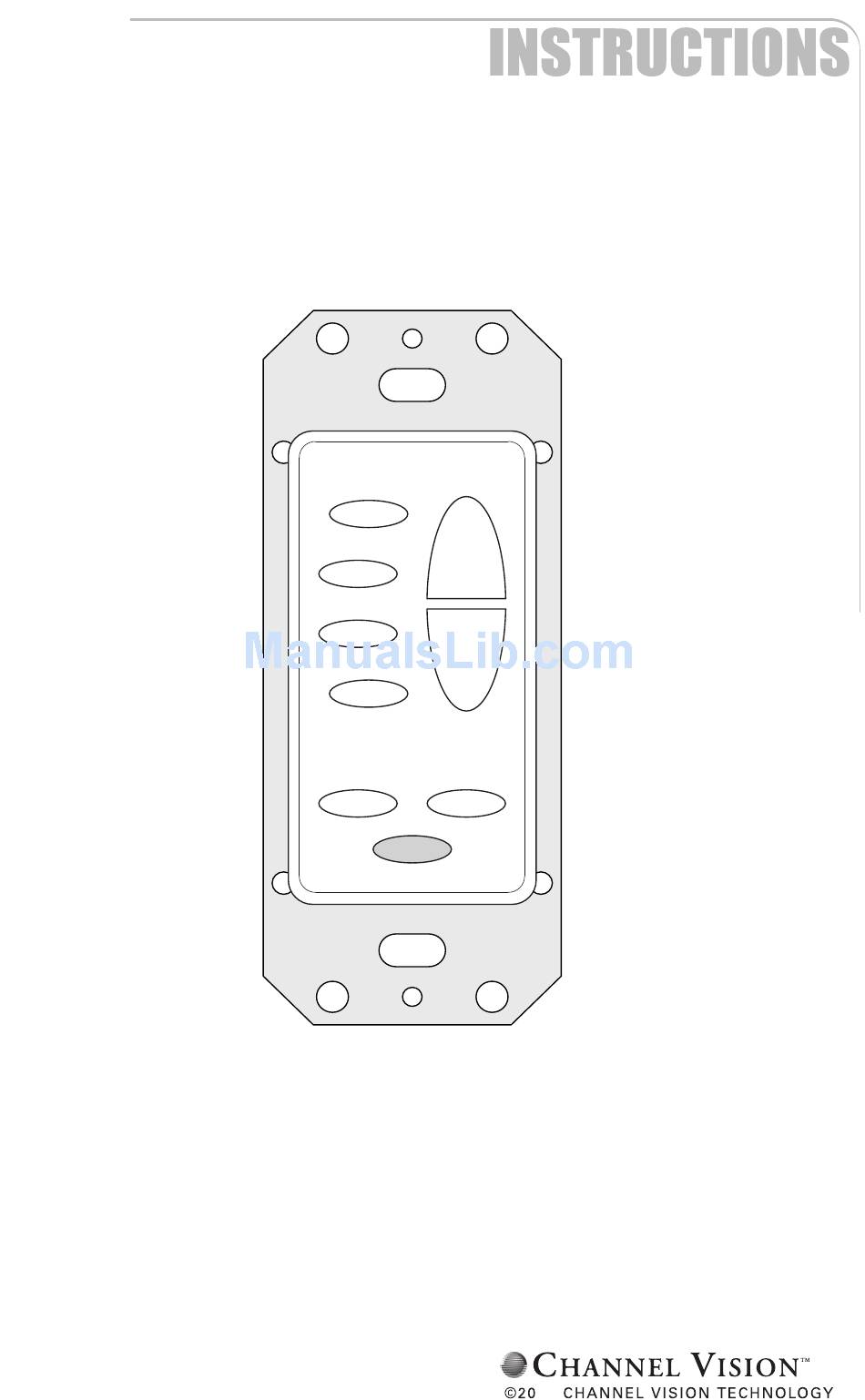

- Page 1 Vid 1 Vid 2 Vid 3 Vid 4 Mute A0127 IR Keypad for Multi-Room Audio Systems...
- Page 2 A0127 Keypad A0127 ... Keypad controller for use with the A4601. Features: Available in both white (A0127W) and ivory/almond (A0127IA) colors. Teaching capability allows controls to be stored in learning remote controls. User changeable source buttons make it easy to customize.
- Page 3 Changing buttons face plates on the A0127 keypad... The A0127IA comes with both Almond and Ivory face plates and buttons. Both the A0127W and A0127IA come with replacement buttons labeled for a variety of sources. Faceplate tabs The procedure below describes the how to exchange your buttons and faceplate.
- Page 4 See page 6 for connection details A4603 R Channel Vision A4601 Tested To Comply With FCC Standards Control Control FOR HOME OR OFFICE USE R-Audio-L Video R-Audio-L Video R-Audio OUTPUTS OUTPUTS CHANNELS GLOBAL INPUT R OUT R OUT R OUT...
-
Page 5: Rear Panel
IR emitter outputs allow IR-3002 flashers to be connected for remote control of source components. Ÿ Each zone is controlled through the A0127 keypad which connects to the RJ45 jacks on the rear panel. Ÿ A learning remote (such as the AB-500) can be programmed to control your source components and the A0127 (see page 7 for details). - Page 6 Keypads connect to the A4601 through the RJ45 jacks on the back panel of the A4601. Connections to the A0127 may be accomplished either by using the RJ45 jack or the screw terminals provided on the back side of the keypad.
- Page 7 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
- Page 8 Setting the A0127 as the master keypad... By changing a jumper setting on the A0127 you can make it a master keypad. This simply means that the master A0127 will be able to power on or power off the entire system from a single zone.
- Page 9 Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
