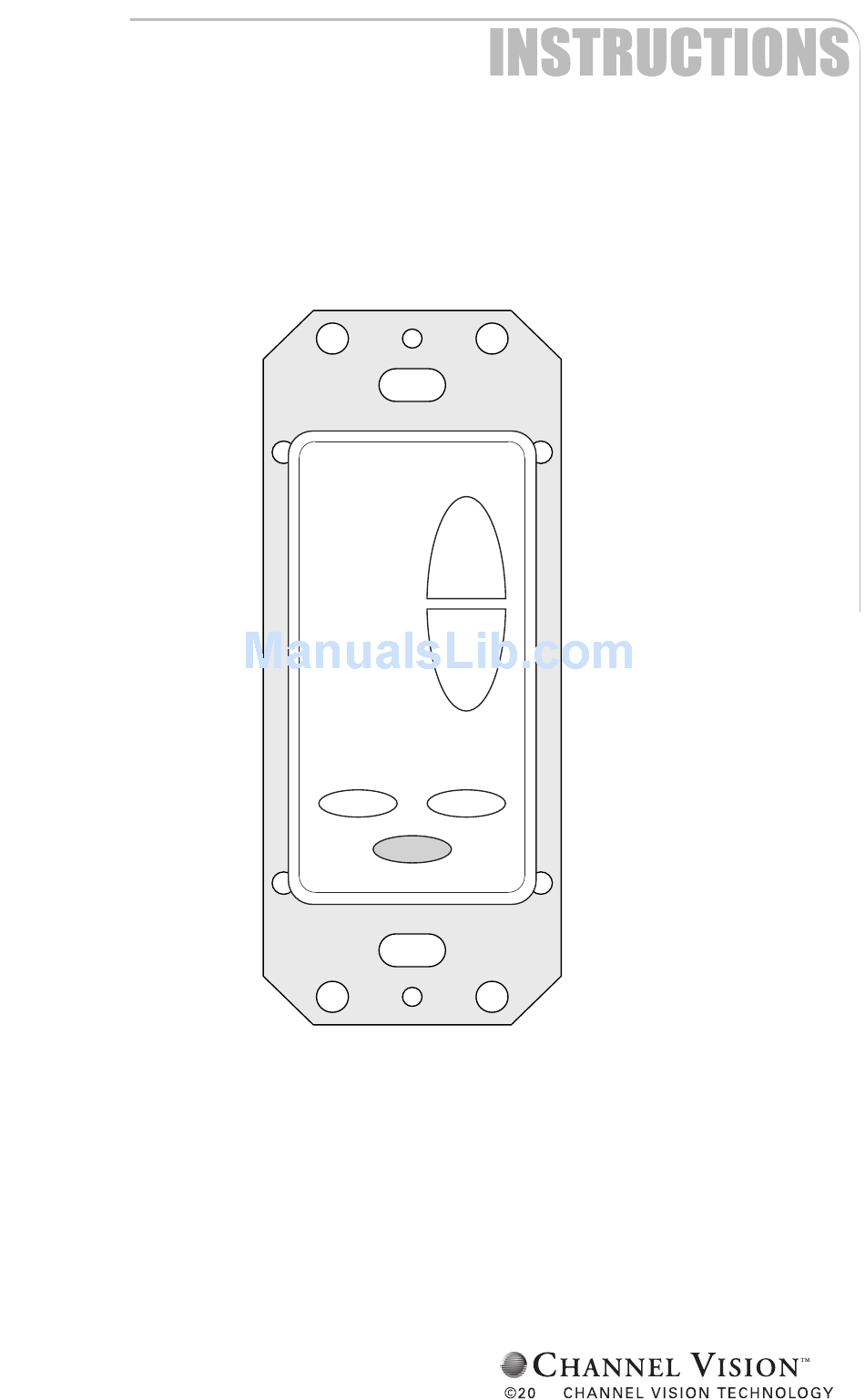

- Page 1 Mute A0129 IR Keypad for A0350 & WA-350/WA-351...
- Page 2 A0129 Keypad A0129 ... Keypad controller for use with the A0350, WA-350/WA-351 Features: • Controls Channel Vision’s A0350, WA-350, and WA-351 • Available in white Volume +/- buttons. Increases or decreases the audio level in a zone. Mute button. Power button.
- Page 3 When using the RJ45 jacks, simply wire both ends of the cable according to the TIA568A standard. When using the screw terminals on the A0129, make sure to wire the RJ45 plug connecting to the as shown below.
- Page 4 Using the A050 remote control.. designed to control your A0350, WA-35x. (Download IR codes at: www.channelvision.com and www.remotecentral.com) A0129 Zone Power - Turns on/off the zone you are in Power - Master power (turns all zones on/off) H A N N E L...
- Page 5 Connection to A0350, WA-35x Amplifier WA-350/WA-351 CAT5 Audio Input... Connect the output of your CAT5 audio hub here Keypad Input... Connect the A0129 here A0350 CAT5 Audio Input... Connect the output of your CAT5 audio hub here Keypad Input... Connect the A0129 here...
- Page 6 A0350 volume level can be adjusted by using an A0129 keypad or by connecting an IR-2400 and using a compatible remote such as model A0505. The RCA audio outputs on the back of the A0350 can be connected to a powered subwoofer to add more bass to your audio system.
- Page 7 A0501, A0502, or A0505 ... Remote control. Contains IR codes for controlling the Amplified Wireless Audio Receiver as well as many other Channel Vision audio products. IR-2400 ... Plasma-Proof IR receiver. In-wall, In-ceiling Speakers, and Free Standing Speakers... Channel Vision offers a full line of premium speakers.
- Page 8 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
- Page 9 Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
