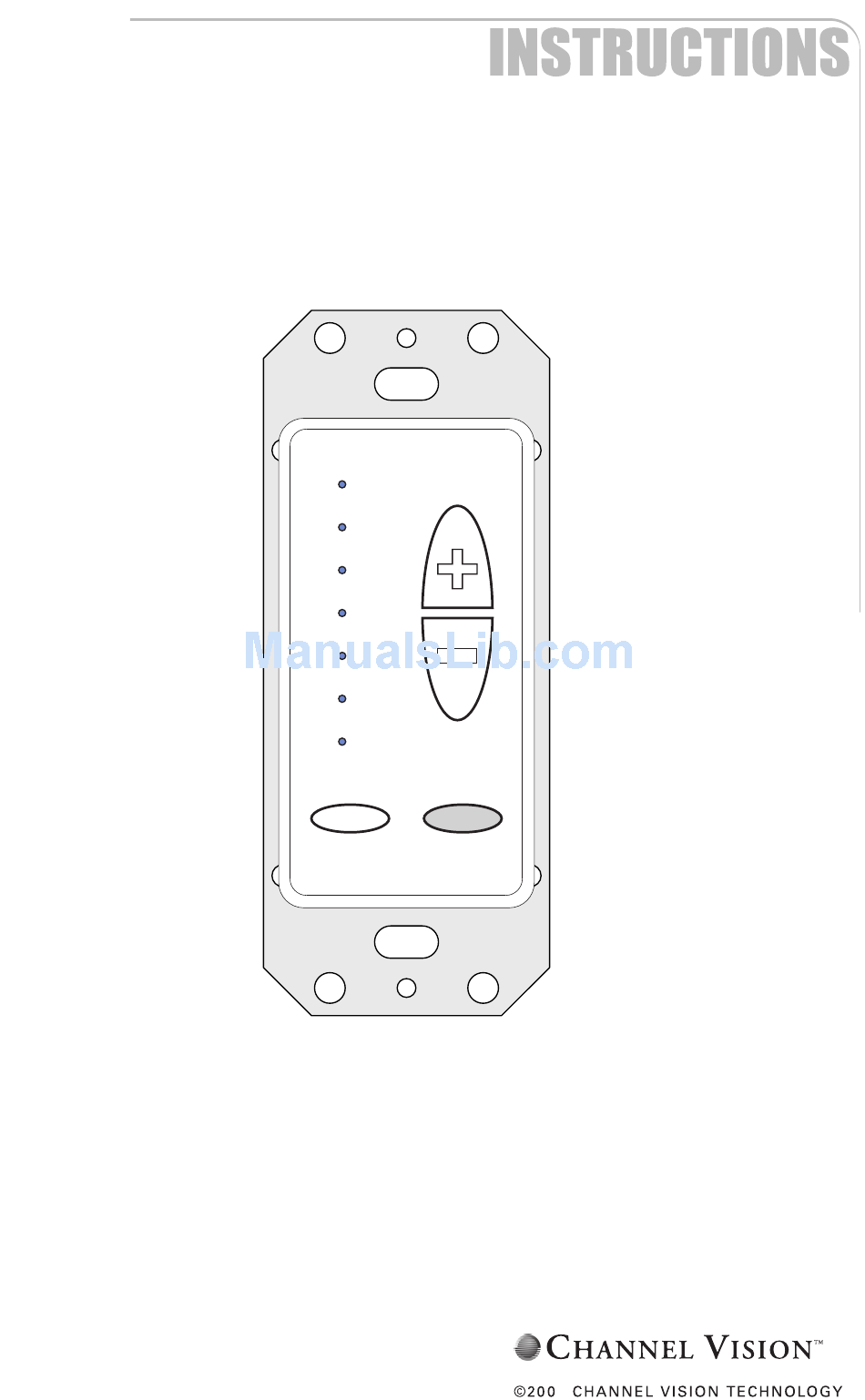

- Page 1 H A N N E L I S I O N Source A0125 Multi-Source Volume Control Keypad...
- Page 2 The A0125 is a volume control keypad for Channel Vision’s single-source and multi-source CAT5 audio systems. It provides convenient volume control and source selection capabilities, while its elegant decorator styling blends seamlessly with other wall switch devices. Features: Compatible with P-2014 and P-2044 CAT5 Audio Systems...
-
Page 3: How It Works
How it Works The A0125 can be used in two different modes: 1) single source mode or 2) multi-source mode. Mode selection is controlled by a jumper setting prior to installation. When using the A0125 with a single-source CAT5 audio hub, it should be set for the single-source mode. -
Page 4: Jumper Settings
1 & 2, the volume will always be set at the default level when the A0125 is turned on. If the jumper is on pins 2 & 3, the volume will be at the same level as it was before the A0125 was turned off. -
Page 5: Installation
The Ground (G) and Power (PR) terminals can be used to accept power from the A0240 via the A0302. These terminals should only be used if the A0125 is not connected to one of Channel Vision’s CAT5 audio hubs. A0125 (Rear) Connect the A0125 to one of Channel Vision’s... - Page 6 Note switch Room 4 positions When using the A0125 with a single-source CAT5 audio hub, the source mode jumper should be set for single-source. In this mode, the source selection features are not available. Pressing the Pwr button will turn off...
- Page 7 Multi-Source Application When using the A0125 in a multi-source system with the P-2044, the source mode jumper should be set for multi-source. In this mode, the source selection features are enabled allowing any zone to independently select and listen to any source at any time.
- Page 8 The A0505 is designed to allow you to control your P-2044 without having to touch the buttons on the A0125. Simply point the A0505 remote control at the IR sensor located at the bottom of the A0125 and press the desired button.
- Page 9 P-2014 will act as sub-zones to the P-2044. These sub-zones will all play the same audio which is perfect for common areas such as hallways, bathrooms, kitchen, or dinning room. For this kind of system, all of the A0125 keypads should be configured for multi-mode. Dining Room Bathroom...
- Page 10 IR codes from the remote controls listed above can also be used. b. The top LED on the A0125 acts as an IR receiver feedback LED that flashes whenever IR signals are received. Check to make sure the LED flashes whenever you press buttons on your remote control.
- Page 11 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
-
Page 12: Year Limited Warranty
1 YEAR LIMITED WARRANTY Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
