Specifications - Sony MHC-GT5D Operating Instructions Manual

BLUETOOTH devices connected with
• •
this system must comply with the
BLUETOOTH specification prescribed
by the Bluetooth SIG, Inc., and must
be certified to comply. However, even
when a device complies with the
BLUETOOTH specification, there may
be cases where the characteristics or
specifications of the BLUETOOTH device
make it impossible to connect, or may
result in different control methods,
display or operation.
Noise may occur or the audio may
• •
cut off depending on the BLUETOOTH
device connected with this system,
the communications environment, or
surrounding conditions.
80
GB

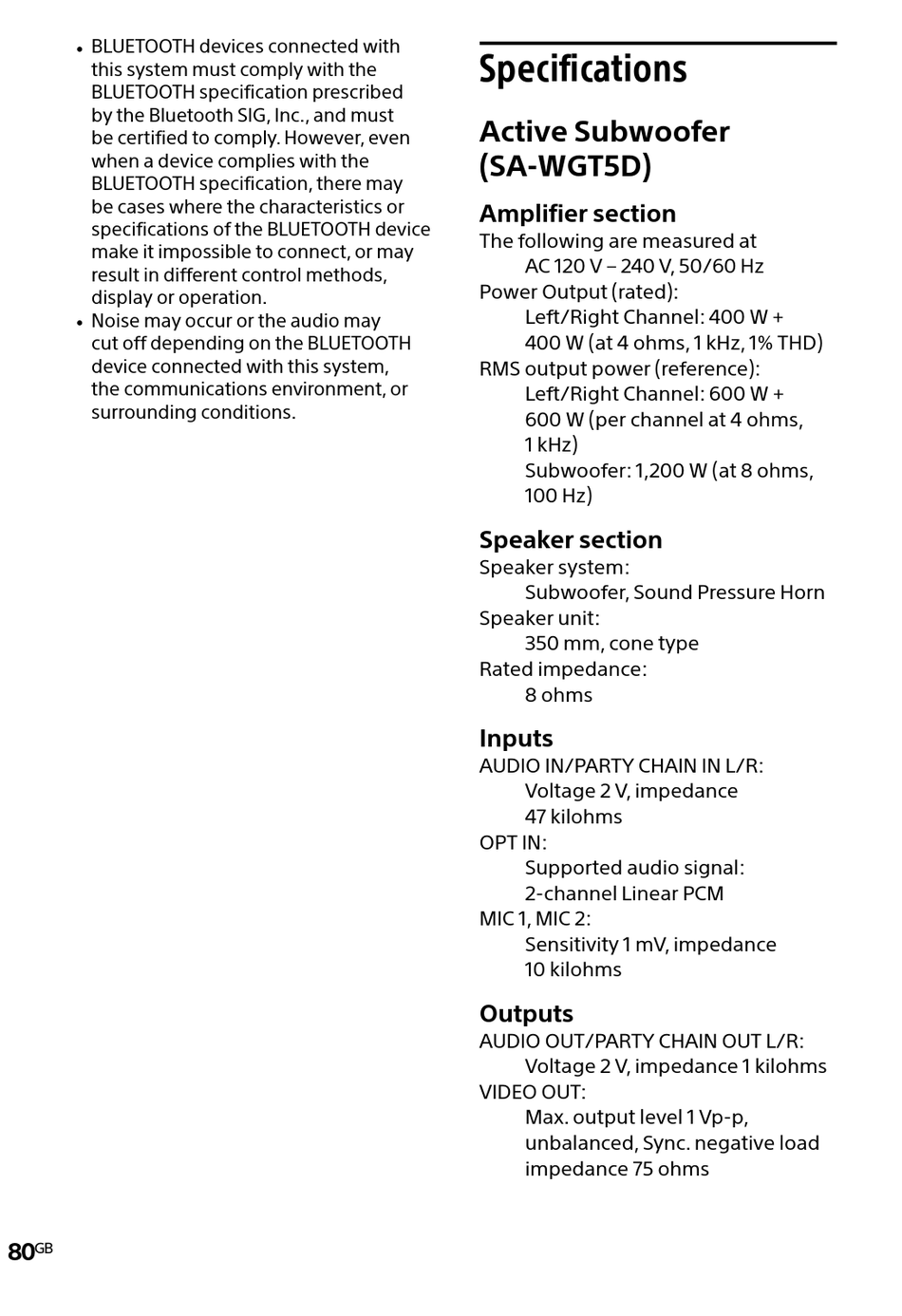

Specifications

Active Subwoofer
(SA-WGT5D)
Amplifier section
The following are measured at
AC 120 V – 240 V, 50/60 Hz
Power Output (rated):
Left/Right Channel: 400 W +
400 W (at 4 ohms, 1 kHz, 1% THD)
RMS output power (reference):
Left/Right Channel: 600 W +
600 W (per channel at 4 ohms,
1 kHz)
Subwoofer: 1,200 W (at 8 ohms,
100 Hz)
Speaker section
Speaker system:
Subwoofer, Sound Pressure Horn
Speaker unit:
350 mm, cone type
Rated impedance:
8 ohms
Inputs
AUDIO IN/PARTY CHAIN IN L/R:
Voltage 2 V, impedance
47 kilohms
OPT IN:
Supported audio signal:
2-channel Linear PCM
MIC 1, MIC 2:
Sensitivity 1 mV, impedance
10 kilohms
Outputs
AUDIO OUT/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohms
VIDEO OUT:
Max. output level 1 Vp-p,
unbalanced, Sync. negative load
impedance 75 ohms
