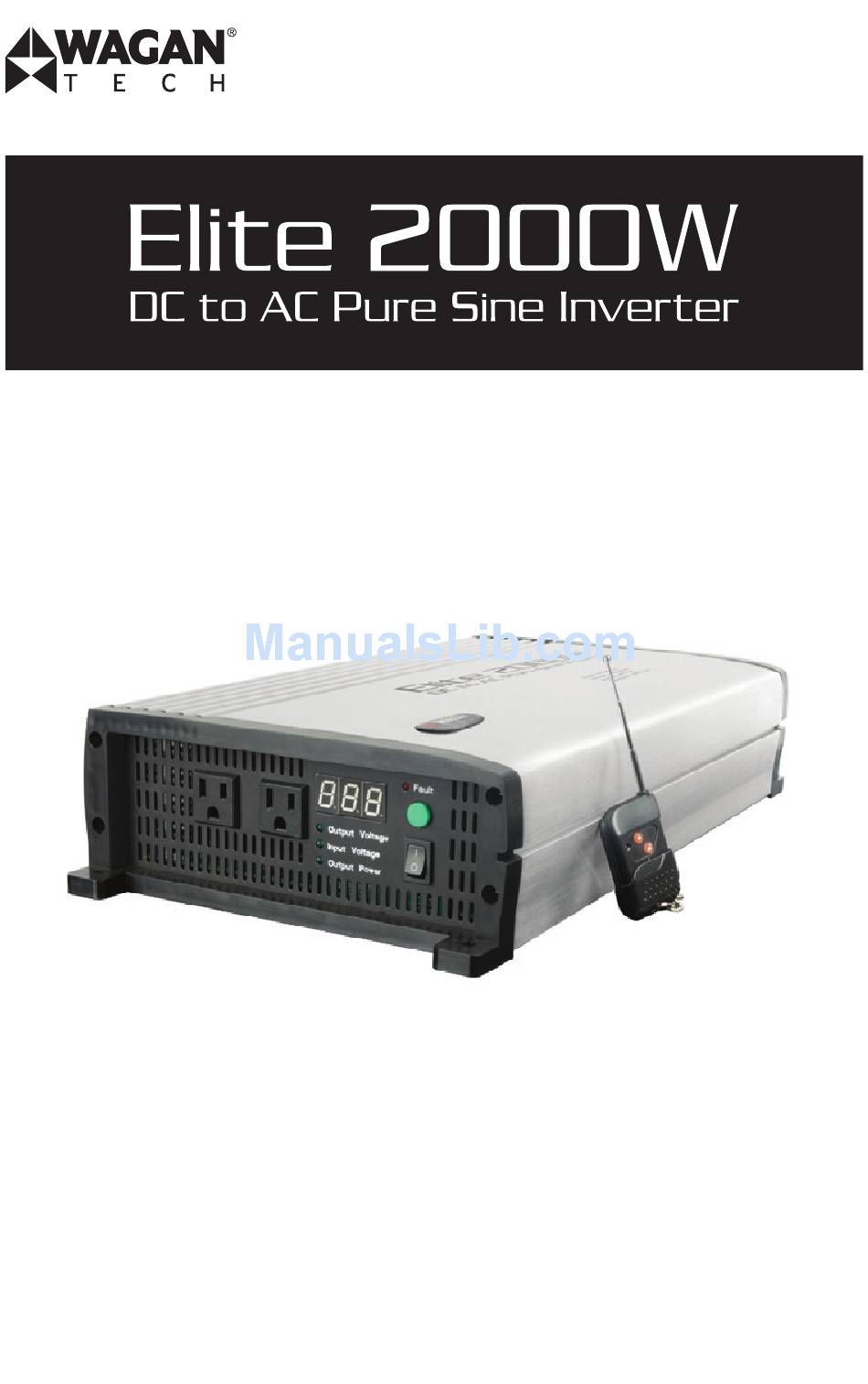

- Page 1 Item No. : 2205 User’s Manual We are constantly improving our products so specifications are subject to change without notice. Visit our website for the latest product information.
-
Page 2: About This Inverter
® Introduction Thank you for purchasing this Wagan Pure Sine Wave DC to AC Power Inverter. It delivers a true sine wave AC identical to that of commercial power. Use this inverter to power AC appliances in your vehicle, at a campsite, or at home as an emergency source of AC power. -
Page 3: General Instructions
SAFETY WARNING! he inverTer ouTpuT can be leThal mproper use of This inverTer may resulT in properTy damage personal injury or loss of life ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 4: Product Features

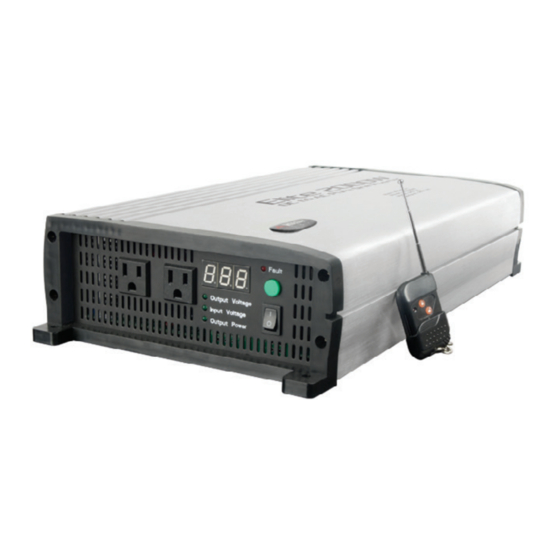

Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Product Features Front Panel The Front Panel view shows the inverters ON/OFF Switch, Indicators, AC Outlets, and Ground Terminal. • ON/OFF Switch This switch controls AC output of the inverter. • The FAULT indicator turns RED as the inverter shuts down because of: Excessive Temperature, Overload, Under Voltage or Over voltage. -
Page 5: Remote On/Off Switch
12 volt model 23A alkaline battery with a new one. ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 6: Rear Panel
Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Retractable Antenna ON switch OFF switch Sliding Cap Retracted Antenna Extended Antenna Rear Panel • Positive Terminal (red): Positive DC Input • Negative Terminal (black): Negative DC Input • Cooling Fans: High-speed and temperature controlled... -
Page 7: Load Considerations
This formula yields an approximation of the continuous wattage load of that appliance. The startup load of an appliance is a major factor of whether this inverter can power it. ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 8: Planning The Inverter System
Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Startup load is momentary. With many appliances, it is approximately twice the continuous load, but some appliance startup loads can be as high as eight times the continuous load. To determine if an appliance or tool will operate with this inverter, run a test. -
Page 9: Configuring The Battery Bank
• Age and condition of the batteries (older batteries lose AH capacity). • Compliance with turning off unnecessary AC loads. • Use of DC appliances and compliance with turning off unnecessary DC loads. ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 10: Derating The Battery Bank
Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Derating the Battery Bank Most lead-acid batteries have a rating expressed in amp-hours (AH). The most common rating of AH is “at the 20 hour rate”. NOTE: Despite several internet explanations, there is no relationship between cold cranking amps (CCA) and ampere-hours (AH). - Page 11 4 AWG insulated copper wire should be used to make the connections. If the distance is longer than 32 inches (2.6 ft), heavier wire will be required. ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
-
Page 12: Connecting The Inverter
Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Connecting the Inverter Loose connections will result in a severe voltage drop that can cause damage to connectors, conductors, and insulation and can cause sparking. Reverse polarity connection will blow the fuses in the inverter and can permanently damage to the inverter. -
Page 13: Charging The Battery Bank
These can continue to operate during power outages and they also reduce recharge time. For mobile or marine charging systems, a higher rated alternator may be necessary to charge a battery bank. ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 14: Regular Loss Of Commercial Power
Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Regular Loss of Commercial Power If the inverter system is used during commercial power outages that occur daily, configure the charger system to replace energy during the time that commercial power is available. -
Page 15: Troubleshooting
Equipment being operated draws too Use a higher capacity inverter or do much power. not use this equipment. PROBLEM: Continuous Buzzing Sound – Display Shows Low Voltage ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 16: Disposal/Recycling Of Inverter
Elite™ 2000W—Pure Sine Inverter by Wagan Tech ™ ® Reason Solution Input voltage below 10.5 Volts Keep input voltage above 10.5 Volts Poor or weak battery condition. Recharge or replace battery. Poor or loose cable connection Inspect terminals and tighten all con- nections. -
Page 17: Specifications
• Net Weight: 21.7 lbs (9.8 kg) *All specifications are typical at nominal line, half load, and 77ºF (25ºC) unless otherwise noted. Specifications are subject to change without notice. ©2016 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. - Page 18 Product is warranted to the original purchaser for a period of one (1) year from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WA- GAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail.
- Page 20 31088 San Clemente Street Hayward, CA 94544, U.S.A. Tel: +1.510.471.9221 U.S. & Canada Toll Free: +1.800.231.5806 customerservice@wagan.com www.wagan.com ©2016 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks used by Wagan Corporation REV20160202-E...
