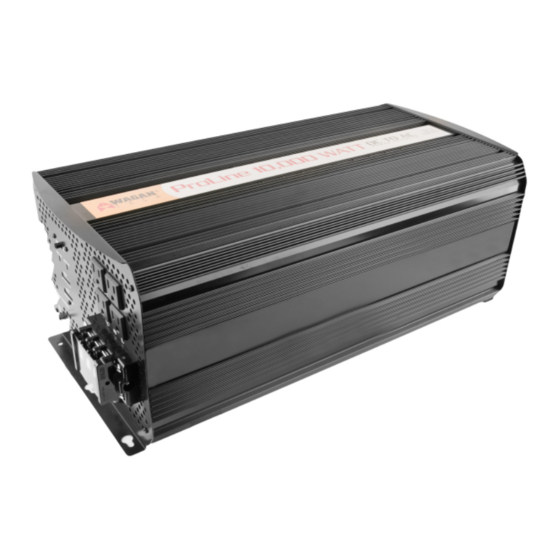

- Page 1 Item no. 2483 ProLine 10,000 Watt AC Inverter User’s Manual...
-
Page 2: Load Considerations
10,000 Watt AC Inverter by Wagan Tech Thank you for purchasing this DC to AC power inverter by Wagan Tech. With minimal care and proper treatment it will provide years of reliable service. Carefully read, understand and comply with all instructions before use. Keep this manual for future reference. -
Page 3: Front Panel
10 11 12 13 14 15 DC Volts AMPS High Output 240 480 720 960 1200 Terminals DC Amps REMOTE CONTROL Remote ON/OFF Switch Connection Ground Terminal © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation. - Page 4 10,000 Watt AC Inverter by Wagan Tech ON/OFF Switch. This switch turns the inverter ON and OFF. Over Temp LED This indicator turns RED as the inverter shuts down because of excessively high temperature. Immediately turn off appliances and allow the inverter to cool before continuing. The inverter generates heat and overheats when it is operated in a location without adequate ventilation.
-
Page 5: Power Inverter Output Waveform
Average reading meters do not correctly read MSW voltage, and will display 20 to 30 volts too low. Multi-meters identified as “TRUE RMS” will accurately read MSW voltage. © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation. -
Page 6: Rear Panel
10,000 Watt AC Inverter by Wagan Tech reAr PAneL 4 Positive (+) DC Input Terminals High-Speed Cooling Fans 4 Negative (−) DC Input Terminals High-Speed Cooling Fans Fans keep internal temperatures of the inverter from becoming excessive. Negative DC (−) Input and Positive DC (+) Input Terminals The inverter described in this manual has multiple cable terminal sets. -
Page 7: Determining Maximum Appliance Wattage
AC load watts by ten. For example, a 500 watt AC load will need 50 amps at 2 volts DC. This relationship holds for 2V DC inverters with 90% efficiency. © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation. -
Page 8: Derating The Battery Bank
10,000 Watt AC Inverter by Wagan Tech Using the 500 watts (or 50 amps) for 0 hours example, 50 amps are needed for 0 hours. This provides us with the basic amp-hours (AH) of battery life that is required. Ten hours at 50 amps equals 500 Amp-hours (AH). - Page 9 If batteries are to be kept in close proximity to the inverter or in a living space, use deep-cycle sealed lead acid batteries (SLA). © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation.
- Page 10 10,000 Watt AC Inverter by Wagan Tech Battery Bank Diagram The diagram below shows an inverter with up to four sets of connections to a battery bank with recommended fuses for battery protection. to 4 cables and fuses Fuse...
-
Page 11: Installation-Connecting An Inverter
Crimp appropriate sized ring terminals onto all cable ends including fuse holder cable ends. Connect the fuse holders to the long positive (+) cable terminals. © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation. - Page 12 10,000 Watt AC Inverter by Wagan Tech Connect the fuse holders to the short positive (+) cable terminals. Wrap the inverter positive cable ends with insulating plastic wrap. Mount the fuse holders to a support structure. Install fuses in the fuse holders and tighten the retaining nuts.
-
Page 13: Charging The Battery Bank
Follow battery manufacturer’s instructions in keeping the electrolytes at the proper level. Be sure to use pure distilled water when replacing evaporated electrolyte liquid. © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation. -
Page 14: Aboard A Vessel Or Vehicle
10,000 Watt AC Inverter by Wagan Tech AboArd A vesseL or vehICLe. Manufacturer-supplied engine-driven alternators can usually be replaced with higher amperage alternators. This will keep batteries charging while the vessel or vehicle engine is operating. In the case of a vessel, make sure that shore power is used to recharge batteries whenever possible. -
Page 15: Troubleshooting
Inspect terminals and tighten all connections Inadequate power being delivered to the Use heavier gauge wire inverter or excessive voltage drop Keep wire length as short as possible © 2009 Wagan Corporation. All Rights Reserved. Wagan and wagan.com are trademarks used by Wagan Corporation. -
Page 16: Specifications
10,000 Watt AC Inverter by Wagan Tech sPeCIFICATIons Name Description Input 2V (0–5V) DC Output 5 ± 5V AC Output waveform Modified Sine Waveform Continuous power 0,000 watts Surge power 20,000 watts Efficiency Approximately 90 % No load current draw <2.5A DC... - Page 17 WAgAn Corp. Limited Warranty registration Form...
- Page 19 WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail. In the event of a defective item, please contact WAGAN Corporation at (800) 23-5806 to obtain a Returned Merchandise Authorization number (RMA#), and return instructions.
- Page 20 Toll Free: 1.800.231.5806 31088 San Clemente Street Hayward, CA. 94544 U.S.A. ©2009 Wagan Corporation All Rights Reserved Wagan and wagan.com are trademarks used by Wagan Corporation Revised October 2009...
