Slim Line
User's Manual / Manual de Usuario / Guide d'Utilisation
Please visit our website for the latest information on this product.
Visite nuestro sitio web para obtener la información más reciente sobre este producto.
Veuillez visiter notre site Internet pour obtenir les dernières informations sur ce produit.
Item No. / Artículo No / Article n° : 2294 (1,000W)
™
Power Inverters
Input / Entrada / Entrée : 12V
RoHS
BC
compliant
2004 (1,500W)
2482 (2,000W)
24V
48V
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wagan Slim Line 1000
Summary of Contents for Wagan Slim Line 1000
- Page 1 Item No. / Artículo No / Article n° : 2294 (1,000W) 2004 (1,500W) 2482 (2,000W) ™ Slim Line Power Inverters Input / Entrada / Entrée : 12V 24V 48V User’s Manual / Manual de Usuario / Guide d’Utilisation Please visit our website for the latest information on this product.
- Page 2 AC power such as TV, DVD player, laptop computer, power tools, and lights for emergency or camping use. In an industry where the actual wattage output varies so greatly, Wagan Tech is proud to introduce TrueRated Power technology.
- Page 3 • The following operations will damage and void the warranty of the inverter: ∗ Reversing polarity by connecting DC cables to incorrect terminals. ∗ Connecting the inverter to a power source greater than 15V/30V/60V DC. ©2015 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
-
Page 4: Front Panel

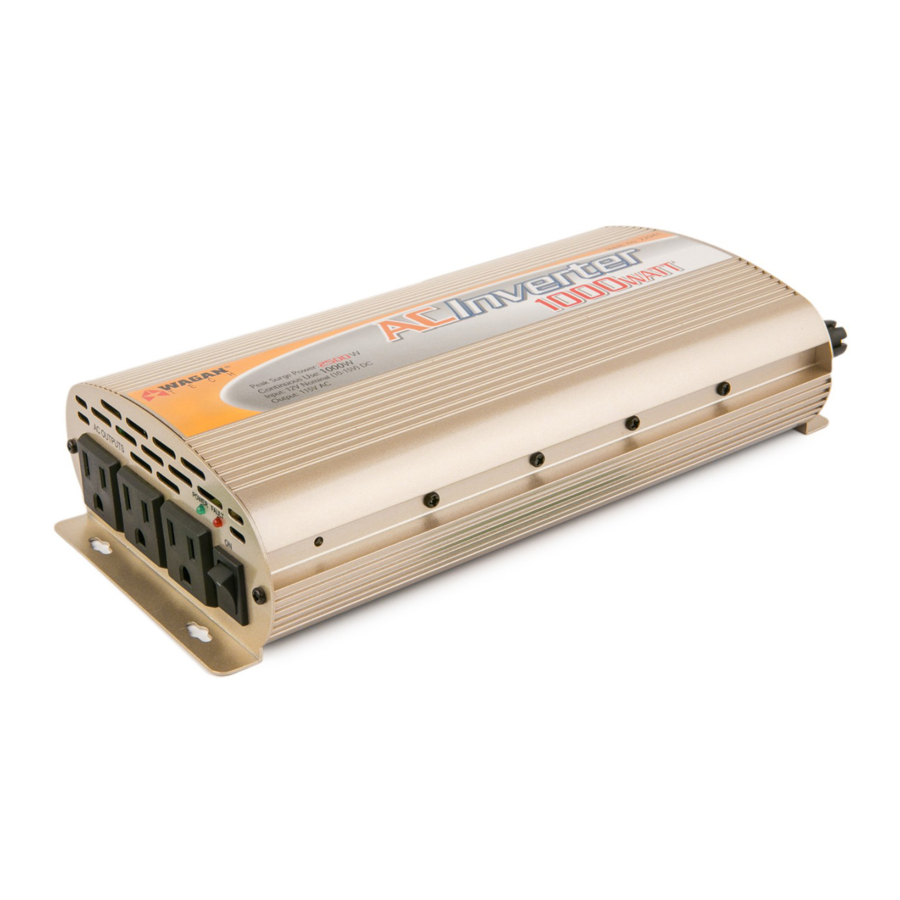

Slim Line Power Inverters by Wagan Tech ™ ® FRONT PANEL All four inverters described in this manual have an ON/OFF rocker switch, two LED indicators, and multiple AC outlets. Actual locations of these components vary by model. Multiple AC outlets enable multiple appliances to be operated at one time. -
Page 5: Rear Panel
High Speed Fan – Keeps the inverter circuitry cool. The fan operates when the inverter is powered on. To avoid unnecessarily draining of the battery, turn off the inverter when it is not in use. ©2015 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 6: Measuring The Ac Voltage
Slim Line Power Inverters by Wagan Tech ™ ® MEASURING THE AC VOLTAGE This inverter’s AC output is a modified sine wave (MSW) 115 volts AC. Your household AC output is pure sine wave. The comparison of modified sine wave and household AC is shown in the figure below. -
Page 7: Basic Operation
At maximum continuous output, this inverter requires a DC power supply (battery bank) that can continuously supply required amps at 12V/24V/48V DC for the duration of the run time. ©2015 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 8: Configuring The Battery Bank
Slim Line Power Inverters by Wagan Tech ™ ® CONFIGURING THE BATTERY BANK To determine the minimum battery ampere-hour rating that you will need to operate appliances from the inverter, and any DC appliances powered by the battery bank, follow these steps: (The following calculations are specific to 12V systems. -
Page 9: Derating The Battery Bank
Reverse polarity connection can permanently damage to the inverter. Damage caused by reverse polarity will void the warranty. ©2015 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 10: Installation Procedure
Slim Line Power Inverters by Wagan Tech ™ ® WARNING: Venting batteries produce explosive, corrosive gases. There is danger of explosion. DO NOT connect or disconnect BATTERY cables directly after battery discharge or recharge. Make sure that the battery bank area is well vented before attaching or removing cables.
