Summary of Contents for Wagan Elite 200W PRO

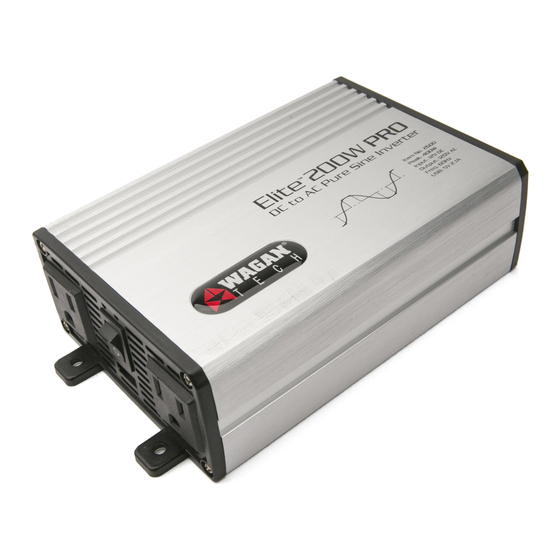

- Page 1 Item No. 2600 Elite 200W PRO ™ DC to AC Pure Sine Inverter User’s Manual...
- Page 2 Elite 200W PRO by Wagan Tech ™ ® Thank you for purchasing the Wagan Tech Elite 200W PRO Pure Sine Wave ® ™ DC to AC Power Inverter. Elite 200W PRO represents numerous improvements to ™ our standard pure sine that meet the needs of more demanding environments—...
-
Page 3: Specifications
1.5 lbs (0.7 kg) *All specifications are typical at nominal line, half load, and 77ºF (25ºC) unless otherwise noted. Specifications are subject to change without notice. ©2013 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. - Page 4 Elite 200W PRO by Wagan Tech ™ ® WARNINg INVERTER OUTPUT CAN BE LETHAL. IMPROPER USE OF THIS INVERTER MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. • Keep the inverter away from any direct heat source or combustible materials.
-
Page 5: Front Panel
USB Power Port — This power port can supply 5 volts at 2.1A for charging or powering smartphones, tablets and e-readers, MP3 players, gPS and other small electronic devices. ©2013 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 6: Rear Panel
Elite 200W PRO by Wagan Tech ™ ® • Audible Alarm (internal to the inverter) — When the Audible Alarm makes a buzzing sound, the inverter senses a low battery condition. The user should reduce the AC load, charge the battery, and check the DC cable for excessive losses. -
Page 7: Determining Maximum Appliance Wattage
Remember to consider the startup surge that motorized appliances will cause. Do not exceed the 400 watt momentary surge rating of this inverter. This can cause ©2013 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 8: Connecting The Inverter
Elite 200W PRO by Wagan Tech ™ ® immediate overload shut down and or blow a fuse. The fuse on this inverter is external and replaceable for this purpose. CONNECTINg THE INVERTER DC Plug Adapter Cord 1. Connect the red (+) and black (−) terminals of the supplied DC Plug Adapter Cord to the red (+) and black (−) terminals on the rear of the inverter. -
Page 9: Troubleshooting
PROBlEM: No Output Voltage – No lEDs lit Reason Solution Blown fuse. Check vehicle’s Accessory Socket Fuse. If the fuse is blown, replace with the same type and rating fuse. ©2013 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks used by Wagan Corporation. -
Page 10: Disposal/Recycling Of Inverter
Elite 200W PRO by Wagan Tech ™ ® PROBlEM: Inverter Auto Shut Down – Fault lED lit Reason Solution Battery voltage is below 9.5 volts. Charge or replace battery. Inverter is too hot (thermal shut down Allow inverter to cool. - Page 11 WAgAN Corp. limited Warranty The WAgAN Corp. warranty is limited to products sold only in the United States. All Wagan Tech products must be registered within (30) days of purchase to activate its warranty. To register your product, please visit http://tinyurl.com/waganwarranty. Be sure to keep the original receipt as it will be required when returning a product under the warranty.
- Page 12 31088 San Clemente Street Hayward, CA 94544, U.S.A. Tel: + 1.510.471.9221 U.S. & Canada Toll Free: 1.800.231.5806 customerservice@wagan.com www.wagan.com ©2013 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks used by Wagan Corporation REV20130805-E...
