Page 3

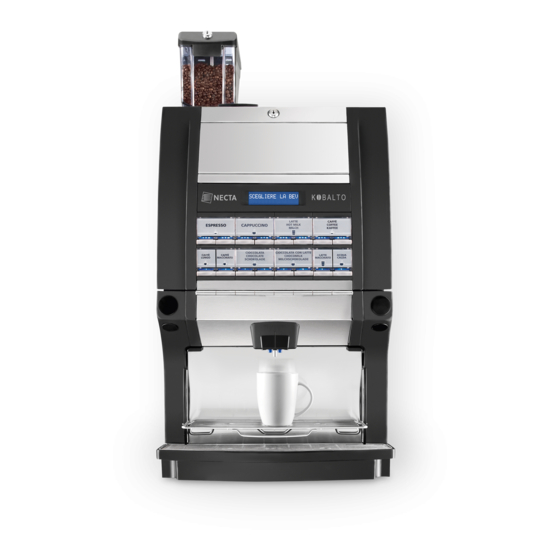

ntroductIon This “Programming Manual” is a very useful tool for those operators who want to get the most out of the potential of the installed software and know in detail all of the software available functions. This document is available in PDF format in the Reserved Area of our internet site www.nwglobalvending.com or, on request, through our after-sales service.
programmIng menu In order to access the programming menu, open the front door of the vending machine, switch on the ma- chine and insert the yellow key supplied in the relevant slot located on the left-hand side of the machine. Press the programming access button as shown in the figure: The machine goes into “Filler Menu”...
Page 5
FILLER MENU 1 - STATISTICS tatIStIcS 1.1 - STATIS. PRINTING rIntIng the tatIStIcS 1.1.1 1.1.1 - PARTIAl PRINTING artIal prIntout 1.1.1.1 1.1.1.1 - SEl. CNT. PRINT. rIntIng the SelectIon counterS When confirming this function, the counters regarding the different selections are printed. 1.1.1.2 1.1.1.2 - PRINT BAND CNT rIntIng the tIme band counterS...
Page 6
FILLER MENU 1.1.2 1.1.2 - TOTAl PRINTING otal prIntout When confirming this function, all statistics are printed. 1.2 - PRINT REl. STAT. rIntIng the relatIve StatIStIcS 1.2.1 1.2.1 - PARTIAl PRINTING artIal prIntout 1.2.1.1 1.2.1.1 - SEl. CNT. PRINT. rIntIng the SelectIon counterS When confirming this function, the relative counters regarding the different selections are printed.
Page 7
FILLER MENU 1.2.2 1.2.2 - TOTAl PRINTING otal prIntout When confirming this function, all relative statistics are printed. 1.3 - STATIST. DISPlAY ISplayIng the StatIStIcS 1.3.1 1.3.1 - SEl. CNT. DISP. ISplayIng the SelectIon counterS 1.3.1.1 1.3.1.1 - CNT DIS. X S.SEl ISplayIng the SIngle counterS This function is used for displaying the counters regarding each selection, divided by price band (0, 1, 2, 3, 4, Free, Test).
Page 8
FILLER MENU 1.3.4 1.3.4 - FAIl. CNT. DISP. ISplayIng the faIlure counterS This function is used for displaying the number of times each pos- sible failure occurred in the vending machine. 1.3.5 1.3.5 - COIN MECH. DISP. ISplayIng the coIn mechanISm data 1.3.5.1 1.3.5.1 - AUDIT DATA DISP.
Page 9
FILLER MENU 1.4.1.3 1.4.1.3 - SEl.NO.CNT. DIS. ISplayIng the SelectIon counterS In normal vendIng maIntenance This function is used for displaying the total counters regarding the selections made while in normal vending mode and maintenance mode. 1.4.2 1.4.2 - DISPlAY BAND CNT ISplayIng the tIme band counterS When selecting the desired price band (0, 1, 2, 3, 4, Free, Test), the total number of selections made for that price band is...
Page 10
FILLER MENU 1.5.1 1.5.1 - PARTIAl RESET artIal delete 1.5.1.1 1.5.1.1 - SEl. CNT. RESET eletIng the SelectIon counterS When confirming this function, the counters regarding the different selections are deleted. 1.5.1.2 1.5.1.2 - DISC. CNT. RESET eletIng the dIScount counterS When confirming this function, the counters regarding discounts and overprice are deleted.
Page 11
FILLER MENU 2 - SET INDIV. PRICE ettIng SIngle prIceS This function is used for setting a different price for each selection. 2.1 - PRICE BAND 0 rIce band This function is used for setting the sales price for each selection during time band 0.
Page 12
FILLER MENU 3 - TUBE CONTROl hange tubeS control 3.1 - FIllING TUBE IllIng the change tubeS From this function, the change tubes can be filled manually. Confirming the refilling, the display will indicate “Credit: ——” which is the value of money available in change the tubes;...
Page 13
FILLER MENU 6 - GSM 6.1 - RES PRE-AlM CNT. eSettIng the pre alarm counterS With this function the counters that control the pre-alarms are reset. 7 - EVADTS evadtS 7.1 - CONNECTION onnectIon This function places the machine in wait mode for connection to retrieve data.
Page 14
TECHNICIAN MENU 1 - FAIlURES aIlureS 1.1 - FAIlURE READING eadIng the faIlureS When the “Failure” function is displayed, press the confirm button “ � ” to display the present failures. If no failures are currently present, after pressing the confirm but- ton “...
Page 15
TECHNICIAN MENU Coin mechanism COIN MECHANISM The machine is locked if it receives a pulse longer than 2 seconds on a validator line or the communication with the serial coin mech- anism does not take place for more than 30 seconds (Executive) or 75 seconds (BDV).
Page 16
TECHNICIAN MENU Fresh Brew piston FB 1/2 PISTON It is due to wrong positioning of the unit. The machine is not locked, but all fresh product based selections are disabled. Fresh Brew scraper FB 1/2 SCRAPER Wrong positioning of the grounds ejection scraper. The machine is not locked, but all fresh product based selections are disabled.
Page 17
TECHNICIAN MENU 2 - SET PARAMETERS ettIng the parameterS 2.1 - CASH This set of functions controls all parameters regarding the payment systems and the sales prices. 2.1.1 2.1.1 - PRICES rIceS Four different prices can be set for each selection according to the programmed time bands for when the time table option is enabled.
Page 18
TECHNICIAN MENU 2.1.1.1.4 2.1.1.1.4 - PRICE BAND 3 rIce band The price of time band 3 can be set for each selection. 2.1.1.1.4 2.1.1.1.5 - PRICE BAND 4 rIce band The price of time band 4 can be set for each selection. 2.1.1.2 2.1.1.2 - SET GlOB.
Page 19
TECHNICIAN MENU 2.1.1.3 2.1.1.3 - TIME SCHEDUlE Ime bandS Four programmable time bands are provided for selling products at different prices. Time band 0 is not programmable and covers the 24 hours. 2.1.1.3.1 2.1.1.3.1 - SET DATE & TIME ate anD This function is used for setting the reference time given by an internal clock programmable for: day/month/year/week-day 1-7 (1=Monday, 2=Tuesday, etc…) and...
Page 20
TECHNICIAN MENU 2.1.2 2.1.2 - COIN MECHANISM oIn mechanISmS 2.1.2.1 ettIng the coIn mechanISmS 2.1.2.1 - COIN MECH. SET. It is possible to decide which of the payment system protocols available are to be enabled for the functions. The available payment systems are: - Executive - Validators - BDV...
Page 21
TECHNICIAN MENU Not accepted coins This function programs the rejection of coins when in “exact amount” mode. Check the label on the coin mechanism for the correct coin to value matching, indicating the position of the coins. Dispensing buttons This function enables or not the buttons on the coin mechanism used to release the coins in the change return tubes.
Page 22
TECHNICIAN MENU Maximum credit This function is used to define the maximum accepted credit. Maximum change It is possible to set a limit to the total amount of change returned by the coin mechanism when pressing the coin return button or after a single dispensing serving.
Page 23
TECHNICIAN MENU 2.1.2.2 2.1.2.2 - IMMEDIATE CHANGE mmedIate change This function is valid only in the case where a change-giver coin mechanism is installed in the machine. Normally the amount for a selection is cashed after the machine sends the message “Selection successful”, consequently the change is given at the end of dispensing the selected product.
Page 24
TECHNICIAN MENU 2.2.1.2 2.2.1.2 - SET WHIP DOSES ettIng the WhIpper 2.2.1.2.1 2.2.1.2.1 - SET WHIP DOSES ettIng the WhIpper doSeS The whipping time can be set for each selection button, for each water dose that composes such selection. The duration can be set in two different modes: 2.2.1.2.2 2.2.1.2.2 - SET MODAlITY ettIng the WhIpper mode...
Page 25
TECHNICIAN MENU 2.2.1.6 Z3000 2.2.1.6 - PREBREW - Z3000V breWIng varIable chamber 2.2.1.6.1 2.2.1.6.1 - PREBREWING TIME breWIng This function is used for setting, for each selection, the pre-brewing duration (programmable between 0 and 30 tenths of a second; 12 by default).
Page 26
TECHNICIAN MENU 2.2.2 2.2.2 - SET POWDER ettIng the poWderS 2.2.2.1 2.2.2.1 - POWDER DOSES oWder doSeS This function is used for setting, for each selection button, the instant product powder doses that compose the drink. These are expressed in gr. (grams). The display will indicate the combination of water and powder being set (water 1 - powder 1, etc.) and the powder dose value blinking.
Page 27
TECHNICIAN MENU 2.2.5 2.2.5 - 2 X BUTTON ouble utton According to the model and to the external keypad, it is possible to combine two buttons to a single selection. 2.2.6 2.2.6 - CHECk NO. SElEC. heckIng the SelectIon number Verifying the selection number (for direct selection models only) associated to a button.
Page 28
TECHNICIAN MENU 2.3.4 2.3.4 - FAST CYClES aSt cycleS When this function is enabled, some of the time that is useful for improving the drink quality is eliminated: all products that compose the drink are dispensed at the same time, eliminating the “post- whipping”...
Page 29
TECHNICIAN MENU 2.3. 2.3.A - PREGRINDING grIndIng This function is used for enabling/disabling the grinding of coffee for the next selection. This permits the reduction of dispensing time for a coffee selection. The function is disabled by default. 2.3. 2.3.B - CNT MAX NUMBER ounter maxImum number This function is used for setting the maximum number of selec- tions to be reached for the purpose of disabling the machine.
Page 30
TECHNICIAN MENU 2.4 - DISPlAY ISplay 2.4.1 2.4.1 - lANGUAGE anguage 2.4.1.1 2.4.1.1 - FIRST lANGUAGE IrSt language With this function it is possible to select the language used for surfing within the programming menus and while in normal vending mode.
Page 31
TECHNICIAN MENU 2.5 - PRE-SElECTIONS SelectIonS This function is used for setting the pre-selections present in this model, enabling or disabling the pre-selection for a certain selec- tion, changing dose and price. An example for the first pre-selection is indicated below; the opera- tions to be carried out are identical for each selection.
Page 32
TECHNICIAN MENU 2.5.6 2.5.6 - WATER + ater This pre-selection is used for adding a modifiable amount of water in the coffee or tea based selections. 2.5.7 2.5.7 - WATER - ater This pre-selection is used for decreasing by a modifiable amount the water in the coffee or tea based selections.
Page 33
TECHNICIAN MENU 2.6 - MISCEllANEOUS IScellaneouS 2.6.1 2.6.1 - FB DATA reSh breW unIt data 2.6.1.1 2.6.1.1 - FR. BREW 1 UNIT reSh This function is used for setting the brewing time for the two fresh- brew unit, the drying time for the used dose and whether or not to enable product whipping and automatic washing of the brewer unit (if fitted).
Page 34
TECHNICIAN MENU 2.6.3 2.6.3 - PASSWORD aSSWord This function is used for setting a password for accessing the “Technician menu” mode. 2.6.3.1 2.6.3.1 - SET PASSWORD ettIng the paSSWord Enter a 5-digit numeric code to be set as password. 2.6.3.2 2.6.3.2 - ENABlE PASSWORD nablIng the paSSWord This function is used for enabling or disabling the password re-...
Page 35
TECHNICIAN MENU 2.6.3.8 2.6.3.8 - TEST SEl. PWD eSt SelectIon paSSWord This function is used for setting the password to access the “Programming menu” mode and therefore also the test selections made from the outside. 2.6.3.9 2.6.3.9 - FIlTER RESET PWD Ilter reSet paSSWord This function is used for setting the password required for resetting the message “Replace water filter”...
Page 36
TECHNICIAN MENU 3 - STATISTICS tatIStIcS 3.1 - ElECTR. COUNTER lectronIc counter 3.1.1 3.1.1 DISPlAY COUNTERS ISplayIng the SelectIon counterS This function is used for displaying the total number of selections dispensed by the vending machine. 3.1.2 3.1.2 - RESET COUNTER eSettIng the counterS at poWer This function is used for resetting the general selection counter.
Page 37
TECHNICIAN MENU 3.2.2 3.2.2 - DISPlAY BAND CNT ISplayIng the tIme band counterS When selecting the desired price band (0, 1, 2, 3, 4, Free, Test), the total number of selections made for that price band is displayed. 3.2.3 3.2.3 - DISC. CNT. DISP. ISplayIng the dIScount counterS This function is used for displaying the total amount of discounts and overprice accumulated for the dispensed selections.
Page 38
TECHNICIAN MENU 3.3 - STATISTICS RESET eletIng the StatIStIcS 3.3.1 3.3.1 - PARTIAl RESET artIal delete 3.3.1.1 3.3.1.1 - SEl. CNT. RESET eletIng the SelectIon counterS When confirming this function, the counters regarding the different selections are deleted. 3.3.1.2 3.3.1.2 - DISC. CNT. RESET eletIng the dIScount counterS When confirming this function, the counters regarding discounts and overprice are deleted.
Page 39
TECHNICIAN MENU 3.4 - DISP. REl. STAT. ISplayIng the relatIve StatIStIcS 3.4.1 3.4.1 - SEl. CNT. DISP. ISplayIng the SelectIon counterS 3.4.1.1 3.4.1.1 - CNT DIS. X S.SEl ISplayIng the SIngle counterS This function is used for displaying the counters regarding each selection, divided by price band (0, 1, 2, 3, 4, Free, Test).
Page 40
TECHNICIAN MENU 3.4.5 3.4.5 - COIN MECH. DISP. ISplayIng the coIn mechanISm data 3.4.5.1 3.4.5.1 - AUDIT DATA DISP. ISplayIng the audIt data This function is used for displaying the number of coins inserted in the vending machine, differentiated by the type of coin. 3.4.5.2 3.4.5.2 - CASH COUNT.
Page 41
TECHNICIAN MENU 3.5 - DElETE REl.STAT. eletIng the relatIve StatIStIcS 3.5.1 3.5.1 - PARTIAl RESET artIal delete 3.5.1.1 3.5.1.1 - SEl. CNT. RESET eletIng the SelectIon counterS When confirming this function, the counters regarding the different selections are deleted. 3.5.1.2 3.5.1.2 - DISC.
Page 42
TECHNICIAN MENU 3.7 - STATIS. PRINTING rIntIng the tatIStIcS 3.7.1 3.7.1 - PARTIAl PRINTING artIal prIntout 3.7.1.1 3.7.1.1 - SEl. CNT. PRINT. rIntIng the SelectIon counterS When confirming this function, the counters regarding the different selections are printed. 3.7.1.2 3.7.1.2 - PRINT BAND CNT rIntIng the tIme band counterS When confirming this function, the counters regarding the different time bands are printed.
Page 43
TECHNICIAN MENU 3.8 - PRINT REl. STAT. rIntIng the relatIve StatIStIcS 3.8.1 3.8.1 - PARTIAl PRINTING artIal prIntout 3.8.1.1 3.8.1.1 - SEl. CNT. PRINT. rIntIng the SelectIon counterS When confirming this function, the relative counters regarding the different selections are printed. 3.8.1.2 3.8.1.2 - PRINT BAND CNT rIntIng the tIme band counterS...
Page 44
TECHNICIAN MENU 4 - TEST 4.1 - TEST DISPENSING eSt dISpenSIng 4.1.1 4.1.1 - COMP. DISPENSING omplete dISpenSIng With this function it is possible to obtain, with the door open and without inserting any money, complete dispensing for each selection. 4.1.2 4.1.2 - WATER ONlY ISpenSIng Water only...
Page 45
TECHNICIAN MENU 4.2.4 4.2.4 - MANUAl INSTAll. anual InStallatIon This function is used for manually installing the boilers and filling the water system. 4.3 - AUTOTEST utoteSt This function allows testing, in a semiautomatic way, of the main machine components. It is possible to cancel each operation and go to the next one by pressing the exit button, but confirming with the confirm button to start the autotest routine.
Page 46
TECHNICIAN MENU 5 - MISCEllANEOUS IScellaneouS 5.1 - D.A. REGISTRY endIng machIne InformatIon 5.1.1 5.1.1 - INSTAll. DATE nStallatIon date This function is used for storing the current date of system as installation date of the vending machine. This date will be indicated on the statistics printout.
Page 47
TECHNICIAN MENU 5.2 - INITIAlISING DB nItIalISIng the data baSe This function is used for “initialising” the machine, resetting all data to default values. This function should be used if there is a memory data error or when the software is replaced. Except for the general electronic counter, all statistical data is reset.
Page 48
TECHNICIAN MENU evadtS 5.3 - EVADTS The EVADTS (European Vending Association Data Transfer System) communication protocol has 2 codes for identifying the machine and for recognising the data transfer terminal. 5.3.1 5.3.1 - PASS CODE aSS code It is a four-digit alphanumeric code (0-9; A-F) that must be the same as the one in the data transfer terminal to allow its identification.
Page 49
TECHNICIAN MENU 5.4 - UPkEY 5.4.1 5.4.1 - SETUP MANAGEMENT etup control 5.4.1.1 -> 5.4.1.1 - UPkEY->MACHINE vendIng machIne When confirming this function after inserting the Up-Key in the spe- cial port located on the C.P.U. board, it will be possible to select the setup file from the list shown on the display using the scrolling buttons, then when confirming with the confirm button the selected setup will be loaded in the vending machine.
Page 50
TECHNICIAN MENU 6 - GSM The control software can send, via GSM modem, a signal indicat- ing a machine failure or an “ending product” “pre-alarm”, after dispensing a certain (programmable) number of selections of a given product. gSm p 6.1 - GSM PIN CODE In code This function is used for programming the identification code that will be sent to the GSM modem (optional) when switching the...
