Connecting adapters over Bluetooth

There are 3 scenarios in which adapter can be connected via Bluetooth. This section details all 3 methods.
a) Client/Server Pair: 2 adapters, configured to perform a "true" cable replacement.
b) Client: adapter is the Bluetooth device which initiates the connection
c) Server: Connecting TO adapter from a remote Bluetooth device (Factory Default)
Each of these 3 different scenarios can be configured in each of the 3 configuration methods previously described and are also
documented herein.

1.17. Client/Server Pair: "Cable Replacement"

One of the strongest features of the adapter is that 2 of them can be configured to connect to each other and thus behave
almost exactly as a cable. This configuration is very straightforward, does not require any Bluetooth software and is detailed
below.
For adapter's to connect as a pair, one of the devices needs to be configured as a client device, and one as a server. As the
factory settings for adapter are "Server" it follows then that only 1 of the pair needs any alternate configuration from that
supplied.
It is advisable that you first configure the communications settings (baud rate etc.) for each adapter so that they are suitable
for the devices into which you are plugging them. When configuring a pair of adapter's the Communications parameters of
each Adapter do not have to match each other's, only that of the devices into which they are connected.
Each adapter has a unique Bluetooth Address (BD_ADDR). This is printed on a label on the base of every product, but is also
accessible from the "View Current Settings" menu detailed above. For our example here, we will use an adapter with a
BD_ADDR of 000A-4F-00082D, which we'll call the Server, and a second, with a BD_ADDR of 000A-4F-0013BB, which we'll call
the Client. We'll leave all other settings for this example as factory defaults. As explained above we only need to change the
settings of the Client device...

1.17.1. Configuration by Windows Application

Manual for BL-819, BL-830, BL-875
V6.1

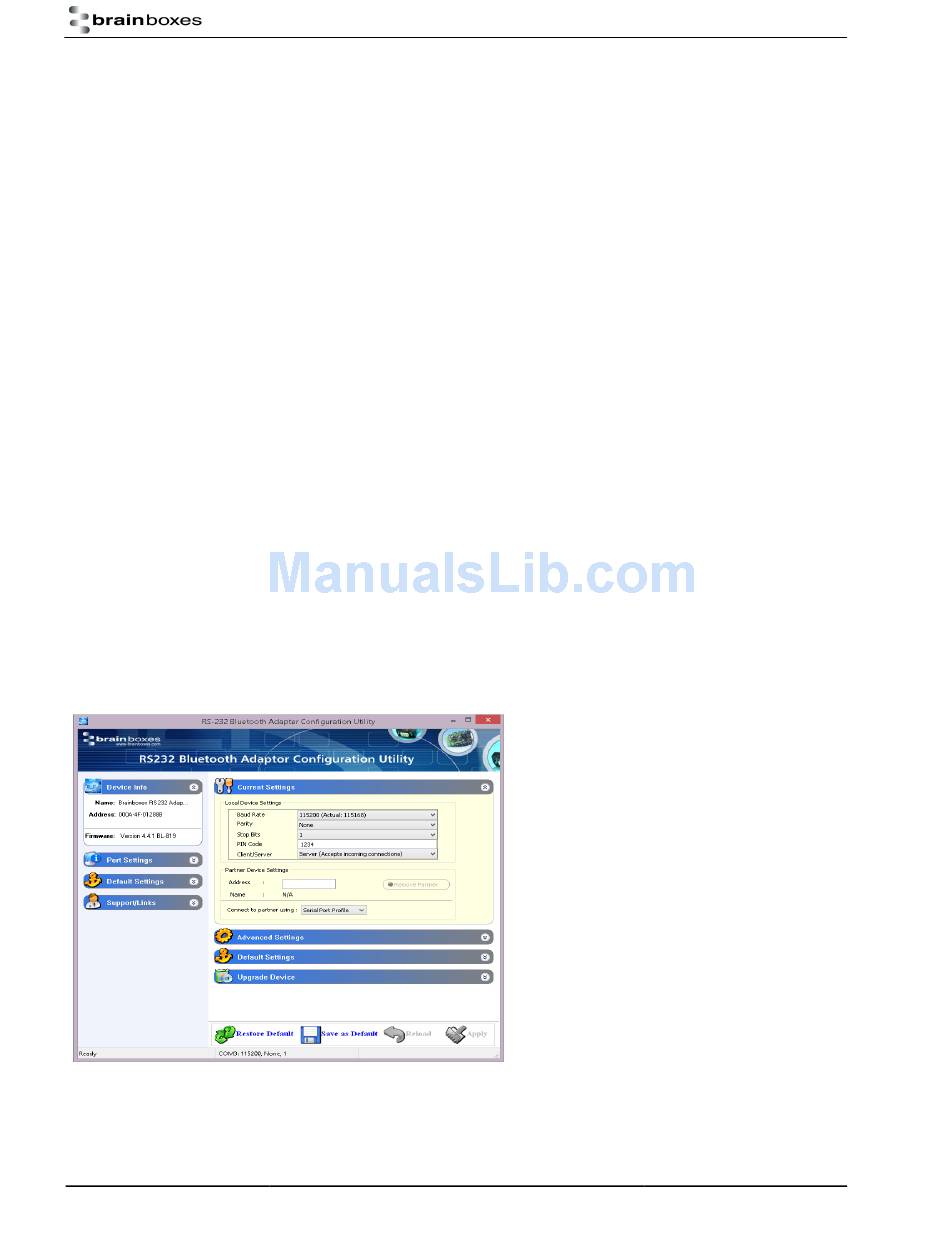

Add the address of your remote device into the
"Partner Device Settings" Section in the "Address" field.
Next Click the drop down arrow at the right of the
"Client/Server" field in the "Local Device Settings"
section and select the "Client" Option
Click "Apply"
