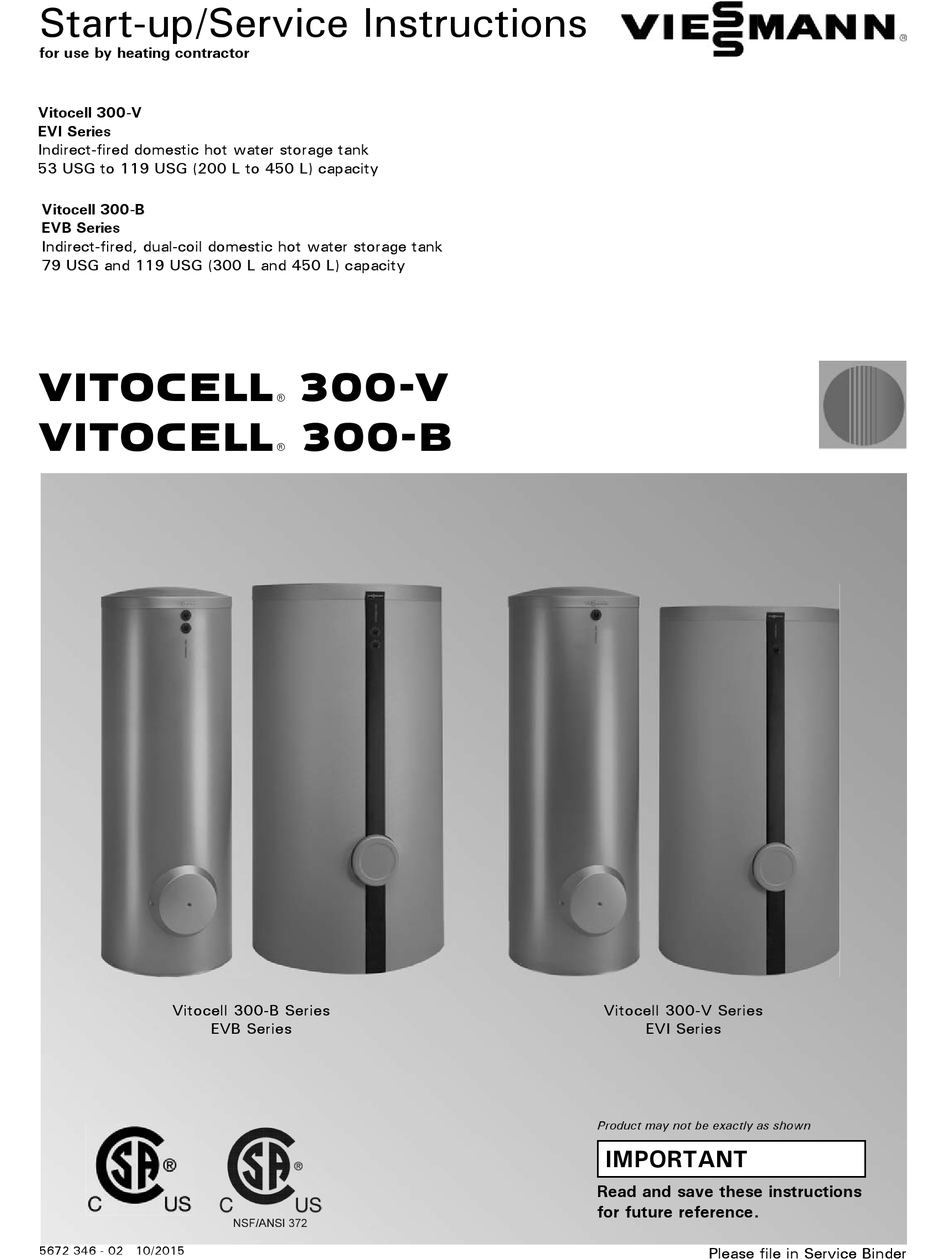

Start-up/Service Instructions
for use by heating contractor
Vitocell 300-V
EVI Series
Indirect-fired domestic hot water storage tank
53 USG to 119 USG (200 L to 450 L) capacity
Vitocell 300-B
EVB Series
Indirect-fired, dual-coil domestic hot water storage tank
79 USG and 119 USG (300 L and 450 L) capacity
VITOCELL
VITOCELL
Vitocell 300-B Series
EVB Series
5672 346 - 02 10/2015
300-V
r
300-B
r
Vitocell 300-V Series
EVI Series
Product may not be exactly as shown
IMPORTANT
Read and save these instructions
for future reference.
Please file in Service Binder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOCELL 300-V and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann VITOCELL 300-V

Summary of Contents for Viessmann VITOCELL 300-V

  • Page 1 79 USG and 119 USG (300 L and 450 L) capacity VITOCELL 300-V VITOCELL 300-B Vitocell 300-B Series Vitocell 300-V Series EVB Series EVI Series Product may not be exactly as shown IMPORTANT Read and save these instructions for future reference.

  • Page 2: Safety, Installation And Warranty Requirements

    Introduction Vitocell 300-V/-B Start-up/Service Safety, Installation and Warranty Requirements Please ensure that these instructions are read and understood before commencing installation. Failure to comply with the instructions listed below and details printed in this manual can cause product/property damage, severe personal injury, and/or loss of life.

  • Page 3: Table Of Contents

    Place DHW tank in Operation Again......8 Place System in Operation Again........8 Parts List Vitocell 300-V, EVI Series 53 and 79 USG (200 and 300 L)..9 Vitocell 300-V, EVI Series 119 USG (450 L)......10 Vitocell 300-B, EVB Series 79 USG (300 L).......11 Vitocell 300-B, EVB Series 119 USG (450 L).....12...

  • Page 4: Important Regulatory And Installation Requirements

    Leave all literature at the installation site and advise the Technical literature system operator/ultimate owner where the literature can Literature applicable to all aspects of the Vitocell: be found. Contact Viessmann for additional copies. - Technical Data Manual - Installation Instructions - Start-up/Service Instructions...

  • Page 5: About These Instructions

    General Information/Start-up Vitocell 300-V/-B Start-up/Service About These Instructions Take note of all symbols and notations intended to draw attention to potential hazards or important product information. These include “WARNING”, “CAUTION”, and “IMPORTANT”. See below. Warnings draw your attention to the presence of WARNING potential hazards or important product information.

  • Page 6: Initial Start-Up

    Service Vitocell 300-V/-B Start-up/Service Service Procedures Inspection and (if necessary) cleaning of tank must take place within 2 years of initial start-up and as required thereafter. In the event that the building is unoccupied and not heated and the danger of frost within the structure exists, the tank as well as the heat exchanger coil must be drained.

  • Page 7: Clean Inside Of Tank

    Service Vitocell 300-V/-B Start-up/Service Clean Inside of Tank WARNING Water being drained may be hot! IMPORTANT Cleaning of the Vitocell 300 can be done from either the top (if necessary), or the front inspection port / clean-out opening. Note: The side clean out / inspection port applies only to the 79 USG (300 L) and the 119 USG (450 L) tanks.

  • Page 8: Place Dhw Tank In Operation Again

    Service Vitocell 300-V/-B Start-up/Service Place DHW Tank in Operation Again 1. Reconnect tank to domestic water piping. 2. Replace gasket G and dome cover H of cover E, and gasket G of flanged cover F (if applicable) with a new seal every time tank is opened.

  • Page 9: Vitocell 300-V, Evi Series 53 And 79 Usg (200 And 300 L)

    Parts List Vitocell 300-V/-B Start-up/Service Vitocell 300-V, EVI Series 53 and 79 USG (200 and 300 L) Model No. Serial No. 53 USG (200 L) EVI 7554677jjjjjjjjj 79 USG (300 L) EVI 7554678jjjjjjjjj Ordering Parts: Please provide Model and Serial Number from rating plate A when ordering replacement parts.

  • Page 10: Vitocell 300-V, Evi Series 119 Usg (450 L)

    Parts List Vitocell 300-V/-B Start-up/Service Vitocell 300-V, EVI Series 119 USG (450 L) Model No. Serial No. 119 USG (450 L) EVI 7554680jjjjjjjjj Ordering Parts: Please provide Model and Serial Number from rating plate A when ordering replacement parts. Order replacement components from your Viessmann distributor.

  • Page 11: Vitocell 300-B, Evb Series 79 Usg (300 L)

    Parts List Vitocell 300-V/-B Start-up/Service Vitocell 300-V, EVB Series 79 USG (300 L) (continued) Model No. Serial No. 79 USG (300 L) EVB 7554679jjjjjjjjj Ordering Parts: Please provide Model and Serial Number from rating plate A when ordering replacement parts. Order replacement components from your Viessmann distributor.

  • Page 12: Vitocell 300-B, Evb Series 119 Usg (450 L)

    119 USG (450 L) EVB 7554681jjjjjjjjj Ordering Parts: Please provide Model and Serial Number from rating plate A when ordering replacement parts. Order replacement components from your Viessmann distributor. Parts for Tank Assembly 0001 Leveling bolt (each) 0002 Sensor mounting hardware 0004 Gasket, 115 x 92 x 3 mm 0005 Tank cleanout cover, 4”...

  • Page 13: Vitocell 300-V/-B, Evi/Evb Series 119 Usg (450 L)

    Parts List Vitocell 300-V/-B Start-up/Service Vitocell 300-V/-B, EVI/EVB Series 119 USG (450 L) Model No. Serial No. 119USG/450L EVI 7554680jjjjjjjjj 119USG/450L EVB 7554681jjjjjjjjj Ordering Parts: Please provide Model and Serial Number from rating plate A when ordering replacement parts. Order replacement components from your Viessmann distributor.

  • Page 14: Maintenance Record

    Maintenance Vitocell 300-V/-B Start-up/Service Maintenance Record Start-up Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service date: Start-up Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service date: Start-up Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service date: Start-up Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service date: Start-up Maintenance/Service Maintenance/Service Maintenance/Service Maintenance/Service date:...
  • Page 15 Vitocell 300-V/-B Start-up/Service...
  • Page 16 Vitocell 300-V/-B Start-up/Service...

This manual is also suitable for:

Vitocell 300-b
