VIESMANN
Service instructions
for contractors

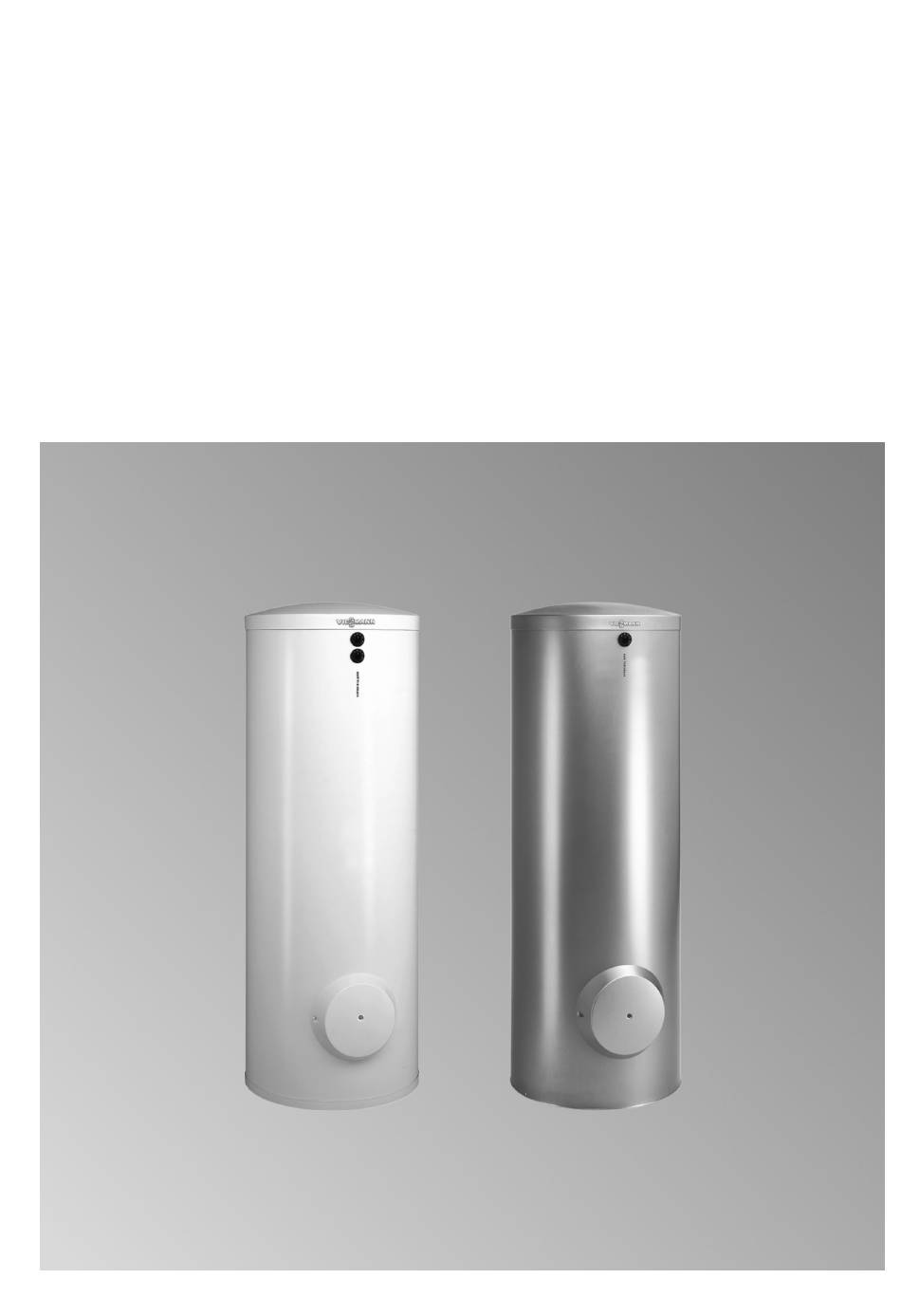

Vitocell 300-B
Type EVB
DHW cylinder, 300 and 500 l
Vitocell 300-V
Type EVI
DHW cylinder, 200 to 500 l
For applicability, see the last page
VITOCELL 300-B
VITOCELL 300-V
Please keep safe.
5607 062 GB
9/2013

Advertisement

Table of Contents
loading

Related Manuals for Viessmann VITOCELL 300-B

Summary of Contents for Viessmann VITOCELL 300-B

  • Page 1 VIESMANN Service instructions for contractors Vitocell 300-B Type EVB DHW cylinder, 300 and 500 l Vitocell 300-V Type EVI DHW cylinder, 200 to 500 l For applicability, see the last page VITOCELL 300-B VITOCELL 300-V Please keep safe. 5607 062 GB...
  • Page 2 Faulty components must be replaced with origi- sate or other causes. Ensure a sufficient supply of nal Viessmann spare parts. combustion air. Instruct system users that subsequent modifications to the building characteristics are not permissible (e.g.
  • Page 3 Installing non-authorised components and making non-approved modifications or con- versions can compromise safety and may inva- lidate the warranty. For replacements, use only original spare parts supplied or approved by Viessmann.

  • Page 4: Table Of Contents

    Index Index 1. Intended use ........................2. Commissioning, inspec- Steps - commissioning, inspection and maintenance ......tion, maintenance 3. Parts lists, type EVI, 200 l Ordering parts ..................10 and 300 l Overview of the assemblies ..............10 Cylinder assembly incl. thermal insulation ..........10 Flanged immersion heater assembly .............

  • Page 5: Intended Use

    Intended use Intended use The appliance is only intended to be installed and operated in sealed unvented systems that comply with EN 12828 / DIN 1988, or solar thermal systems that comply with EN 12977, with due attention paid to the associated installation, service and operating instruc- tions.

  • Page 6: Commissioning, Inspec-Steps - Commissioning, Inspection And Maintenance

    Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance Commissioning steps Inspection steps Maintenance steps Page • 1. Filling the DHW cylinder...................... • • 2. Inspection and maintenance....................• • 3. Shutting down the system • • 4. Checking the sensor wells for leaks •...

  • Page 7: Filling The Dhw Cylinder

    Commissioning, inspection, maintenance Filling the DHW cylinder 1. Fill the DHW cylinder from the DHW side. 2. Check the fittings on the heating water and DHW sides for leaks and tighten if required. Note If the DHW cylinder is pressurised, tighten the 3.

  • Page 8: Cleaning The Inside Of The Dhw Cylinder

    Commissioning, inspection, maintenance Cleaning the inside of the DHW cylinder 1. Drain the DHW cylinder from the DHW side. 2. Remove top panel , cover , thermal insulation mats and thermometer sensor 3. Remove flange cover and cylinder locking cap with stainless steel circular blank and gas- kets...

  • Page 9: Returning The Dhw Cylinder To Use

    Commissioning, inspection, maintenance Returning the DHW cylinder to use 1. Reconnect the DHW cylinder to the pipework. 2. Insert new gaskets at flange cover and cylin- der locking cap 3. Refit flange cover and cylinder locking cap with stainless steel circular blank and tighten with the required torque.

  • Page 10: Parts Lists, Type Evi, 200 L Ordering Parts

    0019 Installation instructions 0008 Sensor well with sensor retainer 0020 Service instructions 0009 Thermometer 30 - 120 °C 0021 Touch-up spray paint, Vitosilver 0010 Viessmann logo 0022 Touch-up paint stick, Vitosilver 0011 Thermal insulation mat 0023 Vitocell logo 0012 Top panel...

  • Page 11: Flanged Immersion Heater Assembly

    Parts lists, type EVI, 200 l and 300 l Cylinder assembly incl. thermal insulation (cont.) 0024 0012 0011 0005 0004 0007 0006 0007 0004 0009 0023 0003 0015 0016 0017 0018 0014 0013 0002 0008 0002 0022 0010 0019 0020 0021 0001 Fig.
  • Page 12 Parts lists, type EVI, 200 l and 300 l Flanged immersion heater assembly (cont.) 0001 0003 0005 0004 0002 0003 0001 0005 Fig. 5...

  • Page 13: Parts Lists, Type Evi, 500 L Ordering Parts

    Parts lists, type EVI, 500 l Ordering parts The following information is required: Serial no. (see Vitocell 300-V type plate ■ Assembly (from this parts list) ■ Position number of the individual part within the ■ assembly (from this parts list) Standard parts are available from your local supplier.

  • Page 14: Cylinder Assembly

    Thermal insulation assembly 0001 Clip closure 0009 Thermometer 30 - 120 °C 0002 Thermal insulation jacket, right section 0010 Viessmann logo 0003 Thermal insulation jacket, left section 0011 Cover strip 0004 Thermal insulation mat, top 0012 Pipe collar with hole...

  • Page 15: Flanged Immersion Heater Assembly

    Parts lists, type EVI, 500 l Thermal insulation assembly (cont.) 0006 0004 0012 0015 0003 0011 0001 0014 0009 0001 0008 0002 0014 0007 0005 0013 0010 Fig. 8 Flanged immersion heater assembly 0001 Gasket 0002 Flange cover 0003 Reducer 0004 Immersion heater fascia 0005 Flange installation instructions...
  • Page 16 Parts lists, type EVI, 500 l Flanged immersion heater assembly (cont.) 0001 0003 0005 0004 0002 0003 0001 0005 Fig. 9...

  • Page 17: Parts Lists, Type Evb, 300 L Ordering Parts

    Parts lists, type EVB, 300 l Ordering parts The following information is required: Standard parts are available from your local supplier. Serial no. (see Vitocell 300-B type plate ■ Assembly (from this parts list) ■ Position number of the individual part within the ■...

  • Page 18: Flanged Immersion Heater Assembly

    Parts lists, type EVB, 300 l Cylinder assembly incl. thermal insulation (cont.) 0025 0012 0011 0005 0004 0007 0006 0007 0004 0009 0009 0024 0019 0003 0015 0016 0014 0013 0017 0018 0008 0002 0014 0002 0013 0008 0002 0002 0001 0010 0020...
  • Page 19 Parts lists, type EVB, 300 l Flanged immersion heater assembly (cont.) 0001 0003 0005 0004 0002 0003 0001 0005 Fig. 12...

  • Page 20: Parts Lists, Type Evb, 500 L Ordering Parts

    Parts lists, type EVB, 500 l Ordering parts The following information is required: Serial no. (see Vitocell 300-B type plate ■ Assembly (from this parts list) ■ Position number of the individual part within the ■ assembly (from this parts list) Standard parts are available from your local supplier.

  • Page 21: Cylinder Assembly

    Parts lists, type EVB, 500 l Cylinder assembly 0001 Adjustable foot 0009 Flange cover 0002 Sensor retainer 0010 Sensor well with sensor retainer 0003 Vitocell 300-B type plate 0011 Sensor well thermal insulation 0004 Gasket 0012 Reducer 0005 Cylinder locking cap 0013 Support...

  • Page 22: Flanged Immersion Heater Assembly

    Parts lists, type EVB, 500 l Thermal insulation assembly (cont.) 0006 0004 0012 0015 0003 0011 0001 0014 0009 0001 0008 0002 0014 0007 0005 0013 0010 Fig. 15 Flanged immersion heater assembly 0001 Gasket 0002 Flange cover 0003 Reducer 0004 Cover 0005 Installation instructions...
  • Page 23 Parts lists, type EVB, 500 l Flanged immersion heater assembly (cont.) 0001 0003 0005 0004 0002 0003 0001 0005 Fig. 16...

  • Page 24: Commissioning/Service

    Commissioning/service reports Commissioning/service reports Commissioning Service Service date: Service Service Service date: Service Service Service date: Service Service Service date: Service Service Service date:...

  • Page 25: Product Characteristics

    Product characteristics Product characteristics Vitocell 300-B Cylinder capacity kWh/24 h 1.17 1.37 Standby heat loss at 45 K temperature differential (standby volume) (solar volume) Vitocell 300-V Cylinder capacity Standby heat loss kWh/24 h at 45 K temperature differential Standard parameter...

  • Page 26: Accessories Accessory Specification

    Heat-up time from 10 to 60 °C Vitocell 300-V Type EVI 200 l Type EVI 300 l Type EVI 500 l 11.4 Vitocell 300-B Type EVB 300 l Type EVB 500 l 11.0 Content that can be heated with an immersion heater Vitocell 300-V Type EVI...

  • Page 27: Certificates Declaration Of Conformity

    Certificates Declaration of conformity We, Viessmann Werke GmbH&Co KG, D-35107 Allendorf, confirm as sole responsible body that the products Vitocell 300-B and Vitocell 300-V comply with the following standards: DIN 4753 AD 2000 regulations EN 12897 In accordance with the following Directives, this product is designated...
  • Page 28 Serial No.: 7497180 7497196 7497197 7497198 7497199 7498987 7498988 7498990 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040...
