Summary of Contents for Grimac TERRY TECH

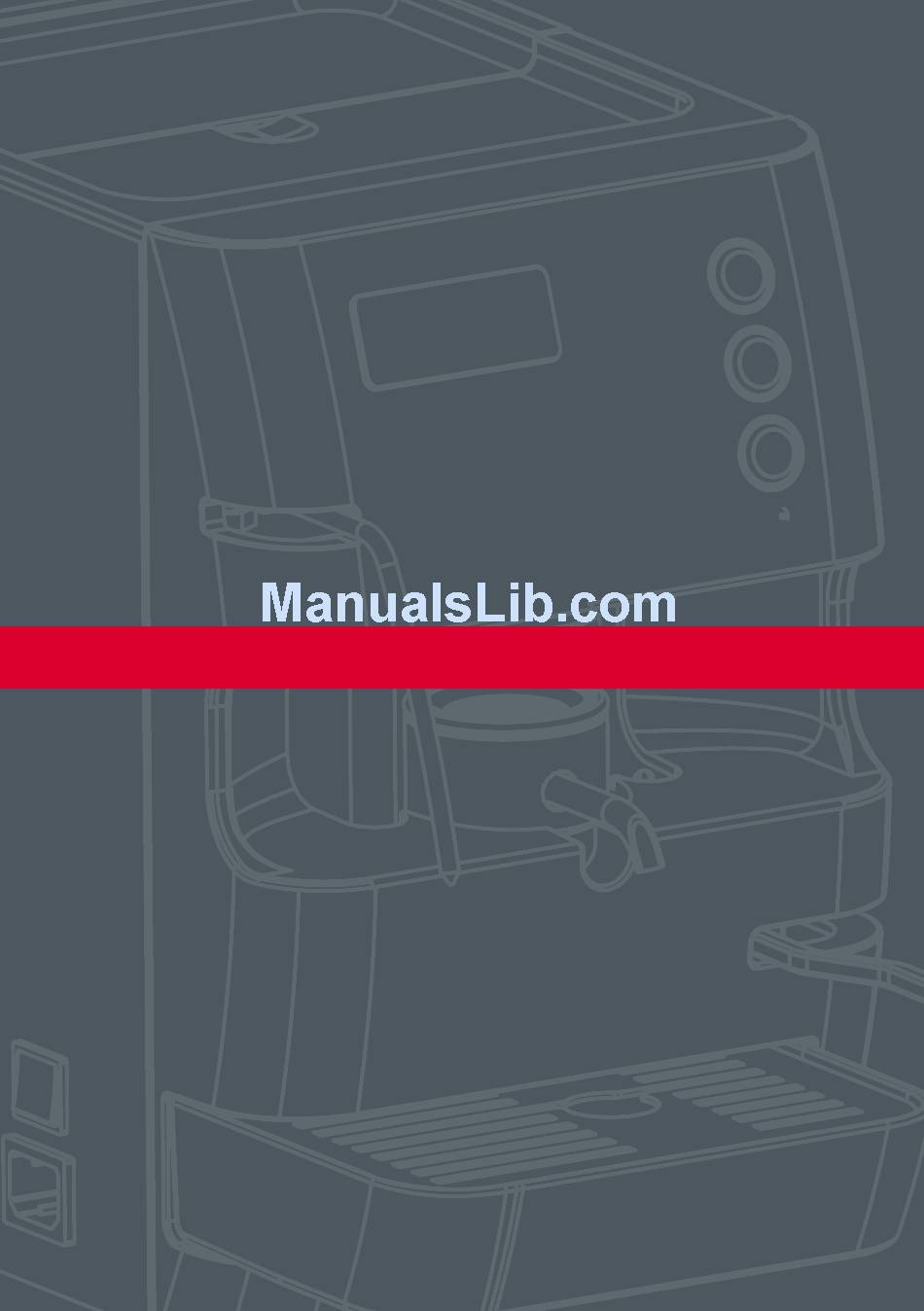

- Page 1 Our best cOmpliments fOr chOOsing grimac quality...
- Page 2 Coffee Machine product and its derivatives, to which this declaration relates Model: TERRY TECH is in conformity with the following standards: CEI EN 50366 : 2004 CEI EN 60335 - 1 A55 : 1993...
-
Page 3: Table Of Contents
i nd e x 0 - I N T R O D U C T I O N 0.1 - Foreword 0.2 - Symbols 0.3 - Basic safety warnings 0.4 - Protection covers 0.5 - Safety precautions to follow when repairing or servicing the coffee maker 21 0.6 - Practical tips for brewing a quality cup of coffee 1 - T E C H N I C A L D E T A I L S 1.1 - General information 1.2 - Receiving the coffee maker and unpacking 1.3 - Positioning and installation... -
Page 4: Foreword
0 - int r od uc t io n 0 . 1 - F O R E W O R D These OPERATING INSTRUCTIONS are a guide to using and maintaining the GRIMAC TERRY TECH pod coffee maker. Before USING OR SERVICING the coffee maker, read this MANUAL carefully and thoroughly. -
Page 5: Basic Safety Warnings
0 - i nt r o du c t io n 0 . 3 - B A S I C S A F E T Y W A R N I N G S • The TERRY TECH pod coffee maker is designed for the specific purpose described herein and any other use or the use of other products which were not approved at the time of purchase of this coffee maker, GRIMAC srl shall not be held responsible nor liable for injury to persons, animals or damage to things caused by an incorrect or improper use. THE PREMISES WIRING SYSTEM MUST BE EARTHED. -
Page 6: Safety Precautions To Follow When Repairing Or Servicing The Coffee Maker
ch a pte r 0 - int r od uc t io n 0 . 5 - S A F E T Y P R E C A U T I O N S T O F O L L O W W H E N R E P A I R I N G O R S E R V I C I N G T H E C O F F E E M A K E R • Switch off the coffee maker and disconnect the plug at the mains socket-outlet before performing routine maintenance, repair work or cleaning. -
Page 7: General Information
1 . 2 - R E C E I V I N G T H E C O F F E E M A K E R A N D U N PA C K I N G The TERRY TECH pod coffee maker is packed in a box to protect it from damage when handling. To remove the coffee maker from its packaging, open the box and remove the cardboard protection and with both hands grip the coffee maker at the bottom and gently and slowly lift it out of the box. Place the coffee maker on a flat surface or table before proceeding with installation. Before using the coffee maker check for signs of damage or missing parts. If you have any doubts, contact one of our service centres for further information. The TERRY TECH pod coffee maker before dispatch is tested and packed ready for use by GRIMAC s.r.l.. Any damage or other is the carrier’s sole responsibility. Check the machine carefully upon receipt. In the event of damage or faults, please contact and inform the retailer where you purchased the coffee maker. Before connecting to the mains power supply, check that the mains voltage corresponds to the voltage provided in the technical specifications of the coffee maker. The premises wiring system must be earthed. -
Page 8: Technical Specifications
All handling and carrier costs are at purchaser’s expense. GRIMAC s.r.l. reserves the right to alter and modify its products at any time, and shall not be held responsible nor liable for injury to persons or animals or damage to things caused by neglect in observing the provisions provided in this manual. -
Page 9: General Description
ch a pte r 2 - ge ne r a l de s cr ip ti on 2 . 1 - G E N E R A L D E S C R I P T I O N The TERRY TECH pod coffee maker is supplied with the following parts: 1) removable tank lid 2) main ON/OFF switch 3) single serving button... -
Page 10: Controls And Control Functions
ch a pte r 3 - us ing t he c of f ee ma k e r 3 . 1 - C O N T R O L S A N D C O N T R O L F U N C T I O N S •... -
Page 11: Malfunctions
- worn seal: check the seal on the top half of the pod holder and if worn or damaged replace (fig. 7); - if when dispensing hot water or steam (optional accessory) liquid pours out of the coffee spout check the pod holder lever is pushed to the left as described at point 3.1. We recommend that qualified and authorised personnel perform repair and servicing work and only use GRIMAC original replacement parts. Should malfunctions persist, contact you local GRIMAC authorised service centre. WARNING! Before removing COVERS to access components, ALWAYS disconnect the plug at the mains socket-outlet. Never touch compo- nents with hands, objects or tools if the coffee maker is still connected... -
Page 12: General Checks
ch a pte r 4 - tr o ub l e s ho ot ing an d r e me di e s 4 . 2 - G E N E R A L C H E C K S POWER CABLE (230V GG 3060 - 110V GG 3057) Check the power cable regularly and replace if it is worn or damaged. -
Page 13: Descaling Instructions
c ha pt er 5 - ma int e na nc e - Approx. every 300 coffees, clean the filter by submersing it in a water and salt solution (regeneration). Filter life depends on the hardness of the water. - After approx. 10-12 months replace with a new filter. EXTERNAL HOUSING: to keep external housing clean, use a sponge or cloth soaked with a cleaning product - neutral detergent. Do not use solvents, abrasive powders, or scouring pads to clean. 5 . -
Page 14: Changing Coffee Brewing Time, Temperature And Language Settings
c h apte r 5 - ma int e n an c e 5 . 3 - C H A N G I N G C O F F E E B R E W I N G T I M E , T E M P E R A T U R E A N D L A N G U A G E S E T T I N G S Standard model: By following these simple steps, it is possible to modify single or double coffee brewing... -
Page 15: S P A R E P A R T S
• At this point the prompt “SINGLE SERVING TIME” will come up on the display: use buttons 1 and 2 to modify settings and utilising button 3 confirm desired brewing time. Repeat these steps for modifying brewing time settings for double serving and water; • Once having modified and confirmed new settings, remove the chip card and use the coffee maker as normal. N.B. Only change settings with the coffee maker in temperature. c ha pt er 6 - s p a re p a r t s Only replace worn or damaged parts with ORIGINAL GRIMAC SPARE PARTS. Spare parts can purchased from our service centres. GRIMAC shall not be held responsible for malfunctions and failures in TERRY TECH pod coffee makers if non-original replacement parts have been fitted. All repair work must be preformed only by our authorised service centres.
