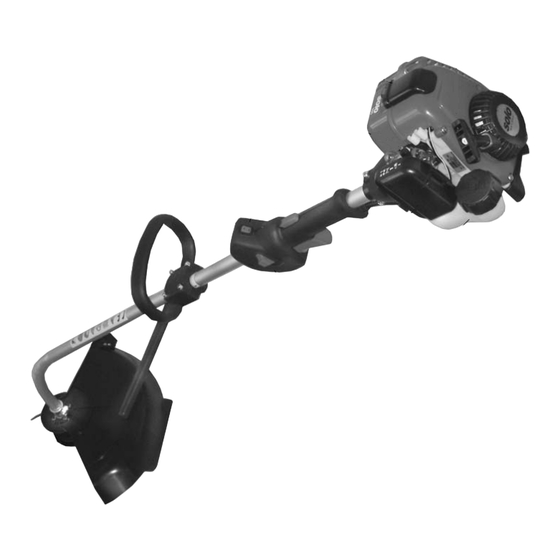

- Page 1 Brushcutter Instruction manual Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 105 104 english 12/2006...
- Page 2 Preface Symbols Dear Customer, The following symbols are used in this manual and on the product: Congratulations for choosing this SOLO quality product. Thoroughly read these operating The proven technology used in the Nikasil- instructions before undertaking any coated vertical cylinder 2-cycle engine guarantees maintenance, installation and cleaning high performance and low fuel consumption.
-
Page 3: Table Of Contents
Index Page 1. Safety regulations ........................4 General safety instructions Working clothes Fuelling When transporting the equipment Maintenance and repairs Preparing the equipment for starting Starting Working with the machine 2. Specification ..........................7 3. Standard delivery ........................8 4. Control and function elements ....................8 5. -
Page 4: Safety Regulations
To prevent injuries, always wear suitable clothing and safety equipment when working with this power tool. This clothing should be practically oriented to the application (for example a tight fitting work suit), but should not be confining. SOLO forest and countryside work jacket EN 340 Part no: 99 303 000 + size (2[s] - 6[xxl]) We recommend:... -
Page 5: Fuelling
Safety regulations 1.3 Fuelling Petrol is very light and highly flammable. Keep away from open flames and never spill fuel. Do not smoke at the operating site or at and near the refuelling site! • Stop the engine prior to refuelling. •... -
Page 6: Working With The Machine
Safety regulations 1.8 Working with the machine • Only use this power tool when it is complete and in a safe condition. As soon as the engine is running, the power tool generates toxic gases, which may be invisible and odourless. Never work with the power tool in enclosed spaces. -
Page 7: Specification
Specification 2. Specification Engine type SOLO single cylinder two-stroke engine Engine capacity Engine power kW at rpm 0,7 / 7500 Max. permissible speed 8200±100 no load with cutter Medium idling speed 2800±100 Fuel tank capacity Fuel mix ratio: with "SOLO 2T engine oil"... -
Page 8: Standard Delivery
Standard delivery ; Control and function elements 3. Standard delivery • Brushcutter partially assembled; the following components are supplied separately and require assembly • Handle and all parts required to complete the assembly • Guard, Guard bar, line trimmer and all parts required to assemble the shield •... -
Page 9: Preparing The Equipment For Use
Preparing the equipment for use 5. Preparing the equipment for use Please note: Never start the brush cutter without fitted line trimming blade. For shipping purposes, the brushcutter is partly To replace the line head, unwind it, with the drive disassembled and has to be reassembled prior to shaft blocked, by rotating it anti-clockwise. -
Page 10: Fuelling
• Press throttle lever (2) fully down. After that we recommend a ratio of 1:50 (2%) with the use of special two-stroke oil "SOLO 2T engine • Press the half throttle lock (4), and let the oil" which we can supply. -
Page 11: Starting
Starting / Stopping the engine 7.3 Starting 7.4 Engine will not start: Observe the safety instructions when starting. If the engine fails to start after several attempts, check whether all adjustments described above have Fig. 9 been correctly carried out, particularly that the stop switch is not in the "OFF"... -
Page 12: Using Your Brushcutter
Using your brushcutter 8. Using your brushcutter Immediately switch OFF the motor, if you notice any unusual vibrations or cuttings have wrapped themselves around the cutting tool or have jammed 8.1 Scope of Application near the guard. Reduce the cutting tool speed by pushing the cutter down onto the ground, until it Only use brushcutters equipped with a nylon head has come to a complete standstill. -
Page 13: Operating And Maintenance Instructions
Operating and maintenance instructions 9. Operating and maintenance 9.3 Information about the spark plug instructions Check the spark plug regularly after 50 hours of operation. 9.1 General operating and maintenance • Remove the spark plug cover. instructions • Disconnect the spark plug cap. •... -
Page 14: Carburettor Adjustment
Operating and maintenance instructions The following instructions are for authorised 9.4 Carburettor adjustment service shops The carburettor has been adjusted optimally at the D-CUT carburettors: factory. Subject to the operational altitude Use the D-CUT carburettor key to adjust the idle (mountains or low lying areas), the carburettor may mixture screw "L"... -
Page 15: Replacing The Fuel Filter
Operating and maintenance instructions 9.7 Information about the silencer Fig. 14 Ensure the silencer is in perfect condition before operating the machine. Never touch the silencer while it is still hot. Unsatisfactory engine performance, despite a clean air filter and a correctly adjusted carburettor, may well be due to a partially blocked or damaged silencer. -
Page 16: Scheduled Maintenance
Operating and maintenance instructions 9.9 Scheduled maintenance The following information is based on standard operating conditions. For special conditions, such as prolonged daily use, the recommended maintenance intervals should be reduced accordingly. Carburettor Check idling speed Adjust idling speed Air filter Clean Replace Spark plug... -
Page 17: Accessories / Spare Parts
• Damage caused by incorrect carburettor SOLO face/ear protection pack 99 390 1001 adjustment. SOLO forest and countryside work 99 303 000 + • Wear in normal use. jacket EN 340 size (2[s] - 6[xxl]) • Obvious overload by continuously exceeding... - Page 18 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-301-130 +49-7031-301-149 info@solo-germany.com export@solo-germany.com...
