U S E R M A N U A L

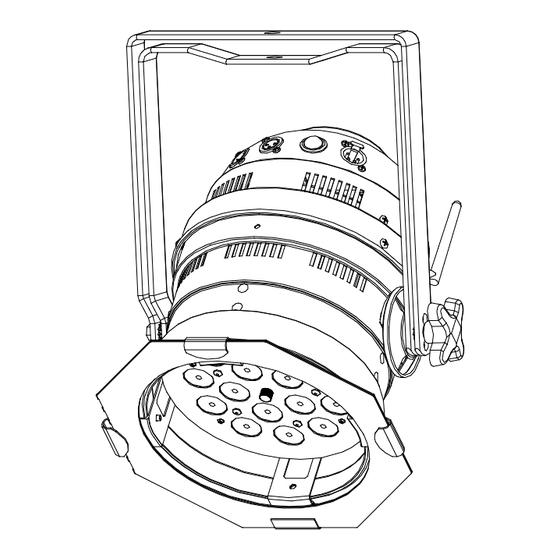

LED Accu PAR 64 Floor RGB+W

Advertisement

Table of Contents
loading

Related Manuals for Ignition LED Accu PAR 64 Floor RGB+W

Summary of Contents for Ignition LED Accu PAR 64 Floor RGB+W

  • Page 1 U S E R M A N U A L LED Accu PAR 64 Floor RGB+W...

  • Page 2: Table Of Contents

    L E D A C C U P A R Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 operating instructions ........................5 2.1. DMX address ........................... 6 2.2. battery status ........................... 6 2.3. Set up for LED power mode ....................

  • Page 3: Safety Instructions

    L E D A C C U P A R 1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. •...
  • Page 4 L E D A C C U P A R Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. All electrical and mechanical connections have to be carried out according to the European safety standards.

  • Page 5: Operating Instructions

    L E D A C C U P A R A safety rope which already held the strain of a crash or which is defective must not be used again. Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws. DANGER TO LIFE! Before taking into operation for the first time, the installation has to be approved by an expert!

  • Page 6: Dmx Address

    L E D A C C U P A R 2.1. DMX address Defined the DMX start address from 001 to 512 2.2. battery status This show´ s you the status from the batter from 0 – 100% 2.3. Set up for LED power mode When you choose the LED power mode “high”, the dimmer can work up to 100%.

  • Page 7: Set Up Disp On Or Off

    L E D A C C U P A R Sets the maximum intensity of the color blue from 0-100% This setting overwrites every other setting like the max output in manual or DMX mode and the built in programs. (white adjustment) Sets the maximum intensity of the color white from 0-100%...

  • Page 8: Reset The Wdmx

    L E D A C C U P A R Here you can switch of the wireless DMX. Now the Accu Par needs no extra power for WDMX any more 2.7.1. 11. Reset the WDMX Push DOWN to reset the WDMX an cut all connections 2.8.

  • Page 9: Dmx Control

    L E D A C C U P A R 16. Software Here you can see the current software from your Accu Par. 17. RESET HOLD +/- if you press and hold + / - for more than 3 seconds, the setting SETUPDIM resets to the current setting.
  • Page 10 L E D A C C U P A R DMX MODE 3 channel value function 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT DMX MODE 4 channel value...
  • Page 11 L E D A C C U P A R DMX MODE 6 channel value function 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 WHITE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255...
  • Page 12 L E D A C C U P A R DMX MODE 7 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255 WHITE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT 0-255...
  • Page 13 L E D A C C U P A R DMX SLAVE The unit follows the functions of the master device. PROGRAM MODE program function color change sequence 1 (4 colors) color change sequence 1 (8 colors) Color transition (4 colors) Color transition (8 colors) strobe program (4 colors) Color change sequence 2 (4 colors)

  • Page 14: Led Indicators At The Backside

    L E D A C C U P A R 4. LED indicators at the backside 1. WDMX Anzeige This indicater shows if the WDMX is switched on. LED off – WDMX off LED flashes quickly - WDMX is connected LED flashes slowly - no DMX signal is present LED is enduring on - WDMX is connected and ready for usage 2.

  • Page 15: Specifications

    L E D A C C U P A R 5. Specifications Power supply: 12V DC max. 65W Power consumption weight: 7,1kg Size (LxWxH): 274 x 285 x 377,5mm 3pin XLR male socke, WDMX Receiver DMX input DMX output 3pin XLR female socket, WDMX Receiver DMX pinout Pin 1: Schirm / Pin 2: - / Pin 3: + DMX channels...
  • Page 16 L E D A C C U P A R Importer: B&K Braun GmbH Industriestraße 1 D-76307 Karlsbad-Ittersbach www.bkbraun.com info@bkbraun.com 16 / 16...
