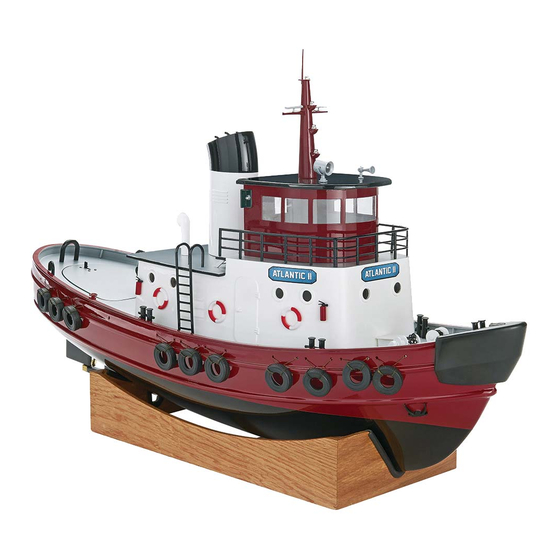

Summary of Contents for AquaCraft Atlantic II
-
Page 2: Items Included
❍ Boat Stand to discharge your pack below the 80% usage target. NOTE: Your Atlantic II Harbor Tugboat’s ESC has a stutter Parts Needed to Complete Your Model bump warning system that warns you of low battery voltage. -
Page 3: Warranty Service
Keep in mind that the boat could be carried to the opposite shore. When surveying areas to run your AquaCraft will warranty your Atlantic II for 90 days after the boat, keep variables in mind such as wind direction and lake purchase from defects in materials or workmanship of original size. -
Page 4: Assembly Sequence
Understanding Your Transmitter To help you better understand your transmitter and its functions, here is a picture outlying the operation features, servo reversing and receiver assignments (* not used with this product). To remove the cabin slide the “tool box” forward near the front of the cabin. - Page 5 Next install the accessories. You will find them packaged in a small plastic bag attached to the light mast. Remove the bag and the accessories inside. Install the RF antenna on the port side of the light mast. Carefully slide this in place. If you want, you can place a small dab of glue (medium CA glue or plastic model cement) to help hold the part in place.
- Page 6 Install the battery into the boat as shown. Do not hook up the main power battery until you are ready to operate the boat! Install the Battery in the Atlantic II Next install two AA batteries into the battery holder located on the radio tray.
-
Page 7: Operation
Operation With the transmitter on, plug a fully charged battery into the ESC. You will hear the motor beep three times letting you know the motor and ESC have power. Moving the left stick forward should result in counter clockwise rotation of the propeller. Moving the stick back should result in the propeller turning clockwise. -
Page 8: Ordering Replacement Parts
Ordering Replacement Parts Parts List To order replacement parts for the AquaCraft Atlantic II, use AQUB7760 3-Blade Metal Prop w/Nut the order numbers in the replacement parts list. Replacement AQUB7853 Drive Shaft parts can be purchased from your local hobby shop or by mail...
