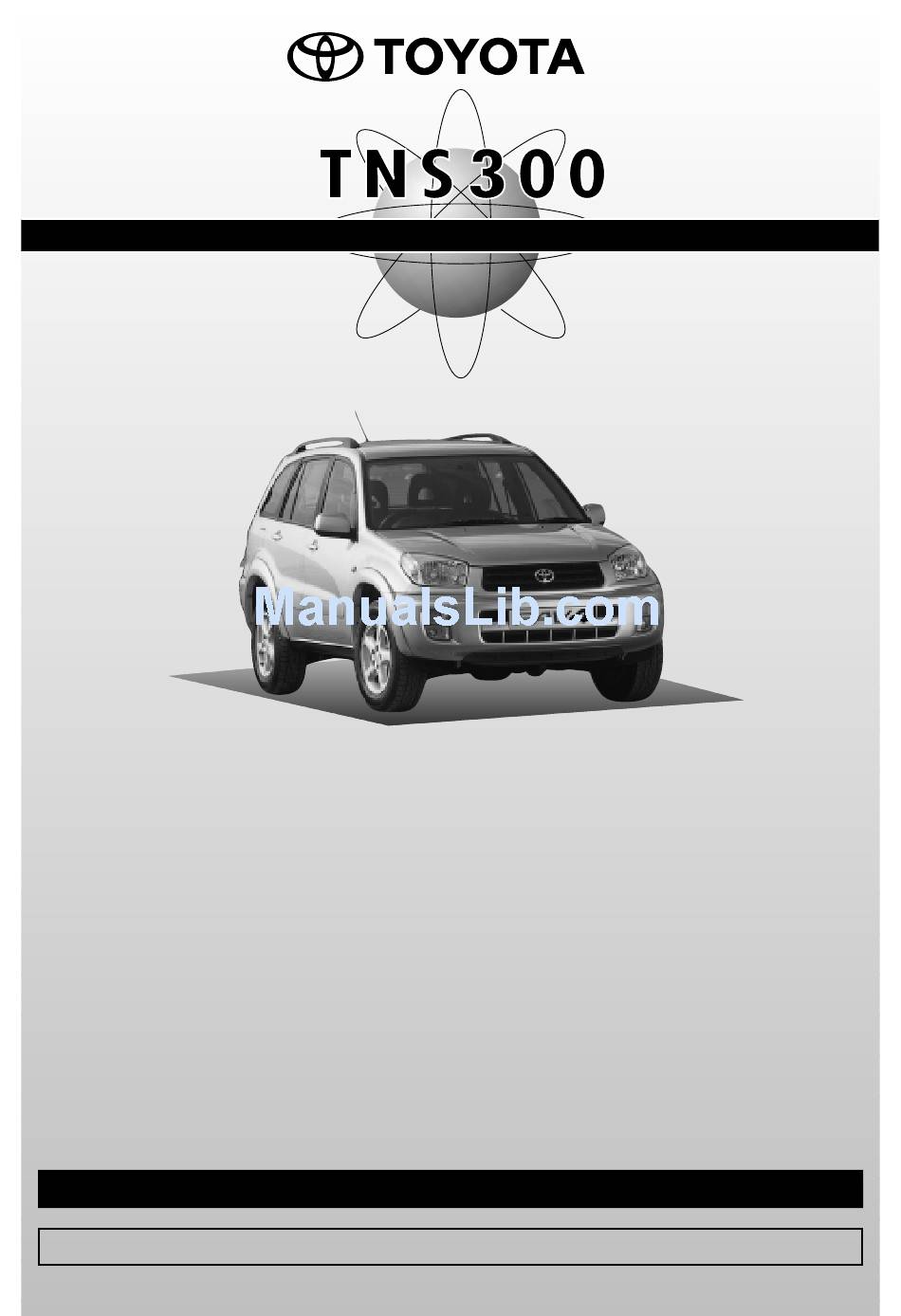

- Page 1 T O Y O T A N A V I G A T I O N S Y S T E M RAV4 (RHD) INSTALLATION INSTRUCTIONS ** A2 * R PART NUMBER 08545-00805 NAVIGATION KIT TOYOTA MOTOR CORPORATION Manual ref. n° N3RA2/W-0-0...
-
Page 2: Precautions
RAV4 (A2) TNS300 PRECAUTIONS PLEASE READ THOROUGHLY THESE PRECAUTIONS BEFORE THE INSTALLATION • Be sure to disconnect the negative • Protect your car with fender cov- (-) lead from the battery terminals. ers, seat and so on. • Do not pinch the rear wiring or har- •... -
Page 3: Table Of Contents
RAV4 (A2) TNS300 TABLE OF CONTENTS Precautions ................................... Application Chart ................................Component Parts ................................Required Parts ................................Wiring Connection ................................Installation Overview ..............................Vehicle Disassembly ............................... Installation of the GPS-Antenna ............................ Wire Harness Installation ............................... Installation of the Computer ............................Installation of Navigation Disc ............................ -
Page 4: Application Chart
p. 1/2... - Page 5 p. 2/2...
-
Page 6: Component Parts
RAV4 (A2) TNS300 COMPONENT PARTS 08545-00805 Part name Quantity COMPUTER WIRE HARNESS GPS-ANTENNA COMPUTER BRACKET BOLT (M5x8) CORD CLAMP FOAM WIRE TIE EARTH PLATE BUTYL TAPE 04-03 RAV4 (RHD) - 6... -
Page 7: Required Parts
RAV4 (A2) TNS300 REQUIRED PARTS NAVIGATION DISC To be ordered separately. Please refer to the list of available discs for Turn by Turn Navigation Systems (Access to accessories). OWNER’S MANUAL To be ordered separately. RAV4 (RHD) - 7 04-03... -
Page 8: Wiring Connection
RAV4 (A2) TNS300 WIRING CONNECTION Connection Method: CASSETTE TAPE PLAYER TYPE Cassette tuner with multi-display Splicing Connector (Reverse Sensor Wire) Vehicle Wire harness GPS-Antenna Splicing Connector (Speed Sensor Wire) Splicing Connector Wire) Splicing Connector (TX Wire) CD PLAYER TYPE Splicing connector (TX+ wire) CD tuner with GPS-antenna... -
Page 9: Installation Overview
RAV4 (A2) TNS300 INSTALLATION OVERVIEW GPS-Antenna TX+ Wire TX- Wire Excess main wire harness Excess antenna cord WIRE HARNESS - SPEED LINE (VIOLET/WHITE) WIRE HARNESS ANTENNA CORD WIRE HARNESS REVERSE SENSOR WIRE (RED/BLUE) RAV4 (RHD) - 9 04-03... -
Page 10: Vehicle Disassembly
RAV4 (A2) TNS300 VEHICLE DISASSEMBLY Remove the battery cover to dis- connect the battery. : Clip (1x) : Clip (5x) Fig. 1 Remove the front door scuff plate (L) : Hook (3 door :15x / 5 door :11x) Fig. 2 Remove the kick panel (L) : Hook (2x) : Nut (1x) - Page 11 RAV4 (A2) TNS300 Remove the instrument panel finish upper panel : Clip (1x) : Hook (4x) Fig. 4 Remove the instrument finish lower panel : Hook (2x) : Screw (3x) : Clip (3x) Fig. 5 Remove the steering column lower cover : Hook (4x) : Screw (3x)
- Page 12 RAV4 (A2) TNS300 Remove the centre lower cover (L) : Hook (2x) : Clip (1x) Fig. 7 Remove the meter cluster panel : Hook (4x) : Clip (3x) Fig. 8 Remove the centre cluster panel : Bolt (4x) : Clip (3x) Fig.
- Page 13 RAV4 (A2) TNS300 10. Remove the CD (Cassette) tuner with multi display : Bolt (4x) Fig. 10 11. Remove the passenger’s seat : Cover (2x) : Bolt (4x) CAUTION Fasten the bolt with specified torque wrench (25 N.m) when reassembling. CAUTION Carefully disconnect the airbag connec- tor.
-
Page 14: Installation Of The Gps-Antenna
RAV4 (A2) TNS300 INSTALLATION OF THE GPS-ANTENNA Cut the foam into 2 large pieces and 14 small pieces as shown in the illustra- tion. -a: Foam tape (2x) -b: Foam tape (14x) x 14 Fig. 12 Cut one butyl tape into 2 equal sized pieces. - Page 15 RAV4 (A2) TNS300 Attach the earth plate to the meter cluster panel as shown and mount the GPS-antenna to the earth plate CAUTION Clean the installation position surface before attaching the earth plate Fix the antenna cord using the foam -b (2x).
- Page 16 RAV4 (A2) TNS300 Route the antenna cord as shown in the illustration. According to the illustration , push down the lower steering column cover , and return the meter cluster its original position, without rubbing the GPS-antenna against the instrument panel CAUTION Be careful not to slip away the GPS-...
-
Page 17: Wire Harness Installation
RAV4 (A2) TNS300 WIRE HARNESS INSTALLATION Route the wire harness and GPS- antenna along the midconsole area to the ECU location. Fig. 17 The connectors shown in the illustration are the vehicle side connectors to be spliced. Fig. 18 l l WIRE SPLICING CONNECTOR INSTRUCTIONS Remove appropriate amount of tape wrapping the vehicle side harness to be... - Page 18 RAV4 (A2) TNS300 l l TX WIRE CONNECTION Turn the connector so that the wires face you and the tab is on top. Connect the TX(+) wire (yellow) of the wire harness to the wire of the third TX + TX - position from the left side of the bottom WIRE SIDE VIEW row.
- Page 19 RAV4 (A2) TNS300 Turn the connector so that the wires WIRE SIDE VIEW face you and the tab is to the left. Connect the reverse sensor wire (red/blue) of the wire harness to the wire of the second position from the left side of the bottom row.
- Page 20 RAV4 (A2) TNS300 Vehicle wire harness Attach the wire harness and anten- na cord to the reinforcement and vehicle wire harness using the wire ties (3x). Bundle and attach the excess main wire harness using foam -a (2x) as shown. Reinforcement Excess main wire harness...
-
Page 21: Installation Of The Computer
RAV4 (A2) TNS300 INSTALLATION OF THE COMPUTER Cut the butyl tape into 2 large pieces and 2 small pieces as shown. Attach the butyl tape to the bottom of the brackets : Bolt (M5x8) (4x) CAUTION Do not remove the release paper on the bottom of the butyl tape yet. - Page 22 RAV4 (A2) TNS300 Route the main wire harness antenna cord through the carpet. Attach the butyl tape to the vehicle floor as shown. Cut out the insulation mat according the dimensions indicated and put it on top of the butyl tape Cut out Fig.
- Page 23 RAV4 (A2) TNS300 Connect the 1P connector (GPS-anten- na), 8P connector and 13P connector (wire harness) to the computer Push in the slitted carpet under the computer Fig. 32 ENSURE THAT ALL REMOVED CONNECTORS ARE PUT BACK CORRECTLY. REFIT THE TRIM AND REMOVED PARTS. RAV4 (RHD) - 23 04-03...
-
Page 24: Installation Of Navigation Disc
RAV4 (A2) TNS300 INSTALLATION OF NAVIGATION DISC Connect the battery and turn the igni- tion switch to the ACC position. Slide the eject switch on the computer to the left to open the disc insertion slot. With the label side of the disc facing up, insert the Navigation Disc into the disc insertion slot. -
Page 25: Post-Installation Inspection
4. Perform the “auto-compensation” procedure by following the section on “When Tires are Replaced” in the TNS300 Owner’s Manual. When an abnormality is suspected, perform troubleshooting based on the “Toyota Genuine Navigation System Service Manual”. REASSEMBLING Return all vehicle parts that have been removed to their original locations. Especially make sure to attach trim and other inte- rior materials properly so that they do not have a detrimental effect on the function of the vehicle. - Page 26 GENUINE PARTS...
