Mounting The Liner - Zephyr Vortex AK9028AS Use, Care And Installation Manual

stainless steel screws. FIG. 2.
WARNING: Make sure the surface you are securing the liner to is capable of holding the
weight of AK90. Failure to do so may cause personal injury or damage to cooking surface
or counter. Wood blocking may need to be added to custom hood base if additional
support is needed.
1
flange

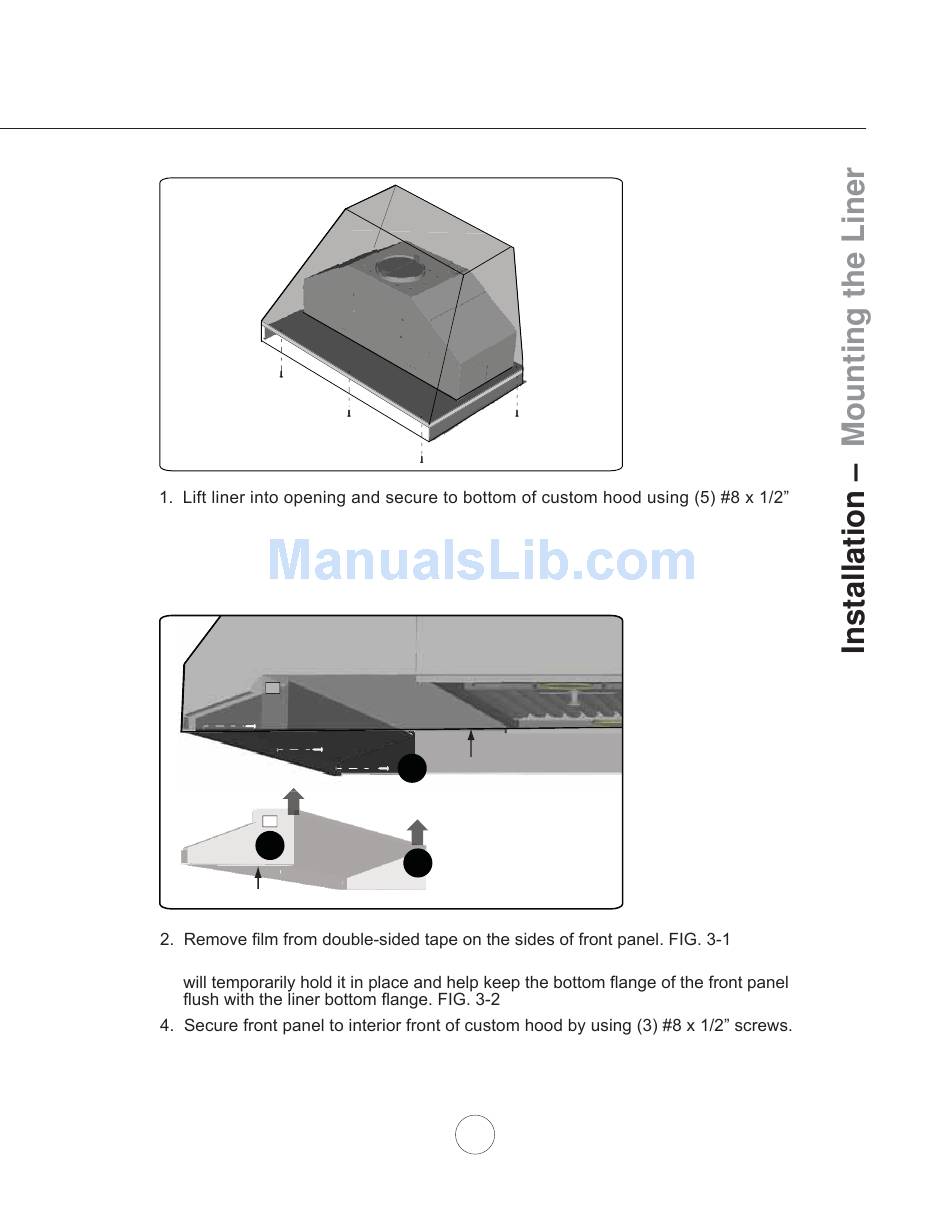

3. Lift front panel up and slide into the nose of the custom hood base. The tape
FIG. 3-3
5. Return to Page 10, Step 5 to complete installation.
FIG. 2
liner flange
3
2
FIG. 3
