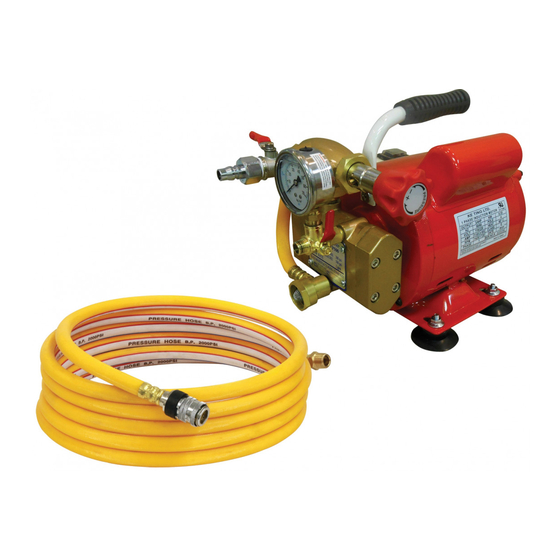

REED EHTP500 Operator's Manual
Power hydrostatic test pumps
Hide thumbs
Also See for EHTP500:
- Operator's manual (4 pages) ,
- Operator's manual (12 pages) ,
- Operator's manual (12 pages)
Advertisement
Quick Links

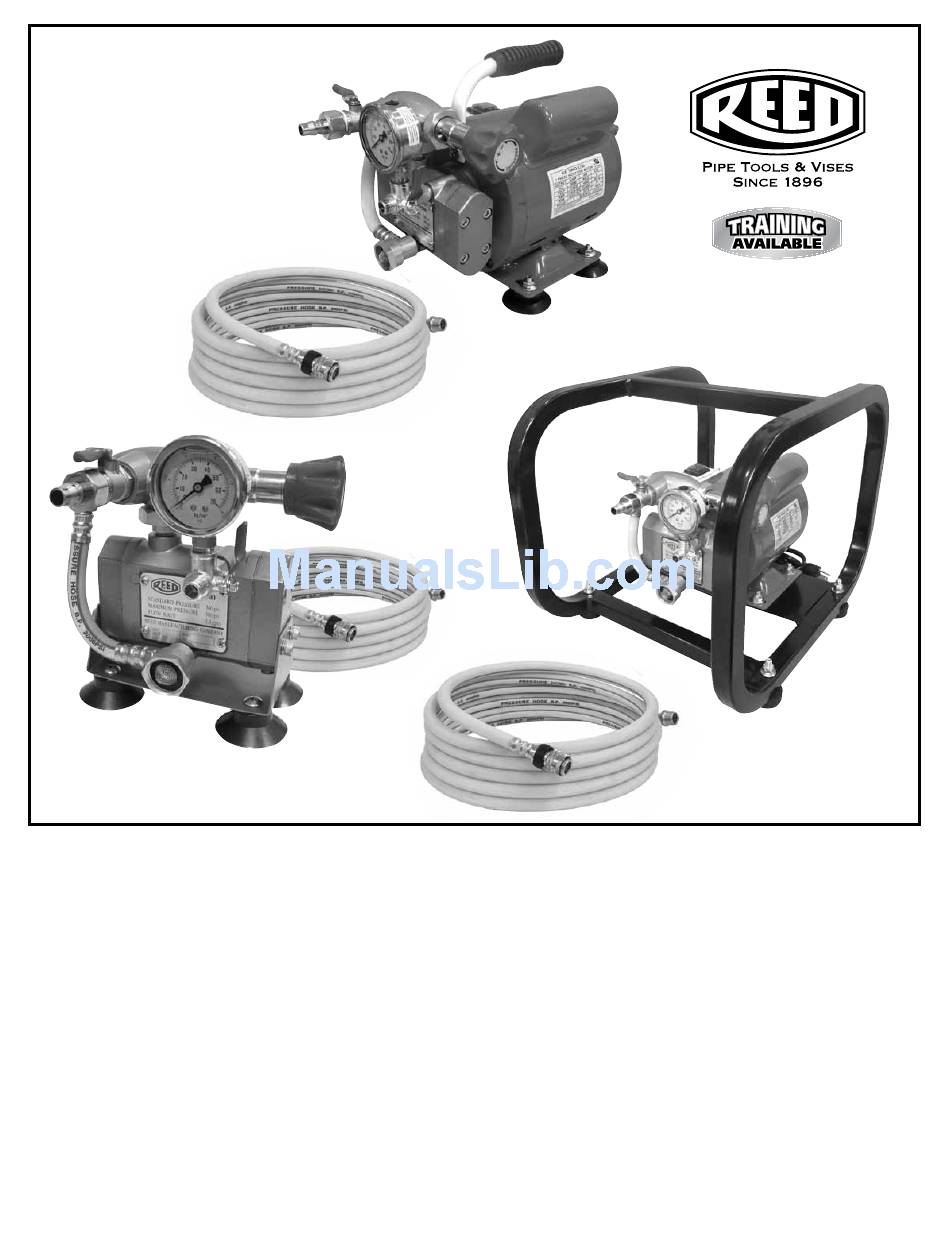

DPHTP500
Power
Hydrostatic Test Pumps
Operator's Manual
EHTP500, EHTP500C,EHTP500E,
EHTP500CE, DPHTP500 models
EHTP500
REED MANUFACTURING COMPANY
1425 West Eighth St.
PHONE: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
SAVE THESE
INSTRUCTIONS!
Erie, PA 16502 USA
EHTP500C
0613-58170
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for REED EHTP500
Summary of Contents for REED EHTP500
- Page 1 EHTP500 EHTP500C DPHTP500 Power Hydrostatic Test Pumps Operator’s Manual SAVE THESE EHTP500, EHTP500C,EHTP500E, INSTRUCTIONS! EHTP500CE, DPHTP500 models REED MANUFACTURING COMPANY 1425 West Eighth St. Erie, PA 16502 USA PHONE: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697 www.reedmfgco.com 0613-58170...
-
Page 2: Operating Instructions
POWER HYDROSTATIC TEST PUMP OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS: 3. Setting the pressure. A. Plug in the cord and turn on the pump (EHTP500) or 1. Prime the Pump. A. From a Pressurized Supply attach ½” electric or cordless drill to shaft on back of pump (DPHTP500). DPHTP500 pump can be driven in • Connect a garden hose to the garden hose fitting, either the clockwise or counterclockwise direction. making sure the attachment is snug. B. Run the pump for a few seconds to be sure it is • Attach the high pressure hose to the quick connect on pumping fluid into the system. Close the high pressure the pump. -
Page 3: Pump Specifications
POWER HYDROSTATIC TEST PUMP OPERATING INSTRUCTIONS WARNING: Protect the pump from freezing. Store and EHTP500 ELECTRIC MODELS transport in a warm place. Or use food grade propylene Motor Specifications glycol in the pump to guard against freezing. UL Certified 3/4 HP 0.55KW Single Phase Induction... - Page 4 No warranty claims will be allowed unless the product in question is received freight prepaid at the Reed factory. All warranty claims are limited to repair or replacement, at the option of the company, at no charge to the customer. REED IS NOT LIABLE FOR ANY DAMAgE OF ANY SORT, INCLUDINg INCIDENTAL AND CONSEqUENTIAL DAMAgES.
