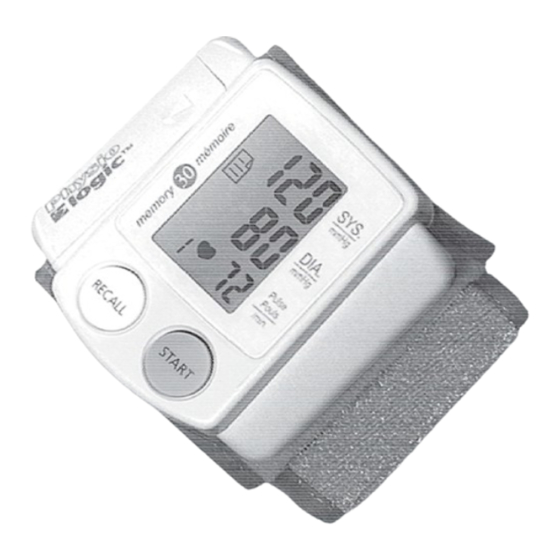

- Page 1 Automatic Wrist Blood Pressure Monitor with Step Valve Technology Instruction Manual Features: • Step Valve Technology • Memory for up to 30 readings • One-Touch Operation • Easy-to-read Display • Auto Shut-Off 106-965...
-
Page 2: Table Of Contents
Table of Contents Step valve measuring technology ......3 Statement of accuracy ....... . . 3 About blood pressure . -
Page 3: Step Valve Measuring Technology
Step Valve Measuring Technology This Physio Logic™ monitor uses the oscillometric method to detect your blood pressure. Before the cuff starts inflating, the device will establish a baseline cuff pressure equivalent to the air pressure. Your Physio Logic™ monitor will determine the appropriate inflation level based on your pressure oscillations, followed by cuff deflation. -
Page 4: Blood Pressure Standard
Blood Pressure Standard The World Health Organization (WHO) and the National High Blood Pressure Education Program Coordinating Committee have developed a blood pressure standard, in which areas of low and high risk blood pressure are identified. This standard is a guideline as blood pressure varies among different people and different age groups. -
Page 5: Before Taking A Measurement
Before Taking a Measurement To help you obtain more accurate readings: • Urinate if necessary. • Remove any clothing and jewellery from your left arm. Placing the cuff on anything other than bare skin can result in an inaccurate reading. •... -
Page 6: Name / Function Of Each Part
Name / Function of Each Part LCD display Wrist cuff Battery cover Memory Recall key Start key 2 “AAA” size, 1.5 V Alkaline batteries... -
Page 7: Installing Batteries
Installing Batteries 1. Slide battery cover off. 2. Install lower battery first. Ensure correct polarity. Battery type: 2Alkaline 1.5 V LR03 (AAA) size. 3. Replace the battery cover. Replace batteries when: 1. Low battery icon appears on display. 2. Nothing appears in the display when the power is switched on. -
Page 8: Display Explanation
Display Explanation Systolic pressure Memory mark Diastolic pressure Weak battery mark Pulse rate No. of memory sequence Appears when a Shows the pulse rate per measurement value is minute. stored in memory or is recalled from memory. Occurs when an error was made during measurement. -
Page 9: Applying The Arm Cuff
Applying the Arm Cuff 1. Remove all watches, jewellery, etc. Fig. A prior to attaching the wrist monitor. Clothing sleeves should be rolled up and the cuff should be wrapped on bare skin for correct measurements. 2. Apply cuff to the left wrist with the Fig. -
Page 10: Taking A Measurement
Taking a Measurement 1. Wrap the cuff on the wrist. Press the START key. All digits will light up checking the display functions (see fig.1) . This will take approximately 2 seconds. 2. After all the symbols appear, the display will show a “0”... -
Page 11: Troubleshooting
Troubleshooting Symptom: No display when the START button is pressed. Correction: If the batteries have run down, replace them with new alkaline batteries. If the batteries are not in the correct position, re-insert them with the correct polarities. Symptom: mark shown on display or the blood pressure value is displayed excessively low (high). -
Page 12: Specifications
Specifications Measurement method : Oscillometric Measurement range : Pressure: 20 to 280 mmHg ; Pulse: 40 to 180 beats / min. Pressure sensor : Semi conductor Accuracy : Pressure: ± 3 mmHg; Pulse: ± 5 % of reading Inflation : Pump driven Deflation : Automatic pressure release valve Memory...
