Physio Logic 106-975 Instruction Manual

Automatic wrist blood pressure monitor with smart valve technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
Features:
• Smart Valve Technology
• Memory for up to 90 Readings
• 3-Reading Averaging
• Time and Date Display
• One-Touch Operation
• Easy-to-read Display
• Auto Shut-Off
• BP Manager Software
• USB Data Transfer to PC

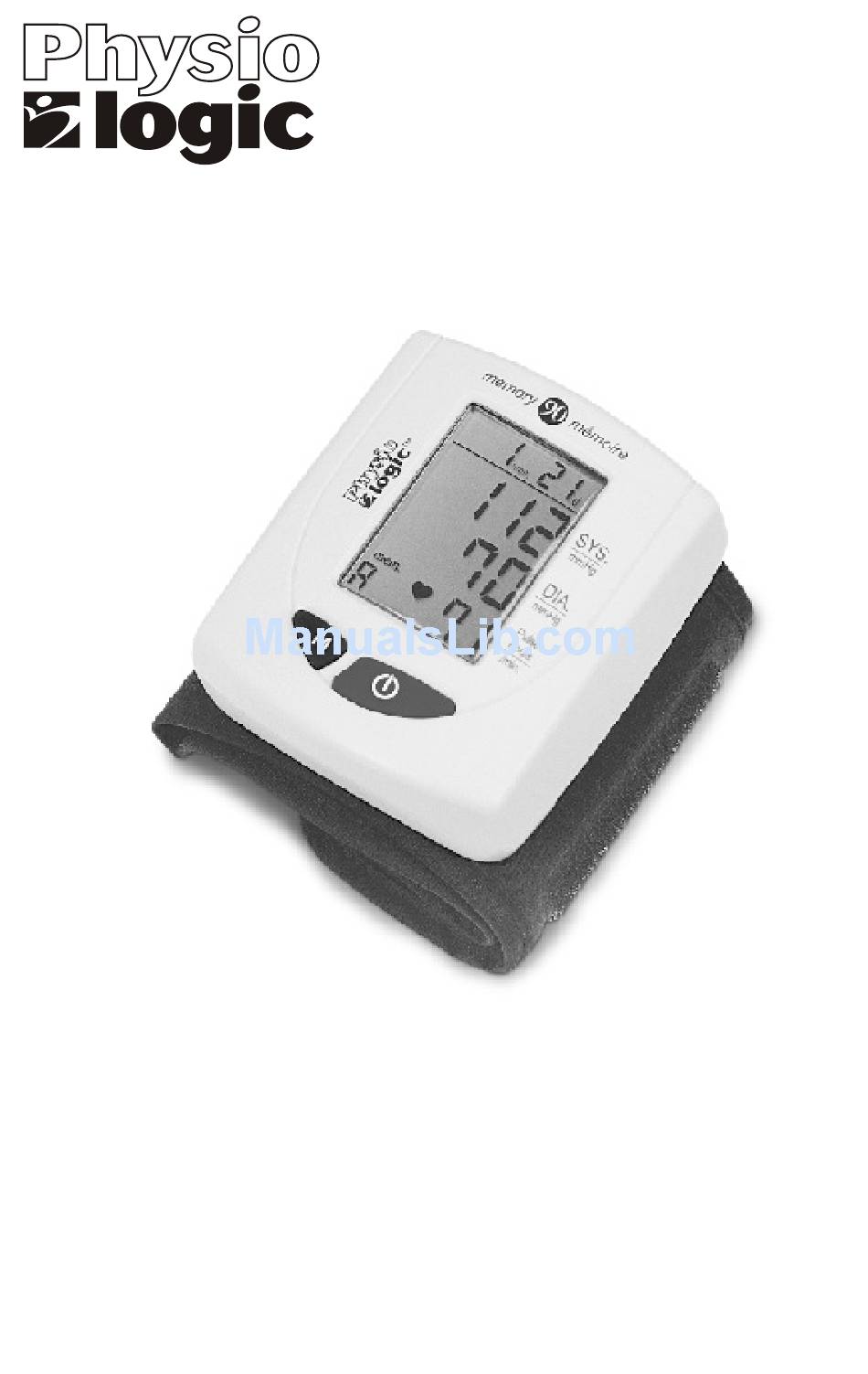

Automatic Wrist
Blood Pressure Monitor
®
with Smart Valve Technology
106-975

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 106-975 and is the answer not in the manual?

Questions and answers

Related Manuals for Physio Logic 106-975

Summary of Contents for Physio Logic 106-975

  • Page 1 Features: • Smart Valve Technology • Memory for up to 90 Readings • 3-Reading Averaging • Time and Date Display • One-Touch Operation • Easy-to-read Display • Auto Shut-Off • BP Manager Software • USB Data Transfer to PC 106-975...

  • Page 2: Table Of Contents

    Table of Contents Smart valve measuring technology..... . . 3 Statement of accuracy ....... . . 3 About blood pressure .

  • Page 3: Smart Valve Measuring Technology

    Smart Valve Measuring Technology ® The Physio Logic Smart Valve Wrist blood pressure monitor uses the oscillometric method to detect your blood pressure. Before the cuff starts inflating, the device will establish a baseline cuff pressure, which is equivalent to the air pressure. The measurement of your blood pressure is based on this baseline pressure.

  • Page 4: Blood Pressure Standard

    Blood Pressure Standard The World Health Organization (WHO) and the National High Blood Pressure Education Program Coordinating Committee have developed a blood pressure standard, in which areas of low and high risk blood pressure are identified. This standard is a guideline as blood pressure varies among different people and different age groups.

  • Page 5: Before Taking A Measurement

    Before Taking a Measurement To help you obtain more accurate readings: • Urinate if necessary. • Remove any clothing and jewellery from your left arm. Placing the cuff on anything other than bare skin can result in an inaccurate reading. •...

  • Page 6: Name / Function Of Each Part

    Name / Function of Each Part Date/Time Set key LCD display Battery cover Memory Recall key Wrist Cuff Start/Stop key 2 “AAA” size, 1.5 V Alkaline batteries...

  • Page 7: Installing Batteries

    Installing Batteries 1. Place your thumb on the side of the battery cover. Pull the battery cover in the direction of the cuff to open. 2. Install lower battery first in the bottom position with the battery ribbon underneath. Ensure correct polarity. Battery Type: 2 Alkaline LR03 (AAA) size.

  • Page 8: Display Explanation

    Display Explanation Date / Time indicator Systolic pressure Diastolic pressure Pulse rate No. of memory sequence Shows the number of stored measurements. Pulse Mark: Shows the pulse rate per minute. Appears when batteries should be replaced. Measurement Error (user’s pressure exceeding 250 mmHg or lower than 40 mmHg): Measure again quietly.

  • Page 9: Recalling Memory

    Recalling Memory 1. To read memory values, press the "M" key. The memory values will be shown on the LCD display. The average measurement will be shown first and a new press of the “M” key will show the last measurement. 2.

  • Page 10: Time Adjustment

    Time Adjustment 1. To adjust the date / time in the monitor, press the Set key The display will show a blinking number showing the month. 2. Change the month by pressing the “ ” Key. Each press will increase the number by one in a cycling manner. Press the Set again to confirm the entry, and the screen will show a blinking number representing the date.

  • Page 11: Applying The Arm Cuff

    Applying the Arm Cuff 1. Remove all watches, jewellery, etc. Fig. A prior to attaching the wrist monitor. Clothing sleeves should be rolled up and the cuff should be wrapped on bare skin for correct measurements. Fig. B 2. Apply cuff to the left wrist with the palm facing up as in Figure A.

  • Page 12: Taking A Measurement

    Taking a Measurement 1. Wrap the cuff on the wrist. Press the START key. All digits will light up checking the display functions (see fig.1). This will take approximately 2 seconds. 2. After all the symbols appear, the display will show a “0” (see fig.2). The monitor is now ready to measure.

  • Page 13: Troubleshooting

    Troubleshooting Symptom: No display when the START button is pressed. Correction: If the batteries have run down, replace them with new alkaline batteries. If the batteries are not in the correct position, re-insert them with the correct polarities. Symptom: EE mark shown on display or the blood pressure value is displayed excessively low (high).

  • Page 14: Data Transfer To Pc

    Data Transfer to PC Data transfer accessories: ® 1. Physio Logic BP Manager software CD-Rom (PC compatible) Note: The BP Manager software must be used with Windows 2000 or XP operating systems. 2. USB cable. BP Manager software installation: Place the BP Manager CD-Rom in your computer’s CD-Rom drive and follow instructions on screen.

  • Page 15: Specifications

    Specifications Measurement method : Oscillometric Measurement range : Pressure: 40 to 250 mmHg ; Pulse: 40 to 199 beats / min. Pressure sensor : Semi conductor Accuracy : Pressure: ± 3 mmHg; Pulse: ± 5 % of reading Inflation : Pump driven Deflation : Automatic pressure release valve Memory...
