GE DCVH480EK Technical Service Manual page 15

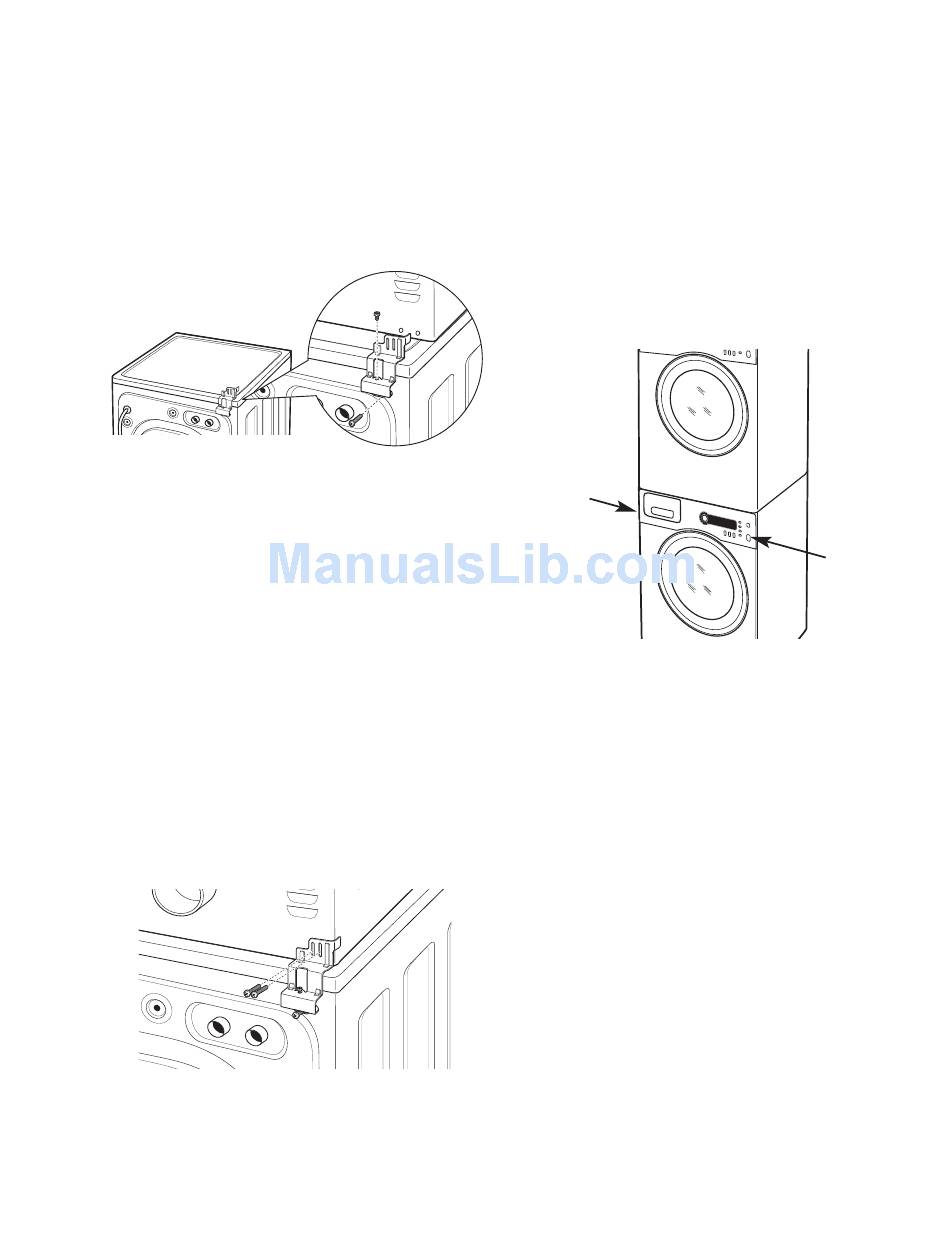

5. Remove washer top cap screw from the rear
left. Align left bracket holes with top cap
screw hole on rear left of the unit and replace
screw. Note: Leave screws loose so dryer hole
alignment will be easier.
6. Drive next screw through the bracket into the
rear of the washer.
7. Repeat the above steps with the right side.
8. Lift the dryer on top of the washer. Protect the
washer control panel with cardboard or other
protection. Be sure to lift the dryer high enough
to clear the washer control panel.
WARNING – Potential Personal Injury. More than
two people are recommended to lift the dryer into
position because of its weight and size. Failure to do
so could result in personal injury or death.
9. Align the holes in the bracket with the holes
in the back of the dryer. Using a Phillips
screwdriver, attach the 2 #8 x 1/2 inch tapping
screws.
10. Tighten the dryer bracket screws; then tighten
all stacking kit screws.
11. Refer to the washer Installation Instructions to
complete the washer installation.
12. Refer to the dryer Installation Instructions to
complete the dryer installation.
13. Carefully slide or walk the stacked washer and
dryer into place. Use felt pads or other sliding
device to assist moving and to protect fl ooring.
WARNING – Potential Personal Injury. Do not push
on the dryer once installed to top of the washer.
Pushing on the dryer may result in pinched fi ngers.
Place
hands
here
– 15 –
Place
hands
here
