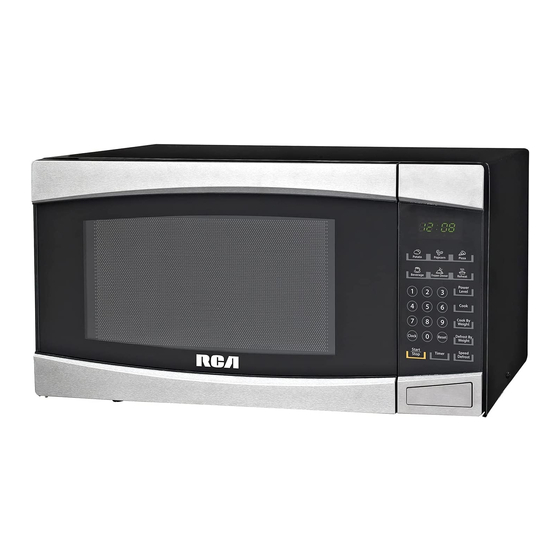

Microwave Oven

RMW1414
1.
Please read these instructions carefully before installing and operating the oven. Keep
them for further reference.
2.
Record in the space below the SERIAL NO. found on the nameplate on your oven and
retain this information for future reference.
SERIAL NO.:
3.
Please save sales receipt for warranty.
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for RCA RMW1414

Summary of Contents for RCA RMW1414

  • Page 1: Microwave Oven

    OWNER’S MANUAL Microwave Oven RMW1414 Please read these instructions carefully before installing and operating the oven. Keep them for further reference. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

  • Page 2: Table Of Contents

    Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 3: Important Safety Instructions

    keep oven door closed, turn oven off, and disconnect the power cord or shut off power When using electrical appliances, basic at the fuse or circuit breaker panel. safety precautions should be followed, including the following: Do not use the cavity for storage purposes.
  • Page 4 14. Do not cover or block any openings on door, use only mild, nonabrasive soaps, the appliance. or detergents applied with a sponge or soft cloth. 15. Do not store or use this appliance outdoors. Do not use this product near 23.

  • Page 5: Installation Guide

    This appliance must be grounded. In the than the electrical rating of the appliance, or event of an electrical short circuit, grounding 2) Do not use an extension cord. If the power reduces risk of electric shock by providing an supply cord is too short, have a qualified escape wire for the electric current.

  • Page 6: Utensils Guide

    If long cord or extension cord is used： electrician or service person. a) The marked electrical rating of the cord Neither the manufacturer nor the dealer can set or extension cord should be at least accept any liability for damage to the oven or as great as the electrical rating of the personal injury resulting from failure to observe appliance.

  • Page 7: Cooking Techniques

     Not Recommended Containers such as margarine tubs can melt in the microwave. Glass jars and bottles — Regular glass is too Metal utensils — These can damage your oven. thin to be used in a microwave. It can shatter Remove all metal before cooking.

  • Page 8: Specifications

    Capacity 1.4 cu.ft Output 1000W Input 120V~60Hz, 1450W 2450MHz Frequency Net weight Approx. 38.1lb. Outer dimensions (HxWxD) 12 1/4×21 3/4×17 9/16 9 13/16×14 13/16×15 7/8 Cavity dimensions (HxWxD) 12 13/16” (32.5 cm) Turntable diameter Door Safety Lock System Oven Window Roller Ring Shaft Door release button...

  • Page 9: Control Panel

    MENU ACTION SCREEN  Cooking time, power, indicators and present time are displayed. QUICK COOK BUTTONS  Instant settings to cook popular foods POWER LEVEL  Use to set power level. To check power level during time cooking, touch POWER pad. TIMER ...

  • Page 10: Setting The Clock

    ONE SIGNAL: Oven accepts the entry. TWO SIGNALS: Oven does not accept the entry, check and try again. 1, 0 100% ETTING THE CLOCK Touch CLOCK pad. Use the number pads to enter the correct time. Touch CLOCK pad again. NOTE: ·This is a 12 hour clock.

  • Page 11: Cook By Weight

    ·For speed defrost and two stage cooking, follow .35 to .40 steps above. Before touching START/STOP, enter .41 to .46 two-stage cooking programs. .47 to .53 .54 to 59 .60 to .65 OOK BY WEIGHT .66 to .71 Touch COOK BY WEIGHT. .72 to .78 Enter the one digit code by touching the correct number pad 1~3.

  • Page 12: Stop Or Cancel A Cooking Program

    To temporarily stop the oven, you can press START/STOP pad once. If you want to cancel the TOP OR CANCEL A COOKING PROGRAM program, then, press RESET pad. The QUICK COOK settings allow you to cook or potatoes: reheat food automatically without entering power Touch POTATO twice.

  • Page 13: Reheat

    pad “1” or “2”: Touch START/STOP. REHEAT Microwaving one large (10-12 oz.) frozen dinner: Touch REHEAT pad. Touch FROZEN DINNER twice. Touch START/STOP. For 1 entree or 2 entrees, touch the number When cleaning surfaces of door and applied with a sponge or soft cloth. microwave oven that come together Turn off microwave oven and unplug when door is closed, use only mild,...
  • Page 14 Keep the inside of the microwave oven washed mild soapy water clean. When food splatters or spilled dishwasher. When removing the roller liquids adhere to oven walls, wipe with ring from cavity floor for cleaning, be a damp cloth. Mild detergent may be sure to replace it in the proper position.
