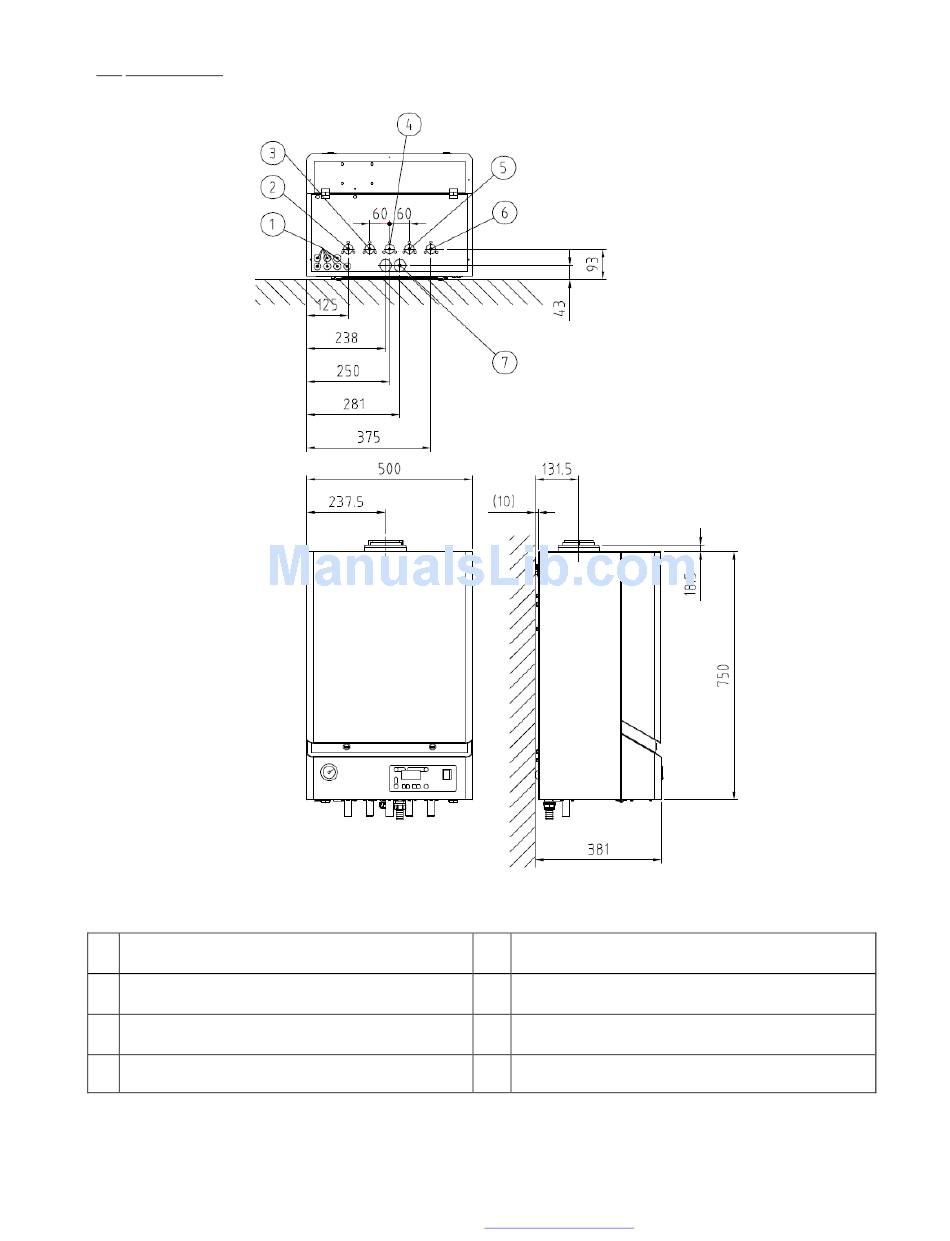

3.0 Dimensions. 16 – 47 Boilers
Legend
1 Cable Entry Grommets
Heating Flow 22mm (All Models)
2
Hot Water Primary Flow 22mm (HS Models)
3
Hot Water Outlet 22mm (S Models)
4 Gas Inlet 22mm
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone 08456 448802 Fax 08456 448803 Email
© MHG Heating Ltd
Hot Water Primary Return 22mm (HS Models)
5
Cold Water Inlet 22mm (S Models)
6 Heating Return 22mm (All Models)
7
7.1 Condensate Cleanout Connection ¾" Cap
info@mhgheating.co.uk
010114
Condensate Outlet ¾" BSP Plastic
