Device Installation

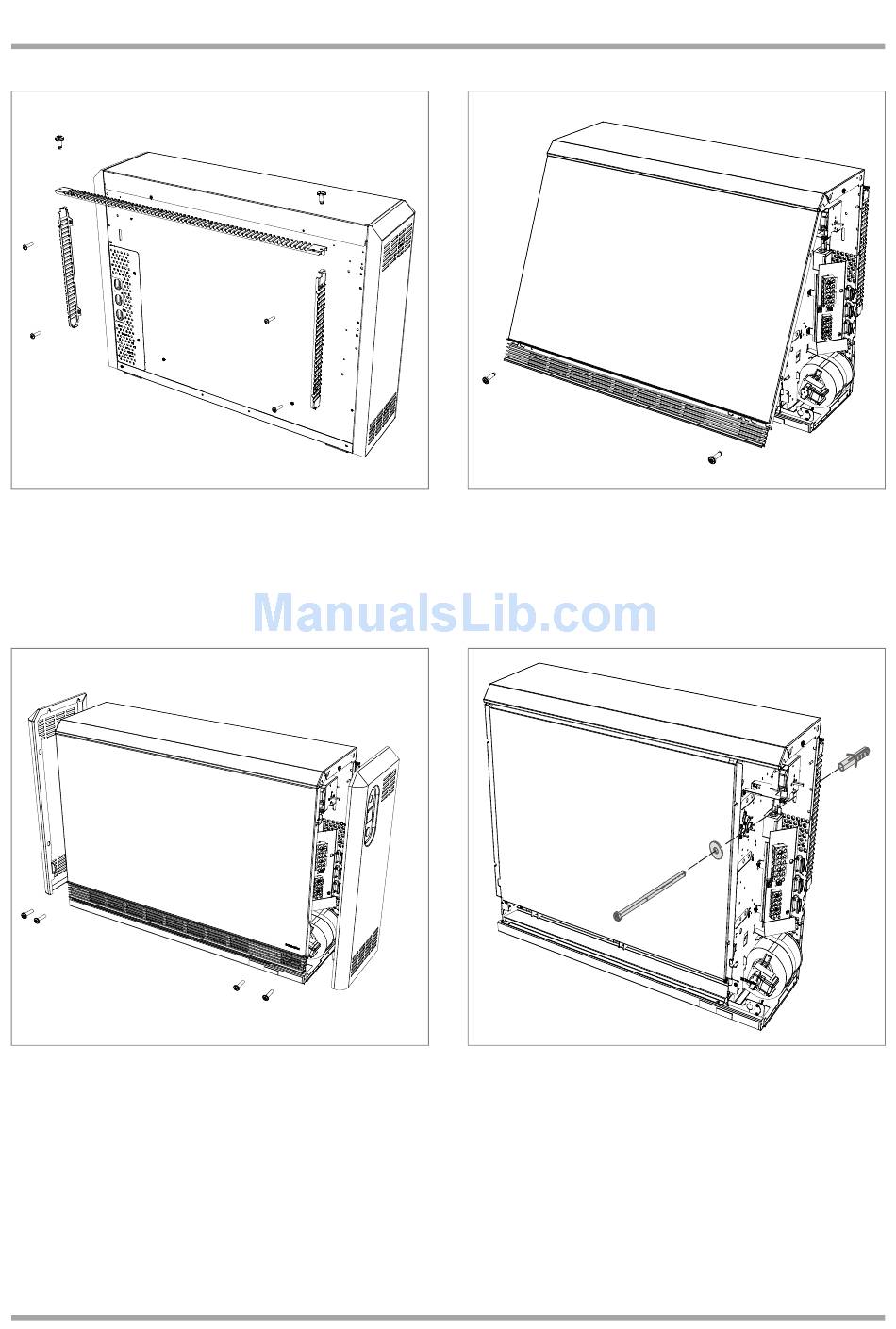

1. Remove the packaging. Dispose of the packaging mate-
rial according to local regulations.
Screw the 2 lateral wall spacers to the device back panel.
Screw the upper wall spacer to the two lateral wall spacers.
2. Loosen the screws of the two side panels.
Push the side panels upwards by roughly and remove them
horizontally.
After removing the side panels, loosen the fastening screws
of the front panel.
14
3. Swing open the front panel to the front and remove it from
the upper edging. Insert the electrical connecting lines and
provide strain relief.
Shorten the lines so that they do not touch any hot device
surfaces during operation. Do not route any cable loops
behind or below the device.
4. All heaters must be secured against tilting.
The installed device must be able to withstand a horizontal
pull of at least without tilting or moving. If the required stability
cannot be achieved using the accessories provided, e.g. with
light-weight walls, the heating technician must choose a
suitable wall fastening method.
English
