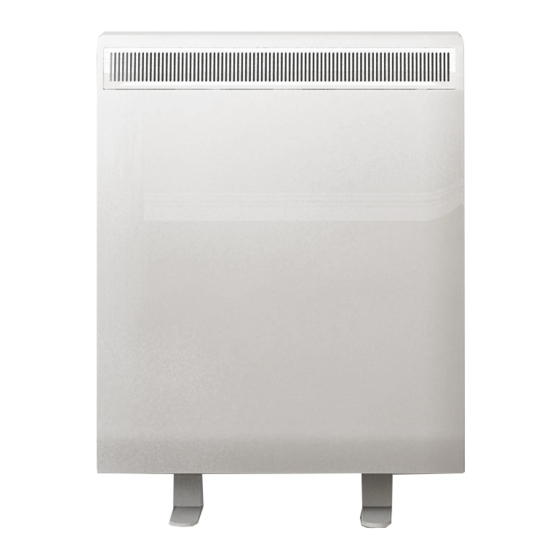

Dimplex ultra-slim storage heater xls6n, xl6n operating instructions
Hide thumbs Also See for XL6N:
1
2
3
4

Advertisement

Quick Links

XLS6N
MODELS: XLS6N -
XL6N -
INSTALLATION
PLEASE READ THIS LEAFLET CAREFULLY AND
RETAIN FOR FURTHER USE. NOTE ALSO THE
INFORMATION GIVEN ON THE HEATER
The installation must be carried out by a competent electrician and should be in accordance with I.E.E.
Regulations.
A Double Pole Switch with a contact separation of at least 3mm on each pole must be provided in the
installation.
The heater is not suitable for connection to a 30A ring circuit.
Do not position the heater under windows where curtains can contact the heater casing.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.
This heater meets EN60-335 safety requirements. However, any heater type becomes hot in normal
operation. Care must be taken to ensure that prolonged skin contact with the heater does not occur.
WHERE YOUNG CHILDREN, INFIRM PERSONS, OR THE AGED ARE PRESENT THIS APPLIANCE
MUST BE ADEQUATELY GUARDED. Contact your installer or the manufacturer for further advice.
This appliance is very heavy and must be securely fixed to a wall. DO NOT UNDER ANY
CIRCUMSTANCES ATTEMPT TO MOVE OR REPOSITION THIS HEATER WITHOUT SEEKING
EXPERT ADVICE.
IMPORTANT - Due to the newness of materials the heater will produce a slight smell for the first few days
of operation. ROOMS MUST BE WELL VENTILATED AND YOUNG CHILDREN, CAGED BIRDS, OR
PERSONS WITH RESPIRATORY COMPLAINTS MUST NOT REMAIN IN CLOSE PROXIMITY TO THE
HEATER DURING THE FIRST 48 HOURS OF THE COMMISSIONING PERIOD.
IF, DURING ANY REASSEMBLY OF THE HEATER, A PART OF THE THERMAL INSULATION SHOWS
DAMAGE OR DETERIORATION WHICH MAY IMPAIR SAFETY, IT SHOULD BE REPLACED BY AN
IDENTICAL PART.
AUTOMATIC
ULTRA-SLIM STORAGE HEATER
6kWh
6kWh
INSTRUCTIONS
IMPORTANT
XL6N
OPERATING
AND
MANUAL
IPX2

Advertisement

loading
Need help?

Need help?

Do you have a question about the XL6N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dimplex XL6N

Summary of Contents for Dimplex XL6N

  • Page 1 XLS6N ULTRA-SLIM STORAGE HEATER MODELS: XLS6N - XL6N - INSTALLATION INSTRUCTIONS PLEASE READ THIS LEAFLET CAREFULLY AND RETAIN FOR FURTHER USE. NOTE ALSO THE INFORMATION GIVEN ON THE HEATER The installation must be carried out by a competent electrician and should be in accordance with I.E.E.

  • Page 2: Installation Instructions

    INSTALLATION INSTRUCTIONS PREPARATION The heater will arrive separately from its storage bricks, 4 bricks will be required. (2 Packs) Catalogue No. XT8300 WARNING - This appliance must be earthed Only heat resisting cable (min. rating T85) should be used. The wires in the mains cable will be coloured as follows:- GREEN &...
  • Page 3 THE FOLLOWING MUST BE APPLIED WHEN FIXING THE HEATER TO THE WALL BRACKET i) If no skirting board is present secure the heater through the wall bracket slots closest to the wall. ii) If 100mm (4in.) skirting is present secure the heater through the outer slots.

  • Page 4: Operating Instructions

    Dimplex XL6N and XLS6N Storage Heaters store heat overnight using cheap off peak electricity and discharge this heat the following day. The XL6N is preset at the factory to always take a full charge. XLS6N models are fitted with an...
