Lennox SSB036H4S4 Installation Instructions Manual

S-class units
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
E2013 Lennox Industries Inc.
Dallas, Texas, USA
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause personal injury, loss of life, or
damage to property.
Installation and service must be performed by a licensed
professional installer (or equivalent) or a service agency.
IMPORTANT
The Clean Air Act of 1990 bans the intentional venting of
refrigerant (CFCs, HCFCs and HFCs) as of July 1, 1992.
Approved methods of recovery, recycling or reclaiming
must be followed. Fines and/or incarceration may be
levied for noncompliance.
IMPORTANT
This unit must be matched with an indoor coil as speci­
fied in Lennox SSB*H4 Product Specification bulletin.
Coils previously charged with HCFC-22 must be
flushed.
NOTICE TO INSTALLER
UNIT PLACEMENT
It is critical for proper unit operation to place outdoor unit on an
elevated surface as described in Unit Placement section on page 7.
BRAZING LINE SET TO SERVICE VALVES
It is imperative to follow the brazing technique illustrated starting on
page 12 to avoid damaging the service valve's internal seals.
6/2013
*2P62013*
INSTALLATION
INSTRUCTIONS

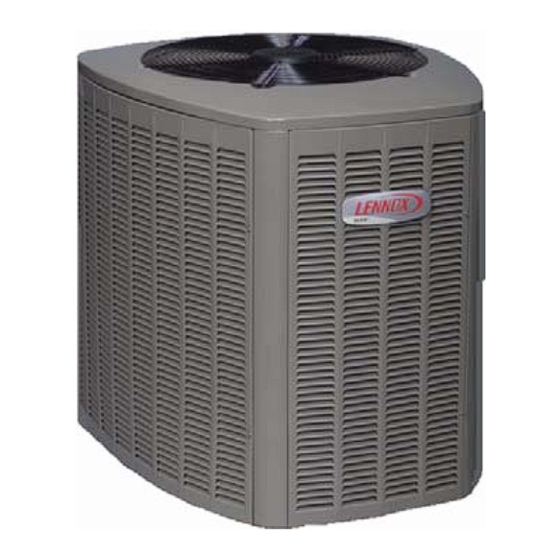

S-CLASS SSB*H4 Units
AIR CONDITIONER UNITS
507163-01
6/2013
Supersedes 506641-01

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shipping and Packing List

Check the unit for shipping damage and listed times below
are intact. If damaged, or if parts are missing, immediately
contact the last shipping carrier.
1 - Assembled outdoor unit.

General

Two-stage S-Classt SSB*H4 outdoor units use
HFC-410A refrigerant. This unit must be installed with a
matching indoor coil and line set as outlined in the Product
Specification bulletin. S-Classt SSB*H4 outdoor units
are designed for use in expansion valve systems (TXV)
only. They are not designed to be used with other
refrigerant flow control devices. The Product Specification
bulletin lists a TXV kit that must be ordered separately.
Page 1
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
507163-01
*P507163-01*
Litho U.S.A.
1
1
2
2
3
4
. . . . .
6
7
9
10
12
15
16
17
18
19
21
21
22
25
26
27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSB036H4S4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lennox SSB036H4S4

Summary of Contents for Lennox SSB036H4S4

  • Page 1: Table Of Contents

    This unit must be matched with an indoor coil as speci­ are intact. If damaged, or if parts are missing, immediately fied in Lennox SSB*H4 Product Specification bulletin. contact the last shipping carrier. Coils previously charged with HCFC-22 must be flushed.

  • Page 2: Unit Dimensions

    INLETS SUCTION LINE CONNECTION 2 (51) 4-3/4 4-1/4(1 (121) SIDE VIEW SIDE VIEW 1 (25) Model Number SSB036H4S4 31 (787) 30-1/2 (775) 35 (889) 13-7/8 (352) 7-3/4 (197) 3-1/4 (83) 27-1/8 (689) 3-5/8 (92) 4-1/2 (114) 20-5/8 (524) SSB048H4S4 39 (991)

  • Page 3: Unit Parts Arrangement

    Typical Unit Parts Arrangement CONTROL PANEL CRANKCASE HEATER RELAY (K-191) (G-VOLTAGE UNITS ONLY) DUAL RUN CAPACITOR (C12) THREE POLE CONTACTOR (K1) GROUND) PLUMBING, SWITCHES AND ELECTRICAL COMPONENTS COMPRESSOR COMPRESSOR HARNESS CRANKCASE HEATER (HR1) CRANKCASE THERMOSTAT (S40) HIGH PRESSURE SWITCH (MANUAL RESET) (S4) LIQUID LINE FILTER LOW PRESSURE DRIER (SINGLE FLOW)

  • Page 4: Operating Gauge Set And Service Valves

    Using an Allen wrench rated at less than 50Rc risks rounding or breaking off the wrench, or stripping the valve stem recess. See the Lennox Service and Application Notes #C-08-1 for further details and information. Page 4 507163-01 05/13...
  • Page 5 Operating Angle-Type Service Valve: 1. Remove stem cap with an appropriately sized wrench. 2. Use a service wrench with a hex-head extension (3/16” for liquid line valve sizes and 5/16” for vapor line valve sizes) to back the stem out counterclockwise as far as it will go. SERVICE PORT CAP SERVICE PORT CORE (VALVE STEM SHOWN...

  • Page 6: Recovering Refrigerant From Existing System

    Recovering Refrigerant from Existing System DISCONNECT POWER CONNECT MANIFOLD GAUGE SET Connect a gauge set, clean recovery cylinder and a recovery Disconnect all power to the existing outdoor unit at the disconnect machine to the service ports of the existing unit. Use the switch or main fuse box/breaker panel.

  • Page 7: New Unit Placement

    CLEARANCE ON ALL SIDES — INCHES (MILLIMETERS) 6 (152) ACCESS PANEL MINIMUM CLEARANCE NOTES: ABOVE UNIT CONTROL PANEL Clearance to one of the other three ACCESS LOCATION sides must be 36 inches (914mm). 30 (762) 12 (305) Clearance to one of the remaining two sides may be 12 inches (305mm) and the final side may be 6 inches (152mm).
  • Page 8 DETAIL A — Outside Unit Placement DETAIL B — Slab Mounting at Ground Level Install unit away from windows. Install unit level or, if on a slope, maintain slope tolerance of two (2) degrees (or two inches per five feet [50 mm per 1.5 m]) away from building structure.

  • Page 9: Removing And Installing Panels

    ROOF MOUNTING Removing and Installing Panels IMPORTANT Install the unit a minimum of 6 inches (152 mm) above the roof surface to avoid ice build-up around the unit. Locate the unit above a load bearing wall or area of the roof that Do not allow panels to hang on unit by top tab.

  • Page 10: New Or Replacement Line Set

    This section provides information on installation or assistance. replacement of existing line set. If new or replacement line set is not being installed then proceed to Brazing To obtain the correct information from Lennox, be sure to Connections on page 12. communicate the following information: IMPORTANT Model SSB*H4 and size of unit (e.g.
  • Page 11 Line Set Isolation — The following illustrations are examples of proper refrigerant line set isolation: REFRIGERANT LINE SET — INSTALLING REFRIGERANT LINE SET — TRANSITION VERTICAL RUNS (NEW CONSTRUCTION SHOWN) FROM VERTICAL TO HORIZONTAL NOTE - Insulate liquid line when it is routed through areas where the surrounding ambient temperature could become higher than the temperature of the liquid line or when pressure drop is equal to or greater ANCHORED HEAVY NYLON...

  • Page 12: Brazing Connections

    Brazing Connections IMPORTANT Use the procedures outline in figures 8 and 9 for brazing Connect gauge set low pressure side to vapor line line set connections to service valves. service valve and repeat procedure starting at paragraph 4 for brazing the liquid line to service port WARNING valve.
  • Page 13 CAP AND CORE REMOVAL CUT AND DEBUR Remove service cap and core from both the Cut ends of the refrigerant lines square (free from nicks or dents) vapor and liquid line service ports. and debur the ends. The pipe must remain round. Do not crimp end of the line.
  • Page 14 WRAP SERVICE VALVES To help protect service valve seals during brazing, wrap a saturated cloth around service valve bodies and copper tube stub. Use another saturated cloth underneath the valve body to protect the base paint. FLOW NITROGEN Flow regulated nitrogen (at 1 to 2 psig) through the refrigeration gauge set into the valve stem port connection on the liquid service valve and out of the suction / vapor valve stem port.

  • Page 15: Flushing Line Set And Indoor Coil

    Flushing Line Set and Indoor Coil TYPICAL EXISTING FIXED ORIFICE TYPICAL EXISTING EXPANSION VALVE REMOVAL REMOVAL PROCEDURE (UNCASED PROCEDURE (UNCASED COIL SHOWN) COIL SHOWN) STUB END TWO PIECE PATCH PLATE LIQUID LINE EXPANSION DISTRIBUTOR TUBES (UNCASED COIL ONLY) ORIFICE VALVE LIQUID LINE ORIFICE HOUSING HOUSING DISTRIBUTOR...

  • Page 16: Installing Indoor Metering Device

    See the Lennox SSB*H4 Product Specification bulletin for of the expansion valve. Refer to below illustration for approved expansion valve kit match-ups. The expansion reference during installation of expansion valve unit.

  • Page 17: Leak Test Line Set And Indoor Coil

    Take care to empty all existing traps. Polyol ester (POE) oils are used in Lennox units charged with HFC-410A WARNING refrigerant. Residual mineral oil can act as an insulator, preventing proper heat transfer. It can also Refrigerant can be harmful if it is inhaled.

  • Page 18: Evacuating Line Set And Indoor Coil

    Evacuating Line Set and Indoor Coil CONNECT GAUGE SET HIGH NOTE - Remove cores from service valves (if not already done). Connect low side of manifold gauge set with 1/4 SAE in-line tee to vapor line service valve Connect high side of manifold gauge OUTDOOR set to liquid line service valve MANIFOLD...

  • Page 19: Electrical

    an air conditioning system. Non-condensables and water IMPORTANT suction combine with refrigerant to produce substances that corrode copper piping and compressor parts. Use a thermocouple or thermistor electronic vacuum gauge that is calibrated in microns. Use an instrument Electrical capable of accurately measuring down to 50 microns. In the U.S.A., wiring must conform with current local codes WARNING and the current National Electric Code (NEC).
  • Page 20 Figure 14. Typical Wiring Diagram (Y-Voltage) Figure 15. SSB*H4 Typical Factory Diagram (Y-Voltage) Page 20 507163-01 05/13...

  • Page 21: Servicing Units Delivered Void Of Charge

    Figure 16. SSB*H4 Typical Wiring Diagram (G-Voltage) Figure 17. SSB*H4 Typical Factory Diagram (G-Voltage) 2. Evacuate the system using procedure outlined on Servicing Units Delivered Void of Charge page 18. If the outdoor unit is void of refrigerant, clean the system 3.

  • Page 22: System Refrigerant

    5. Weigh in refrigerant using procedure outlined in figure 4. Replace the stem caps and tighten to the value listed in table 1. 6. Monitor the system to determine the amount of 5. Check voltage supply at the disconnect switch. The moisture remaining in the oil.
  • Page 23 CHECKING AIR FLOW AT INDOOR COIL 1. Determine the desired DT—Measure entering air temperature Temp. using dry bulb (A) and wet bulb (B). DT is the intersecting value of 24 24 24 23 23 22 22 22 20 19 18 17 16 15 of air entering 23 23 23 22 22 21 21 20 19 18 17 16 15 14...
  • Page 24 1. Connect gauge set as illustrated in figure 18. 65ºF START: Measure outdoor ambient temperature 2. Confirm proper airflow across coil using figure (18.3ºC) and Above 3. Compare unit pressures with table 4, Normal USE WEIGH‐IN METHOD Operating Pressures. DO NOT CHARGE UNIT 4.

  • Page 25: System Operation

    IMPORTANT in these pressures may be due to differences in installations. Significant deviations could mean that the system is not properly charged or that a problem exists with some component in the system. Model SSB036H4S4 SSB048H4S4 SSB060H4S4 5F (5C)* Liquid...

  • Page 26: Maintenance

    UNIT COMPONENTS Outdoor Unit 1. Clean and inspect the outdoor coil. The coil may be High Pressure Switch (S4) flushed with a water hose. Ensure the power is turned This unit now employs a automatic pressure switch off before you clean the coil. located on the liquid line of the compressor.

  • Page 27: Checklists

    Accessories 1. Air Filter — Ask your Lennox dealer to show you For update-to-date information, see any of the following where your indoor unit's filter is located. It will be either...
  • Page 28 Two-Stage Modulation Compressors Field Operational Checklist Expected results during Y2 demand (Toggle switch On) Unit Readings Y1 - First‐Stage Y2 - Second‐Stage COMPRESSOR Voltage Same Amperage Higher OUTDOOR UNIT FAN MOTOR Amperage Same or Higher TEMPERATURE Ambient Same Outdoor Coil Discharge Air Higher Compressor Discharge Line Higher...
