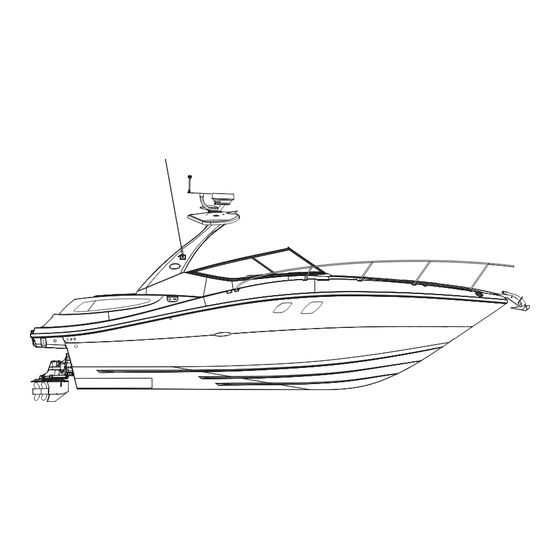

310 Sundancer
Model Specific
Information
13.1
310 Sundancer
®

Advertisement

loading

Related Manuals for Sea Ray 310 Sundancer

Summary of Contents for Sea Ray 310 Sundancer

  • Page 1 310 s ® undancer pecIfIc nformaTIon 310 Sundancer Model Specific Information 13.1 310 Sundancer ®...
  • Page 2 You can be seriously injured if you slip and fall. WARNING Wear slip resistant footwear secured to your feet and Rear facing transom seats MUST NOT be used while hold on to rails or boat structure. engine is running or boat is moving. 13.2 310 Sundancer ®...

  • Page 3: Safety Label Locations

    0609 MAXIMUM IMCI 1360 THIS TAG INSTALLED WHEN BOAT IS ORDERED WITH CE INTERNATIONAL OPTION WARNING AVOID SERIOUS OR FATAL INJURY DUE TO ROTATION OF SEAT. LOCK SWIVEL WHEN SPEED EXCEEDS 5 MPH. MRP 943548 SR-177 13.3 310 Sundancer ®...
  • Page 4 OR PRIOR TO USING SWIM PLATFORM AND Carbon monoxide will be around the back of the boat when engines or generators are running. BOARDING LADDER. MRP 1745519 SR-7214 Move to fresh air, if you feel nausea, headache, dizziness, or drowsiness. NW-206-05 13.4 310 Sundancer ®...
  • Page 5 LEAVING WINDOW OPEN COULD UNPLUG SHORE POWER AND INDUCE EXHAUST FUMES TURN OFF GENERATOR INTO CABIN RESULTING IN SEVERE BEFORE REMOVING COVER PERSONAL INJURY OR DEATH MRP 1743616 SR-7154 MRP 1747493 SR-7135 LOCATED ON ALL AC JUNCTION BOXES 13.5 310 Sundancer ®...
  • Page 6 MATERIALS THAT FLOAT and does not include drainage ter, and gray water. from toilets, urinals, hospitals, 12 TO 25 MILES and cargo spaces. PLASTICS LOCATED ON INSIDE OF COCKPIT WET BAR CABINET DOOR 13.6 310 Sundancer ®...
  • Page 7 ImensIons and learances . 13.7.1) WATERLINE KEEL 310 Sundancer SpecificationS HeigHt dimenSionS ® (A) Overall Length (D) Keel to Top of All-Round Light ..12' 7½" 3.85 m With Std. Swim Platform ..31' 0" 9.45 m (E) Waterline to Top of All-Round Light ..
  • Page 8 HrougH uTouTs ransom HrougH uTouTs . 13.8.3) . 13.8.4) TRANSDUCER (CENTER ON FLAT) GENERATOR PICKUP SEACOCK WASTE (OPT) DISCHARGE STERN EYES TYP P&S UNDERWATER LIGHTS GARBOARD DRAIN (OPT) ENGINE RAW A/C PICKUP WATER PICKUP (DIESEL OPT) 13.8 310 Sundancer ®...
  • Page 9 . 13.9.2) PORT ENGINE PORT ENGINE STBD ENGINE STBD ENGINE TACHOMETER 4-IN-1 GAUGE SPEEDOMETER 4-IN-1 GAUGE TACHOMETER F/ C F/ C PSI/kP PSI/kP FUEL VOLT METER WATER FUEL VOLT METER WATER PRESSURE TEMPERATURE PRESSURE TEMPERATURE 13.9 310 Sundancer ®...
  • Page 10 AND VERIFY BLOWER OPERATION, RUN BLOWER IF SYSTEM DISCHARGES, SHUT DOWN ENGINE, BLOWER, AND ELECTRICAL SYSTEM. WHEN VESSEL IS OPERATING BELOW CRUISING SPEED. onTrol TaTIon WITcH anel . 13.10.2) HORN COCKPIT BILGE SPOILER ANCHOR RUNNING WIPER WINDLASS ACCY 13.10 310 Sundancer ®...
  • Page 11 ROTATING HELM SEAT COCKPIT TABLE BASE GRILL (OPT) FUEL FILL WET BAR AFT L SHAPED SEATING (W/ STORAGE BELOW) WASTE WATER PUMP OUT TRANSOM STORAGE ENGINE HATCH SWIM PLATFORM TRANSOM STORAGE WALK-THRU SWIM PLATFORM SWIM LADDER 13.11 310 Sundancer ®...
  • Page 12 CONVERTIBLE SEATING / BERTH TELEVISION (OPT) SALON TABLE BASE HANGING LOCKER HANGING LOCKER PRIVACY CURTAIN CONVERTIBLE DINETTE GALLEY SINK HEAD / SHOWER STOVE MDP CABINET MICROWAVE HEAD SINK HANGING LOCKER MID-BERTH CABIN ENTRY TELEVISION STEPS (OPT) 13.12 310 Sundancer ®...
  • Page 13 PORT & STBD ALL-ROUND / NAV. LIGHTS ANCHOR LIGHT BULB REPLACEMENT BULB REPLACEMENT BULB# GE2641L FUSE TYPE BULB 12V R 10W #12V10WPERKO #70-0 12. l ighTing See General Information Sections for a detailed explanation of the lighting. 13.13 310 Sundancer ®...
  • Page 14 FULL DOME COURTESY LIGHT RECTANGLE LIGHT COCKPIT LIGHT COCKPIT LIGHT BULB BULB REPLACEMENT BULB REPLACEMENT BULB REPLACEMENT BULB REPLACEMENT XENON HALOGEN FUSE TYPE BULB FUSE TYPE BULB REPLACEMENT G4 12V/10W #12V10WPERKO #70-0 #12V10WPERKO #70-0 BULB#T125 BULB#CEC1141 13.14 310 Sundancer ®...
  • Page 15 SEACOCK (OPT) BATTERIES BILGE PUMP 3&4 POWER RAW WATER TRIM PUMP SEACOCK (OPT) RAW WATER BILGE BLOWER SEACOCK (OPT) BILGE HATCH BILGE BLOWER ACTUATOR RAM TRIM TABS POWER PUMP TRIM PUMP A/C SEACOCK FIRE (OPT) EXTINGUISHER 13.15 310 Sundancer ®...
  • Page 16 YsTem as W eneraTor HoWn . 13.16.1) FUEL TANK ANTI-SIPHON VALVE FUEL TANK VENT ENGINE FUEL SUPPLY FUEL FILL GENERATOR FUEL SUPPLY ELECTRONIC FUEL SHUT-OFF 13.16 310 Sundancer ®...
  • Page 17 It includes upgraded speakers, subwoofer, amplifier and transom stereo remote. Other available options include a TV with remote DVD player and dockside inlet in the salon and mid- stateroom, and a Sirius satellite radio receiver. ® 13.17 310 Sundancer ®...

  • Page 18: E Ngine H Atch

    ® on the boat’s electrical system yourself. Instead, we recommend that you take your boat to your authorized Sea Ray dealer for service. Sea Ray ® ® reserves the right to change or update the electrical system on any model at any time without notice to the consumer and is NOT obligated to make any updates to units built prior to changes.
  • Page 19 310 s ® undancer pecIfIc nformaTIon dc W Ilge IrIng cHemaTIc draWIng no. 09-601 (1 . 13.19.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.19 310 Sundancer ®...
  • Page 20 310 s ® undancer pecIfIc nformaTIon dc W Ilge IrIng cHemaTIc draWIng no. 09-601 (2 . 13.20.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.20 310 Sundancer ®...
  • Page 21 310 s ® undancer pecIfIc nformaTIon dc W Ilge IrIng cHemaTIc draWIng no. 09-601 (3 . 13.21.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.21 310 Sundancer ®...
  • Page 22 310 s ® undancer pecIfIc nformaTIon Tereo IrIng cHemaTIc draWIng no. 09-607 . 13.22.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.22 310 Sundancer ®...
  • Page 23 310 s ® undancer pecIfIc nformaTIon Tereo IrIng cHemaTIc remIum draWIng no. 09-608 . 13.23.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.23 310 Sundancer ®...
  • Page 24 310 s ® undancer pecIfIc nformaTIon dc W abIn IrIng cHemaTIc draWIng no. 09-610 (1 . 13.24.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.24 310 Sundancer ®...
  • Page 25 310 s ® undancer pecIfIc nformaTIon dc W abIn IrIng cHemaTIc draWIng no. 09-610 (2 . 13.25.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.25 310 Sundancer ®...
  • Page 26 310 s ® undancer pecIfIc nformaTIon dc W abIn IrIng cHemaTIc draWIng no. 09-610 (3 . 13.26.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.26 310 Sundancer ®...
  • Page 27 310 s ® undancer pecIfIc nformaTIon dc W abIn IrIng cHemaTIc draWIng no. 09-610 (4 . 13.27.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.27 310 Sundancer ®...
  • Page 28 310 s ® undancer pecIfIc nformaTIon dc W IrIng cHemaTIc anmar draWIng no. 09-618 . 13.28.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.28 310 Sundancer ®...
  • Page 29 310 s ® undancer pecIfIc nformaTIon Tv s cHemaTIc draWIng no. 09-620 (1 . 13.29.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.29 310 Sundancer ®...
  • Page 30 310 s ® undancer pecIfIc nformaTIon Tv s cHemaTIc draWIng no. 09-620 (2 . 13.30.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.30 310 Sundancer ®...
  • Page 31 310 s ® undancer pecIfIc nformaTIon eneraTor cHemaTIc draWIng no. 09-622 . 13.31.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.31 310 Sundancer ®...
  • Page 32 310 s ® undancer pecIfIc nformaTIon eneraTor cHemaTIc Iesel draWIng no. 09-625 . 13.32.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.32 310 Sundancer ®...
  • Page 33 310 s ® undancer pecIfIc nformaTIon nverTer IrIng cHemaTIc draWIng no. 09-630 . 13.33.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.33 310 Sundancer ®...
  • Page 34 310 s ® undancer pecIfIc nformaTIon Indlass IrIng cHemaTIc draWIng no. 09-634 . 13.34.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.34 310 Sundancer ®...
  • Page 35 310 s ® undancer pecIfIc nformaTIon ac W IrIng Iagram draWIng no. 09-640 (1 . 13.35.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.35 310 Sundancer ®...
  • Page 36 310 s ® undancer pecIfIc nformaTIon ac W IrIng Iagram draWIng no. 09-640 (2 . 13.36.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.36 310 Sundancer ®...
  • Page 37 310 s ® undancer pecIfIc nformaTIon ac W IrIng Iagram draWIng no. 09-640 (3 . 13.37.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.37 310 Sundancer ®...
  • Page 38 310 s ® undancer pecIfIc nformaTIon ac W IrIng Iagram draWIng no. 09-640 (4 . 13.38.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.38 310 Sundancer ®...
  • Page 39 310 s ® undancer pecIfIc nformaTIon ac W & n IrIng Iagram usTralIa ealand draWIng no. 09-642 (1 . 13.39.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.39 310 Sundancer ®...
  • Page 40 310 s ® undancer pecIfIc nformaTIon ac W & n IrIng Iagram usTralIa ealand draWIng no. 09-642 (2 . 13.40.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.40 310 Sundancer ®...
  • Page 41 310 s ® undancer pecIfIc nformaTIon mdp W (120v/12v) IrIng cHemaTIc draWIng no. 09-660 (1 . 13.41.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.41 310 Sundancer ®...
  • Page 42 310 s ® undancer pecIfIc nformaTIon mdp W (120v/12v) IrIng cHemaTIc draWIng no. 09-660 (2 . 13.42.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.42 310 Sundancer ®...
  • Page 43 310 s ® undancer pecIfIc nformaTIon mdp W (220v/50H IrIng cHemaTIc draWIng no. 09-662 (1 . 13.43.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.43 310 Sundancer ®...
  • Page 44 310 s ® undancer pecIfIc nformaTIon mdp W (220v/50H IrIng cHemaTIc draWIng no. 09-662 (2 . 13.44.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.44 310 Sundancer ®...
  • Page 45 310 s ® undancer pecIfIc nformaTIon mdp W (230v/50H ) (a IrIng cHemaTIc usTralIa ealand draWIng no. 09-663 (1 . 13.45.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.45 310 Sundancer ®...
  • Page 46 310 s ® undancer pecIfIc nformaTIon mdp W (230v/50H ) (a IrIng cHemaTIc usTralIa ealand draWIng no. 09-663 (2 . 13.46.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.46 310 Sundancer ®...
  • Page 47 310 s ® undancer pecIfIc nformaTIon mdp W (120v/12v) IrIng cHemaTIc Hore oWer draWIng no. 09-664 (1 . 13.47.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.47 310 Sundancer ®...
  • Page 48 310 s ® undancer pecIfIc nformaTIon mdp W (120v/12v) IrIng cHemaTIc Hore oWer draWIng no. 09-664 (2 . 13.48.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.48 310 Sundancer ®...
  • Page 49 310 s ® undancer pecIfIc nformaTIon mdp W (220v/50H IrIng cHemaTIc Hore oWer draWIng no. 09-665 (1 . 13.49.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.49 310 Sundancer ®...
  • Page 50 310 s ® undancer pecIfIc nformaTIon mdp W (220v/50H IrIng cHemaTIc Hore oWer draWIng no. 09-665 (2 . 13.50.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.50 310 Sundancer ®...
  • Page 51 W (230v/50H ) (a IrIng cHemaTIc Hore oWer usTralIa ealand draWIng no. 09-666 (1 . 13.51.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.51 310 Sundancer ®...
  • Page 52 W (230v/50H ) (a IrIng cHemaTIc Hore oWer usTralIa ealand draWIng no. 09-666 (2 . 13.52.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.52 310 Sundancer ®...
  • Page 53 310 s ® undancer pecIfIc nformaTIon aTellITe Tereo YsTem Iagram draWIng no. 09-715 . 13.53.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.53 310 Sundancer ®...
  • Page 54 310 s ® undancer pecIfIc nformaTIon 14 p marTcrafT YsTem IrIng Iagram ngIne draWIng no. 09-725 (1 . 13.54.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.54 310 Sundancer ®...
  • Page 55 310 s ® undancer pecIfIc nformaTIon 14 p marTcrafT YsTem IrIng Iagram ngIne draWIng no. 09-725 (2 . 13.55.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.55 310 Sundancer ®...
  • Page 56 310 s ® undancer pecIfIc nformaTIon dTs s ercurY YsTem Iagram ngIne Tern rIve draWIng no. 09-770 (1 . 13.56.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.56 310 Sundancer ®...
  • Page 57 310 s ® undancer pecIfIc nformaTIon dTs s ercurY YsTem Iagram ngIne Tern rIve draWIng no. 09-770 (2 . 13.57.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.57 310 Sundancer ®...
  • Page 58 310 s ® undancer pecIfIc nformaTIon xIus YsTem Iagram draWIng no. 09-776 . 13.58.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.58 310 Sundancer ®...
  • Page 59 310 s ® undancer pecIfIc nformaTIon 14 p anmar YsTem IrIng Iagram draWIng no. 09-779 . 13.59.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 13.59 310 Sundancer ®...
