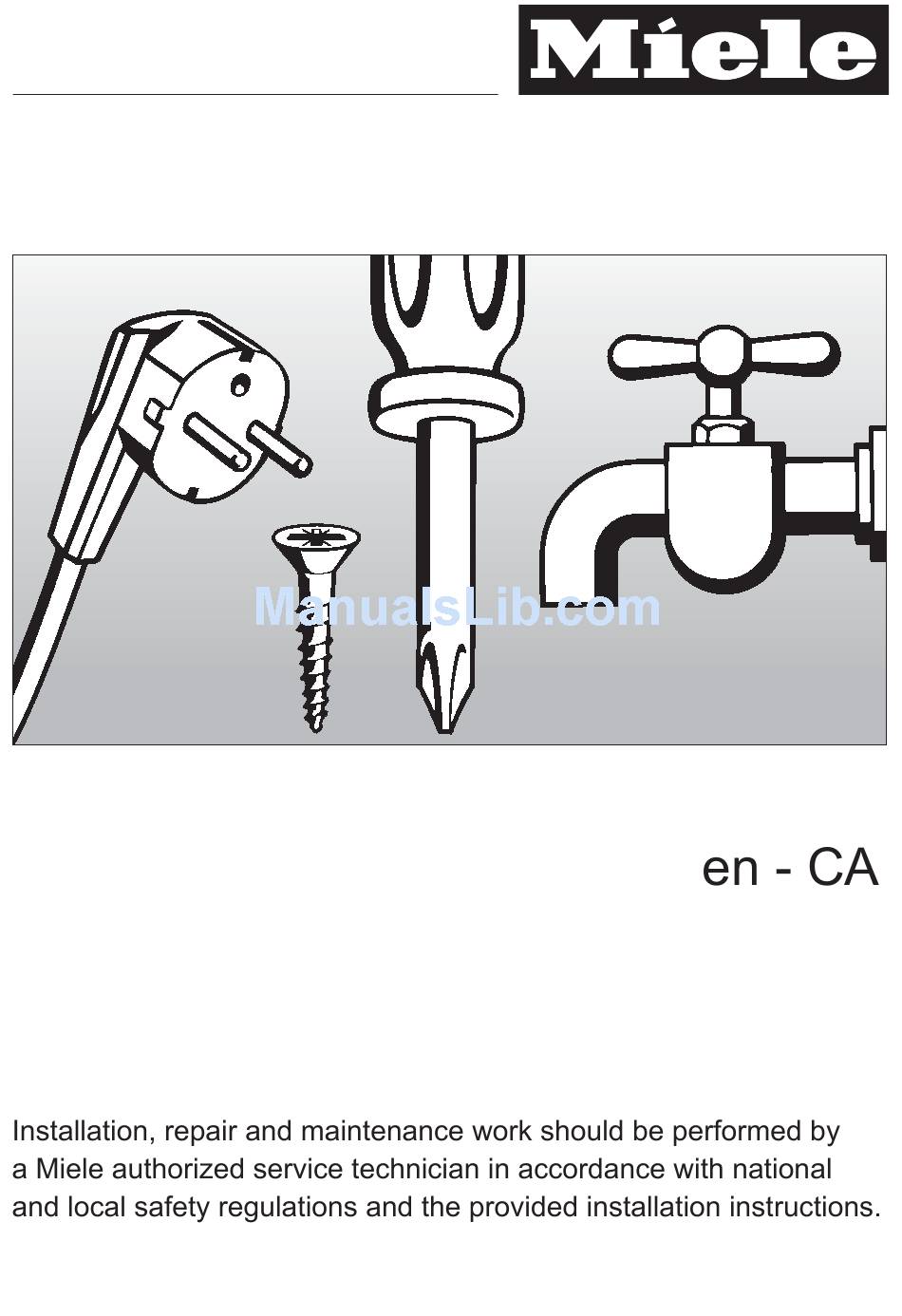

- Page 1 Installation Instructions KM 5840 KM 5860 KM 5880...
-
Page 2: Important Installation Safety Instructions
However, under certain conditions it The minimum distances given in may be possible for installation in these these Installation Instructions must applications. Please contact the Miele be observed in order to ensure safe Technical Service Department with operation. Failure to do so increases specific requirements. -
Page 3: Safety Distances Above The Appliance
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances above the Safety distance from divider appliance Installation of a divider under the cooktop is not required. If a divider is fitted under the cooktop, the distance between the upper edge of the work surface and the upper edge of the divider must be at least 4 ½... - Page 4 (for instance, a high cabinet) or a room wall. recommended KM 5840 = 2" (50 mm) KM 5860 / KM 5880 = 4" (100 mm) c 2" (50 mm) minimum distance from the left of the countertop cut-out to...
-
Page 5: Installation
Installation Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a combustible material (such as wood), the distance between the countertop cut-out and the wall covering must be a minimum of 2"... -
Page 6: Tiled Surfaces
Installation Frame/Facet Cooktops Sealing Tiled surfaces The grouting a and shaded area under The appliance must not be permanently the appliance frame must be flat and sealed into the countertop when even so that the frame will lie evenly installed. The sealing strip under the and the sealing strip under the edge of edge of the appliance provides a the upper part of the appliance can... -
Page 7: Installation Dimensions
Installation dimensions KM 5840 a Spring clips b Front c Installation height d Connecting cable, Length = 56 11/16" (1440 mm) e Rating label... - Page 8 Installation dimensions KM 5860 a Spring clips b Front c Installation height d Connecting cable, Length = 56 11/16" (1440 mm) e Rating label...
- Page 9 Installation dimensions KM 5880 a Spring clips b Front c Installation height d Connecting cable, Length = 56 11/16" (1440 mm) e Rating label...
- Page 10 Installation Wood or solid surface countertop The exact positions of the spring ^ Seal the cut surfaces with a suitable clamps and the support bars (for sealant to avoid swelling caused by beveled cooktops only) are shown in moisture. the "Installation dimensions" of each The materials used must be heat unit.
- Page 11 Installation Granite countertop Strong double-sided adhesive tape and silicon are required for installation (not included). ^ Coat the lateral edges and the lower edge of the spring clips and securing strips with silicon. ^ Using adhesive tape c attach the spring clips and the securing strips (for facet cooktops only) The spring clips and the securing...
- Page 12 Installation Insert the cooktop ^ Feed the power cord down through the cut-out. ^ Place the cooktop lightly on the spring clips. ^ With a hand on each side of the appliance press down evenly on the edges until it clicks into position. When doing so make sure that the appliance seal sits tightly on the countertop to ensure it is sealed...
-
Page 13: Electrical Connection
Red wire: connect to L2 (hot) household electrical supply. This Green wire: connect to GND (ground) data must correspond to prevent KM 5840 appliance damage. Consult an 208/240 V, 60 Hz, 40 A fuse rating electrician if in doubt. KM 5860... -
Page 14: Help Protect Our Environment
Help protect our environment Disposal of packing materials Disposal of an old appliance The cardboard box and packing Old appliances contain materials that materials are biodegradable and can be recycled. Please contact your recyclable. Please recycle. local recycling authority about the possibility of recycling these materials. - Page 18 Alteration rights reserved / 2413 M.-Nr. 07 844 710 / 02 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
