10" LITHIUM CULTIVATOR
27062
C
US
218549
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 27062 and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenWorks 27062

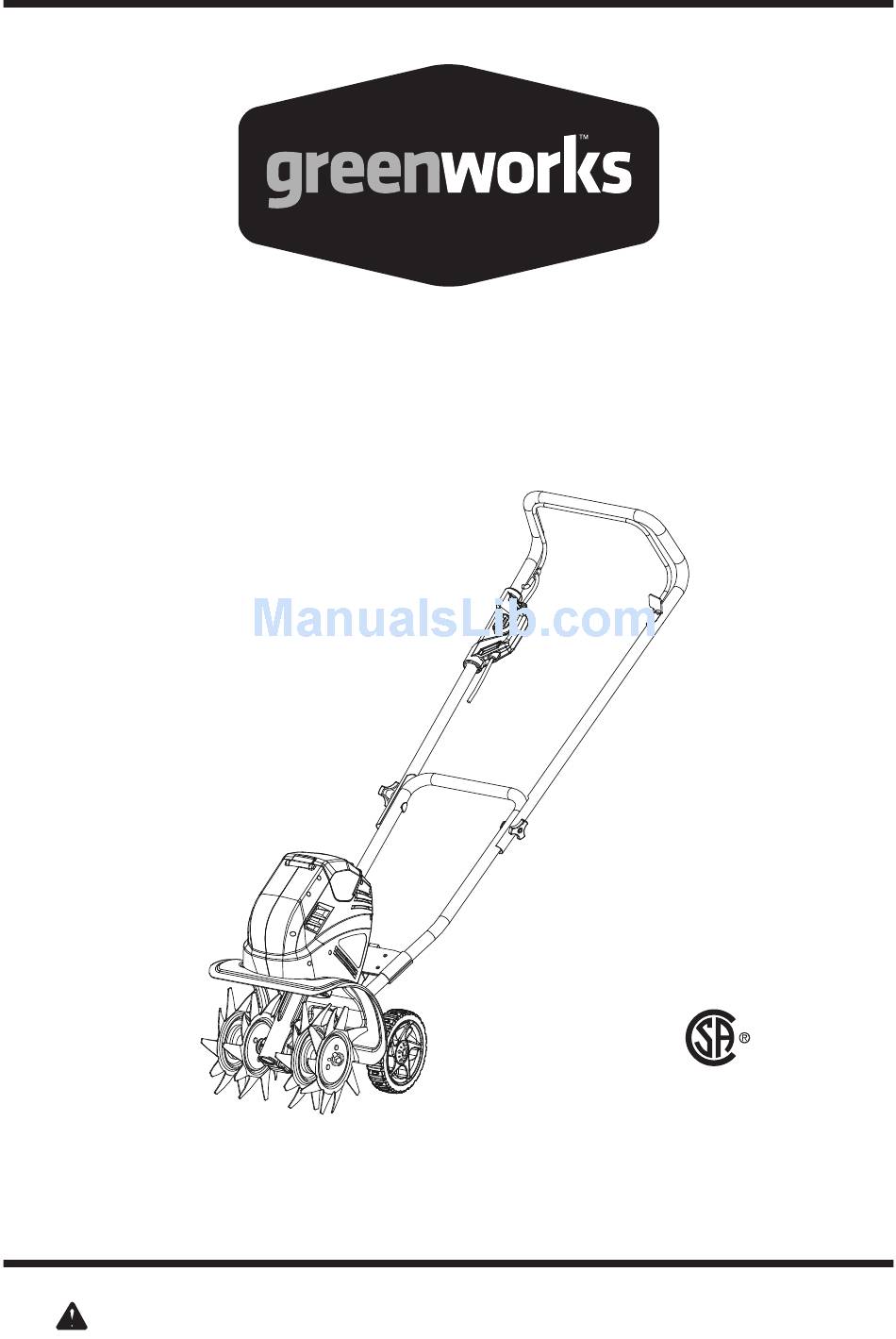

  • Page 1 10" LITHIUM CULTIVATOR 27062 218549 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.
  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 ........................2 Important Safety Instructions ....................3 - 4 Specific Safety Rules ......................5 - 6 Symbols ..........................7- 8 Know Your Electric Cultivator..................9 Assembly ........................10-14 Operation ........................15-16 Maintenance ........................1 7 Battery&charger ......................1 8 - 1 9 Troubleshooting .........................
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: when using electric gardening appliances,basic safty precautions should always be followed to reduce the risk of fire, elctric shock and personal injury including the following. READ AND UNDERSTAND ALL INSTRUCTIONS. personal injury. READ THESE INSTRUCTIONS BEFORE USING THE ELECTRIC CULTIVATOR •...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS • Avoid Unintentional Starting – Don’t carry cordless appliance with finger on switch. Be sure switch is off when inserting the battery. • Never pick up or carry the cultivator while the tines are turning or the motor is running. •...
  • Page 5: Specific Safety Rules

    SPECIFIC SAFETY RULES • Do not use near underground electric cables, telephone, lines, pipes, or hoses. If in doubt, contact your utility or telephone company to locate underground services. • If the unit strikes a foreign object, stop the motor, disconnect the battery, thoroughly inspect the machine for any damage, and repair the damage before restarting and operating the machine.
  • Page 6: Specific Safety Rules

    SPECIFIC SAFETY RULES • Replace worn or damaged parts only with identical replacement parts. • Ensure that work area is free of slippery spots or excessive quantities of stone. • Start the cultivator carefully according to instructions from a normal operating position and with feet well away from the tines.
  • Page 7: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-pretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
  • Page 8 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
  • Page 9: Know Your Electric Cultivator

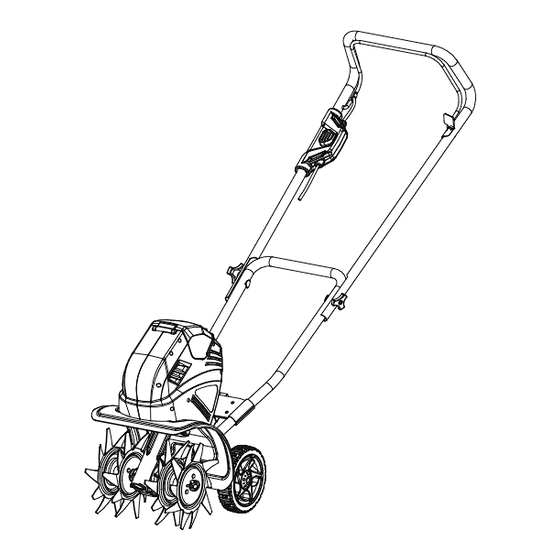

    KNOW YOUR CULTIVATOR HANDLE BAR SAFETY LOCK-OUT BUTTON TINE SHIELD WHEEL ASSEMBLY OUTER TINE Fig. 2 HITCH PIN INNER TINE Read this operator’s manual and safety rules before operating your cultivator. Compare the illutration in Fig.2.1 to your cultivator in order to familiarize yourself with the location of various controls and adjustments.
  • Page 10: Assembly

    ASSEMBLY UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the tool carefully to verify no breakage or damage occurred during shipping. •...
  • Page 11 ASSEMBLY ASSEMBLING THE HANDLEBAR (See Figure. 3) • Align the holes on the middle with the holes on the lower handles. Insert the bolts, and tighten them using the wing nuts provided. • Fold the handle base on the Fig.4 - 4.1 Step1: Release the wing nuts Step2: Rotate the upper handle UPPER...
  • Page 12 ASSEMBLY ASSEMBLING THE WHEELS (See Figure. 5) The wheels are used to control the depth of operation. To adjust the height of the wheels. 1. Remove the battery from the unit 2. Place cultivator in a stable position as shown in Fig. 5 3.
  • Page 13 ASSEMBLY INSTALLING THE TINES (See Figure 6) The cultivator comes with four tines—For correct operation of the unit, the tines must be installedin the correct order. The cultivator may be used with four tines or two tines. • Disconnect from power source. •...
  • Page 14: Assembly

    ASSEMBLY TINES INSTALLED CORRECTLY (See Figure. 7) NOTE: tine blades should point towards the ground (Fig. 7). NOTE: The tiller will not operate properly if the tines are not installed correctly. If there is a problem with the cultivating operation of the tiller, check the tines for proper positioning. NOTE: The directional arrow that is displayed on each tine should point toward the front.
  • Page 15: Operation

    OPERATION W A R N I N G Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a W A R N I N G Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
  • Page 16 OPERATION PREPARING THE SEED BED The cultivator can be used to break up garden soil and prepare a seedbed for planting. Plan ahead to leave enough room between the seed rows to allow for machine cultivating after the plants have grown. TILLING SOD: Tilling sod into the soil is not recommended.
  • Page 17: Maintenance

    MAINTENANCE W A R N I N G WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS. USE OF ANY OTHER PARTS MAY CREATE A HAZARD OR CAUSE PRODUCT DAMAGE. W A R N I N G ALWAYS WEAR SAFETY GOGGLES OR SAFETY GLASSES WITH SIDE SHIELDS DURING PRODUCT OPERATION.
  • Page 18 BATTERY CHARGER CHARGING PROCEDURE (See Figure 10) NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.
  • Page 19 BATTERY CHARGER CHARGER MAINTENANCE • Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions.
  • Page 20: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE REMEDY Motor fails to start when The battery is not inserted in Insert the battery into unit. switch trigger is depressed. or connection is loose. Household circuit breaker is Check circuit breaker. tripped. Cultivator circuit overload Let unit rest for 4 minutes, protection is tripped.
  • Page 21: Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...
  • Page 22 PARTS...
  • Page 23 PARTS (GEAR BOX)
  • Page 24: Parts List

    PARTS LIST ITEM # PART NO. DESCRIPTION 31102281 BLADE 31103281 BLADE NUTS M8 32208261 BOLT 3220436 GEAR BOX ASSY’ 31102289 BLADE 31114281 WASHER 34901282-1 BLADE 31115281 BOLT 33210289 NUT M6*25 322085281 SCREW 3220505 LEFT HOUSING 34107289 COVER 33301289 SWITCH 36301289 SWITCH BOARD 34104289 HANDLE FOR SWITCH...
  • Page 25 PARTS LIST (GEAR BOX) 33203281 TURBO ASSY’ 33103289 SPEED-DOWN BOX GEAR BOX COVER 33103281-1 33206289 SHAFT 32103289 BEARING AK1226 32101289 BEARING HK1212 32102289 BEARING HK1412 33102289 FELTS 32901289 FLEXIBILITY WASHER 33312281-1 WASHER 33901281 BEARTING 3290143 WASHER 32955281 FLEXIBILITY WASHER...
  • Page 26 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 02 (12-07-12) Printed in China on 100% Recycled Paper...
