FiOS® EQUIPMENT

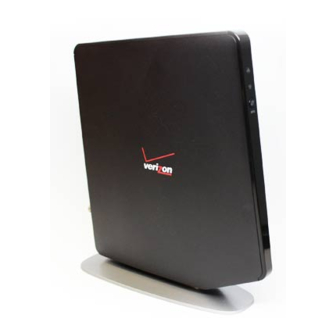

FiOS ROUTER + POWER CORD
You will receive one of the two router models shown below.
SELF-INSTALLATION INSTRUCTIONS
ENCLOSED ITEMS YOU MAY NEED FOR INSTALLATION
VIDEO MEDIA SERVER + POWER CORD
MEDIA CLIENT + POWER CORD
FiOS TV REMOTE
BEFORE YOU BEGIN, DISCONNECT ALL OF THE
EXISTING TV EQUIPMENT THROUGHOUT YOUR HOME
THEN, INSTALL TODAY
AND ENJOY FiOS RIGHT AWAY!
CABLES AND CONNECTORS
ETHERNET CABLE (6')
COMPOSITE CABLES
COAX CABLE(S)
HDMI CABLE
SPECIAL ORDER
CABLE BARREL
DIGITAL ADAPTER
CONNECTOR
2-WAY SPLITTER
CableCARD
Advertisement
Related Manuals for Verizon FIOS
Summary of Contents for Verizon FIOS
- Page 1 SELF-INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN, DISCONNECT ALL OF THE EXISTING TV EQUIPMENT THROUGHOUT YOUR HOME THEN, INSTALL TODAY AND ENJOY FiOS RIGHT AWAY! ENCLOSED ITEMS YOU MAY NEED FOR INSTALLATION FiOS® EQUIPMENT CABLES AND CONNECTORS SPECIAL ORDER FiOS ROUTER + POWER CORD...
-
Page 2: Wireless Setup
WIRELESS SETUP STEP 1B: On the FiOS Router, locate the Wi-Fi label for your Wireless Network Name (ESSID) and Wireless Password (WPA2). Launch your device’s wireless application. Select Wireless Network Name (ESSID) and then Connect. When prompted, enter the Wireless Password (WPA2), as it appears on your router’s label (case sensitive). - Page 3 Back of TV Connect the HDMI Cable Connect the Coax Cable OPTIONAL ACTIVATE YOUR VIDEO MEDIA SERVER STEP 2B: Turn on your Video Media Server and your TV. Then, using your FiOS TV Remote, follow the instructions shown on your TV screen.
- Page 4 STEP 3 MEDIA CLIENT SETUP CONNECT YOUR MEDIA CLIENT USING HDMI CABLE (PREFERRED) STEP 3A: Connect the Power Cord Back of TV Connect the Coax Cable Connect the HDMI Cable...
- Page 5 Connect the Power Cord Connect the Composite Cables Connect the Coax Cable Back of TV ACTIVATE YOUR MEDIA CLIENT STEP 3B: Turn on your Media Client and your TV. Then, using your FiOS TV Remote, follow the instructions shown on your TV screen.
- Page 6 STEP 4B: Turn on the Digital Adapter by pressing the Set Top Box button on the FiOS TV Remote Control. Turn on your TV and tune to Channel 3, either manually or with the remote control that came with your TV.
- Page 7 VISIT activatemyfios.verizon.net to access the Self-Install Wizard CALL 1.800.VERIZON (1.800.837.4966) To order extra remotes or cables, visit verizon.com/fiosaccessories...
- Page 8 11320451 FiOS VMS NEW MINI SI POST VMSNCMG0415 ©2015 Verizon. All Rights Reserved.
