LIMITED WARRANTY
This product is warranted to be free from defects in material and/
or workmanship for a period of two (2) years from date of original
installation. On-location service for failure within 1 year of
installation, proof of purchase will be required.
Any component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
Use of any non-genuine Prince Castle parts voids this
warranty.
All labor shall be performed during regular work hours. Overtime
premium will be charged to the buyer.
Damage caused by carelessness, neglect, and/or abuse
(e.g., dropping, tampering or altering parts), equipment
damaged in shipment, by fire, flood or an act of God is not
covered under this warranty.
Motors that fail due to the lack of monthly lubrication will not
necessarily be covered under warranty.
This toaster must be serviced by a Prince Castle Authorized
Service Center or a Prince Castle Service Technician. Failure
to do so can void this warranty.
428-BX 428-513
355 East Kehoe Blvd.
Tel: (630) 462-8800
Toll Free: 1-800-PCASTLE (1-800-722-7853)

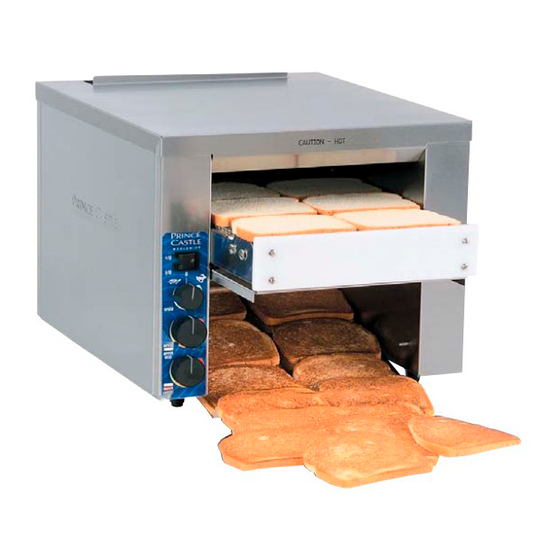

Conveyor Toaster
Model No. 428-BX
TABLE OF CONTENTS
Installation ............................................................................................. 2
Electrical Specifications .................................................................... 2
Product Identification .......................................................................... 2
Operation .............................................................................................. 3
Preventive Maintenance .................................................................... 4
Cleaning ................................................................................................. 4
Troubleshooting Chart ........................................................................ 5
Exploded View ..................................................................................... 6
Parts List ............................................................................................... 6
Wiring Diagram ..................................................................................... 7
Carol Stream, IL 60188
Fax: (630) 462-1460
Printed in the USA 0101 2002
PAGE
Advertisement
Table of Contents
Related Manuals for Prince Castle 428-BX
Summary of Contents for Prince Castle 428-BX
-
Page 1: Table Of Contents
Motors that fail due to the lack of monthly lubrication will not necessarily be covered under warranty. This toaster must be serviced by a Prince Castle Authorized Service Center or a Prince Castle Service Technician. Failure to do so can void this warranty. -
Page 2: Installation
Notify carrier within 24 hours after delivery. Save carton and packing materials for inspection purposes. Contact your local dealer or, if purchased directly, the Prince Castle Customer Sales Department at 1-630-462-8800 to arrange for a replacement to be sent. Verify that all parts have been received. Remove Protective Coating. -
Page 3: Operation
Conveyor Toaster Model No. 428-BX OPERATION Plug unit into the proper voltage receptacle. Allow 20 minutes for toaster to warm up. Set Power switch to “l” for On. Lay Bread, Bagel or Muffin, cut side up on the extended conveyor and push into toaster until it slides on to the conveyor chain. -
Page 4: Preventive Maintenance
Conveyor Toaster Model No. 428-BX PREVENTATIVE MAINTENANCE The motors used on the Prince Castle Bun The conveyor chain should not touch the top Toasters, require monthly lubrication, 2-3 drops surface of the crumb tray holder. If the chain does of 3 in 1 oil. Motors that fail due to the lack of... -
Page 5: Troubleshooting Chart
Conveyor Toaster Model No. 428-BX TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION High limit tripped. Toaster overheating due to Clean any debris from the fan guard blockage of airflow. that might be blocking the flow. Airflow fan inoperable. Replace fan . No power. -
Page 6: Exploded View
Conveyor Toaster Model No. 428-BX PARTS LIST Description 428-108 COVER,REAR GM2 428-126 COVER,SIDE 428-307 IDLER SHAFT ASSY 421-087 DRIVE SHAFT ASSY 421-286 BEARING,TEFLON REAR 421-287 BRACKET,CONVEYOR SHAFT STOP 428-080 TRAY,CRUMB 421-071 SPROCKET,DRIVE 428-144 CHAIN,DRIVE ANSI 25 75 LINKS 428-081 CHUTE,BUN SLIDE BX... -
Page 7: Wiring Diagram
Conveyor Toaster Model No. 428-BX WIRING DIAGRAM 428-BX 428-513 Printed in the USA 0101 2002...
