Ecleree PAM2600 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PAM2600/2000

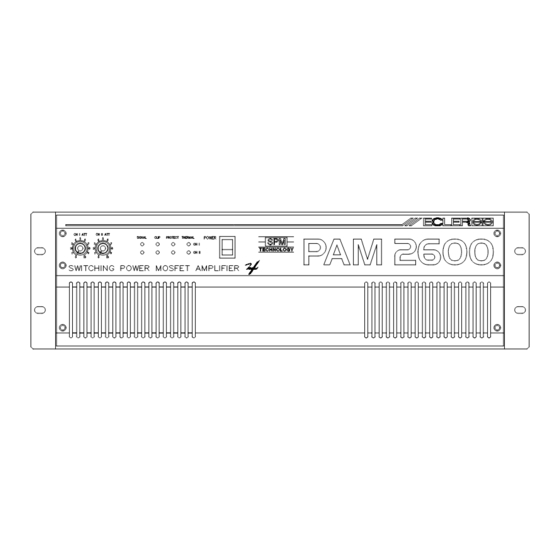

SERVICE MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Ecleree PAM2600

Summary of Contents for Ecleree PAM2600

  • Page 1 PAM2600/2000 SERVICE MANUAL...
  • Page 2 SERVICE MANUAL PAM2600/2000 INDEX - BLOCK DIAGRAM - FUNCTIONING DESCRIPTION - SCHEMATICS - COMPONENTS LOCATION SCHEMA - TESTING AND QUALITY CONTROL - TECHNICAL CHARACTERISTICS - WIRING DIAGRAM - CONFIGURATION DIAGRAM - MECHANICAL DIAGRAM - PACKING DIAGRAM...

  • Page 4: Power Supply

    MODULE CIRCUIT 11.0504B OPERATION - DESCRIPTION The control element is the operational NE5534. This is a very low noise operational, especially designed for very high quality applications in professional audio equipment, control equipment and telephony channel amplifiers. The operational is internally compensated for a gain equal to or higher than three. Frequency response can be optimized with an external compensation capacity, for several applications (unity gain amplifier, capacitive load, slew-rate, low overshoot, etc...).
  • Page 5 80mA circulates through each MOSFET. So, for instance, for a PAM2600 in which there are six MOSFETs it will be 80 x 6 = 480mA.The bias current depends on the MOSFETs temperature and the stabilizing circuit transistors temperature.
  • Page 6 SYMMETRY ADJUST The threshold voltage varies much, even between MOSFETs of the same kind. When connecting them in parallel we must be careful that they all have the same conduction current if we want equal currents circulating in all of them. If the conduction voltage of P an N channels MOSFETs is not the same they will conduct different currents, even when we apply identical gate-source voltages.

  • Page 7: Protection Circuit

    This resistance performs a negative feedback on the gate, lowering down the Vgs, relating to the drain current; like this: Vgs = Vgg - Id*Rs The higher the Id, the lower the Vgs voltage. The gate is protected by a zener, preventing a possible overload during an unexpected change from overload to real clipping.
  • Page 8 IC104 which are, as mentioned earlier, opto-couplers, just to insulate the existing high voltages at the power amplifying module, " 63V in the case of the PAM2600, and the power supply voltage of the existing logic circuits in the relays' control card.
  • Page 11 ZOBEL NETWORK This circuit tries to get a constant load impedance for the power module, in spite of the amplifier's load and frequency, to avoid phase shifting of the feedback signal. The values have been experimentally calculated through a study with square signal by trying to minimize the power amplifier's ringing with very capacitive loads (2,2µF//4 Ω...
  • Page 12 PROTECTION CIRCUIT 11.0411 OPERATION - DESCRIPTION The circuit is configured by: - A POWER SUPPLY. - A THERMAL PROBE DC AMPLIFIER. - A TEMPERATURE DETECTOR. - A DC OUT DETECTOR PER CHANNEL. - A CLIP CIRCUIT PER CHANNEL. - A RESET (TURN OFF/TURN ON) CIRCUIT. - A BINARY COUNTER PER CHANNEL.

  • Page 14: Temperature Detector

    TEMPERATURE DETECTOR This circuit is calculated to operate over the output relay opening it if any of both modules' temperature excedes 90 E C, approximately. It is made with a comparator per channel (L-R), resident in the same IC306. Both share a reference voltage provided by D306 (TL431A), which gives excellent stability at that voltage "...
  • Page 15 DC OUT CIRCUIT The circuit shown in the figure corresponds to the DC OUT of channel L. The goal of this circuit is protecting the loudspeakers when, because of a module fail, there is some DC appearing at the output. The voltages indicated in the figure correspond to rest state and they are given by the dividers made of R320-R322 and R332-R323.

  • Page 16: Clip Circuit

    CLIP CIRCUIT The other half of IC307(4001) is used in the clip circuit. Given that we have two gates more and we just need one for our purposes we will connect them in parallel for a higher output current and a more effective LED lighting up.

  • Page 17: Connection Reset

    GENERAL RESET CIRCUIT (TURN OFF/TURN ON) TURN OFF RESET. This circuit starts working when the AC current from the transformer secondary disappears or, what is the same, when we turn the power amplifier off by pushing the power off switch, actually disconnecting it from mains.
  • Page 18 BINARY COUNTER HEF4520 This is a 4-bit double binary counter. Configured in a way in which when there is the binary code equivalent to decimal number 5 at its output -so this is 1 0 0- it is blocked in this position, until it receives a new MR reset pulse.
  • Page 20 STANDBY MONOSTABLE The only thing left is the function of the monostable made of IC310 (4538). Like the counter and the monostable IC311 (4538), this circuit is connected to the PROTECT SIGNAL, too. Its output is "1" in rest state and becomes "0" during an approximate time of 1.3 seconds, which is given by the constant RC of the circuit R341 C316.
  • Page 29 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE C101 47µ/100 C102 C100n C103 10µ/50 C104 10µ/50 C105 C15p C106 C100n C107 C100n C108 C100n C109 C56p C110...
  • Page 30 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE IC103 4N35 IC104 4N32 IC105 LM35D J101 FASTON 6.3mm J102 FASTON 6.3mm J103 FASTON 6.3mm J104 B3P-VH J105 B3P-VH...
  • Page 31 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE 10 Ω /.5 R121 1 Ω /.5 R122 1 Ω /.5 R123 W.22 Ω /5 R124 W.22 Ω /5 R125 W.22 Ω...
  • Page 32 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE R179 R180 R181 R182 MF3k65 PC 11.0504B PRINTED CIRCUIT WIRE BLACK 90mm whit TER.
  • Page 37 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE C101 47µ/100 C102 C100n C103 10µ/50 C104 10µ/50 C105 C15p C106 C100n C107 C100n C108 C100n C109 C56p C110 C56p C111 47µ/100...
  • Page 38 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE IC103 TIL112 IC104 4N32 IC105 LM35D J101 FASTON 6.3mm J102 FASTON 6.3mm J103 FASTON 6.3mm J104 B3P-VH J105 B3P-VH J107...
  • Page 39 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE 10 Ω /.5 R121 1 Ω /.5 R122 1 Ω /.5 R123 W.22 Ω /5 R124 W.22 Ω /5 R125 W.22 Ω...
  • Page 40 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2600 DRW.Nº 33.0130PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE R179 R180 R181 R182 MF3k65 PC 11.0504B PRINTED CIRCUIT WIRE BLACK 90mm whit TER.
  • Page 43 PARTS LIST: INPUT CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0127PL REV: DATE: 050995 SHEET 1 OF REPLACES: REPLACED BY: REFERENCE VALUE J501 B4P-VH J502 YKF52-5003 J503 YKF52-5005 PC 11.0538 PRINTED CIRCUIT...
  • Page 46 PARTS LIST: POTENTIOMETERS CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0128PL REV: DATE: 150295 SHEET 1 OF REPLACES: REPLACED BY: REFERENCE VALUE C201 220p C202 220p C203 C15p C204 C8p2 C205 10µ/35 C206 220p C207 220p C208 C15p C209 C8p2 C210 10µ/35...

  • Page 47: Printed Circuit

    PARTS LIST: POTENTIOMETERS CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0128PL REV: DATE: 150295 SHEET 2 OF REPLACES: REPLACED BY: REFERENCE VALUE R215 56Ω R216 W1k2/4 R217 W1k2/4 R218 MF1k00 R219 MF23k7 R220 MF23k7 R221 MF1k00 R222 MF340k R223 R224 MF1k00...
  • Page 50 PARTS LIST: LED CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0125PL REV: DATE: 180595 SHEET 1 OF REPLACES: REPLACED BY: REFERENCE VALUE D701 D702 D703 1N4148 D704 1N4148 D705 YELLOW D706 D707 1N4148 D708 D709 1N4148 D710 YELLOW D711 GREEN D712...
  • Page 53 PARTS LIST: SOFT START AND POWER CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0126PL REV: DATE: 050995 SHEET 1 OF REPLACES: REPLACED BY: REFERENCE VALUE C801 2µ2/63 C802 2µ2/63 C803 47µ/100 C804 47µ/100 C805 10n 400V C806 2µ2/63 C807 2µ2/63 C808 47µ/100...
  • Page 54 PARTS LIST: SOFT START AND POWER CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0126PL REV: DATE: 050995 SHEET 2 OF REPLACES: REPLACED BY: REFERENCE VALUE R812 W39Ω/8 R813 W39Ω/8 R814 W39Ω/8 WIRE8 BLUE/430mm WIRE9 BROWN/430mm WIRE9 BROWN/430mm WIRE9 BROWN/430mm...
  • Page 63 PARTS LIST: PROTECTIONS CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0123PL REV: DATE: 070795 SHEET 1 OF REPLACES: REPLACED BY: REFERENCE VALUE FAST.2.8 FAST.2.8 C301 2200µ/35 C302 10µ/50 C303 10µ/50 C304 100n C305 10µ/50 C306 10µ/50 C307 100n C308 100n C309...
  • Page 64 PARTS LIST: PROTECTIONS CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0123PL REV: DATE: 070795 SHEET 2 OF REPLACES: REPLACED BY: REFERENCE VALUE FAST.2.8 FAST.2.8 IC301 7805 IC302 7805 IC305 LM358D IC306 LM358D IC307 HEF4001B IC308 HEF4011B IC309 HEF4520B IC310 HEF4538B IC311...
  • Page 65 PARTS LIST: PROTECTIONS CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0123PL REV: DATE: 070795 SHEET 3 OF REPLACES: REPLACED BY: REFERENCE VALUE R306 7K50 R307 90K9 R308 R309 R310 R311 R312 1k27 604Ω R313 R314 R315 R316 R317 R318 R319 R320...
  • Page 66 PARTS LIST: PROTECTIONS CIRCUIT MODEL : PAM2600/2000 DRW. No 33.0123PL REV: DATE: 070795 SHEET 4 OF REPLACES: REPLACED BY: REFERENCE VALUE R362 100k R363 100k R364 100k R365 R366 0Ω 0Ω SCREW M3X8 DIN7985 NINE SCREW M3X8 DIN7985 NINE WASHER...
  • Page 67 While mains voltage is growing up make sure the module's current does never exceed 0.8A. Once the circuit is stable make sure the current is 480mA/400mA respectively for PAM2600/ PAM2000 and the symmetry (measured up with the oscilloscope probe) is # 50mV. If your figures do not match these numbers adjust CURRENT (5K) and SYMMETRY (470Ω...

  • Page 68: Frequency Response

    FREQUENCY RESPONSE 0.5V input signal. Verify frequency response at 20Hz/2kHz/20kHz. We must get the same signal output for the actual load at any of the frequencies.Set the frequency at 50kHz; the output level should not decrease more than 1 or 2 dB and there should not be any noticeable distortion.
  • Page 69 PROFESSIONAL PAM SERIES - QUALITY CONTROL We will use a mixer with balanced output -if possible- and a nominal output level of 1V as the signal source for test purposes. Connect the mixer outputs to the power amplifier inputs. Plug the power amplifier to mains (make sure its specified voltage matches that of mains) and make sure that PROTECT, ON and SIGNAL PRESENT LEDs all light up when you turn on the amplifier by pushing the ON button.

  • Page 70: Technical Characteristics

    TECHNICAL CHARACTERISTICS PAM2600 PAM2000 Frequency response at max. power output. 7Hz to 60kHz +0 -1dB Harmonic distortion+noise from 20Hz to 20kHz meas.band <0,02% <0,02% Intermodulation distortion (SMPTE) using frequencies of 50Hz and 7kHz at 4:1 ratio, nominal power. <0,03% <0,03% TIM 100 <0,05%...
  • Page 78 PARTS LIST: MECHANICAL DIAGRAM MODEL : PAM2600/2000 DRW. No 30.0042PL REV: DATE: 060795 SHEET 1 OF REPLACES: REPLACED BY: QUANTITY VALUE 18 SCREW M4x6 SPANLO DIN7985 6 SCREW M4x20 ALLEN DIN912 8 SCREW M4x12 SPANLO DIN965 16 SCREW M3x9 SPANLO DIN7985 8 METAL WASHER 3.2x6x1...
  • Page 80 REV: DATE: 130796 SHEET 1 OF REPLACES: REPLACED BY: QUANTITY VALUE 1 CHASSIS WD.00.2063 8 WRAP-IT-TIES T-50-L 2 GROUND WD.00.2098 4 SCREW M5x10 DIN933E 4 METAL WASHER M5 ADE 1 GROUND WIRE7 4 CAPACITORS 22000µ/100V (PAM2600) 4 CAPACITORS 15000µ/80v (PAM2000)
  • Page 82 1 ASSEMBLED CHASSIS WD.00.2063 1 CHASSIS WD.00.2062 1 ASSEMBLED SOFT START CIRCUIT 11.0539B 6 MINIATURE SUPPORT MSP-4N 2 SCREW M4x20 DIN7985 2 METAL WASHER M4 SEG. 2 NUT M4 DIN934 4 SCREW M4x6 DIN7985 2 RECTIFIER FB5006 (PAM2600) 2 RECTIFIER FB3506 (PAM2000)
  • Page 84 REV: DATE: 180795 SHEET 1 OF REPLACES: REPLACED BY: QUANTITY VALUE 1 ASSEMBLED CHASSIS 2063 AND CHASSIS 2062 12 SCREW M4x6 SPANLO DIN7985 4 METAL WASHER M4 ADE 2 TRANSFORMER 64AD211 (PAM2600) 2 TRANSFORMER 51AD180 (PAM2000) 2 TRANSFORMER ASSEMBLY KIT...

  • Page 86: Mechanical Diagram

    PARTS LIST: MECHANICAL DIAGRAM REV: D MODEL:PAM2600/2000 DRW.Nº 300046PL REPLACES: DATE: 200599 SHEET REPLACED BY: QUANTITY DESCRIPT SCREW 5.1x20 DIN CL81Z SCREW M4x6 SPANLO DIN7985 SCREW M4x12 DIN965 SCREW M4x12 SPANLO DIN965 SCREW M4x12 DIN7985 SCREW M3x12 DIN966 SCREW 2.9x6.5 DIN7981...
  • Page 88 PARTS LIST: MECHANICAL DIAGRAM REV: C MODEL:PAM2600/2000 DRW.Nº 300046PL REPLACES: DATE: 200599 SHEET REPLACED BY: QUANTITY DESCRIPT SCREW 5.1x20 DIN CL81Z SCREW M4x6 SPANLO DIN7985 SCREW M4x12 DIN965 SCREW M4x12 SPANLO DIN965 SCREW M4x10 DIN7985 SCREW M3x12 DIN966 SCREW 2.9x6.5 DIN7981...
  • Page 90 PARTS LIST: MECHANICAL DIAGRAM MODEL : PAM2600/2000 DRW. No 30.0046PL REV: DATE: 050995 SHEET 1 OF REPLACES: REPLACED BY: QUANTITY VALUE 8 SCREW 5.1x20 DIN CL81Z 43 SCREW M4x6 SPANLO DIN7985 8 SCREW M4x12 DIN965 4 SCREW M4x12 SPANLO DIN965...

  • Page 92: Parts List

    PARTS LIST: PACKING DIAGRAM MODEL : PAM2600/2000 DRW. No 32.0014PL REV: DATE: 260795 SHEET 1 OF REPLACES: REPLACED BY: QUANTITY VALUE 4 METAL WASHER 5x11.5x0.8 4 WASHER AT 5x11.5x3.5 ABS BLACK 2 FUSE T16A 1 STANDARD BOX 528x215x623 4 POLYURETHANE PROTECTING HALF (M940)
  • Page 98 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2000 DRW.Nº 33.0129PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE C101 47µ/100 C102 C100n C103 10µ/50 C104 10µ/50 C105 C15p C106 C100n C107 C100n C108 C100n C109 C68p C110 C68p C111 47µ/100...

  • Page 99: Short Circuit Protection

    PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2000 DRW.Nº 33.0129PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE IC105 LM35D J101 FASTON 6.3mm J102 FASTON 6.3mm J103 FASTON 6.3mm J104 B3P-VH J105 B3P-VH J107 B5B-XH J108 B5B-XH J109 2600-3TS Q101...
  • Page 100 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2000 DRW.Nº 33.0129PL REV : A DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE W.22 Ω /5 R126 W.22 Ω /5 R127 W.22 Ω /5 R128 W.22 Ω /5 R129 330 Ω /.5 R131 330 Ω...
  • Page 105 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2000 DRW.Nº 33.0129PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE C101 47µ/100 C102 C100n C103 10µ/50 C104 10µ/50 C105 C15p C106 C100n C107 C100n C108 C100n C109 C68p C110 C68p C111 47µ/100 C112...
  • Page 106 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2000 DRW.Nº 33.0129PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE IC105 LM35D J101 FASTON 6.3mm J102 FASTON 6.3mm J103 FASTON 6.3mm J104 B3P-VH J105 B3P-VH J107 B5B-XH J108 B5B-XH J109 2600-3TS Q101 BF871...
  • Page 107 PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION MODEL:PAM2000 DRW.Nº 33.0129PL REV : DATE: 000621 SHEET REPLACED BY: REFERENCE VALUE W.22 Ω /5 R126 W.22 Ω /5 R127 W.22 Ω /5 R128 W.22 Ω /5 R129 330 Ω /.5 R131 330 Ω...
