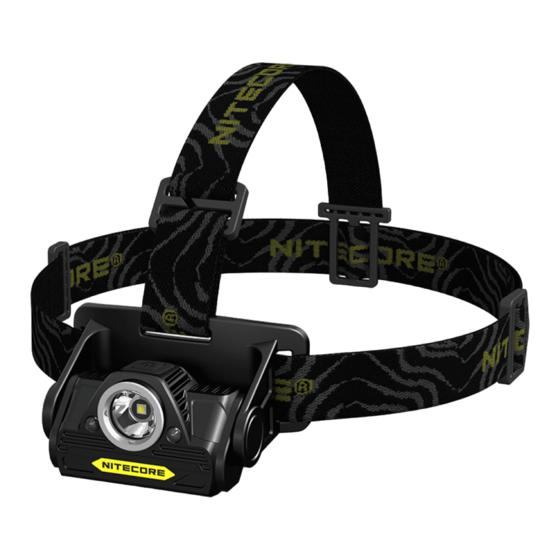

Nitecore HA20 User Manual

The All-Round Flashlight Expert
Features
·Unibody die-cast, lightweight and rugged
·Dual-source headlamp with CREE XP-G2 LED and two F5 red LEDs
·Powered by two AA batteries for a maximum output up to 300 Lumens
·High efficiency circuit board provides up to 160 hours runtime
·Integrated "Precision Digital Optics Technology" provides extreme
reflector performance
·Five brightness levels and three concealed special modes to select
from
·Red LEDs provide constant/flashing illumination
·Displays battery voltage with red light (accurate to 0.1V)
·Features intelligent memory effect
·Innovative single button two-stage switch is remarkably user-friendly
(Chinese Patent: ZL201120062948.1)
·Tilting mechanism provides 90°vertical movement to eliminate
illumination blind zones
·A custom catoptrics-based system produces an extremely wide 100°
beam angle
·Featuring Advanced Temperature Regulation (ATR) technology to
dynamically adjust output performance according to its internal
temperature
·Comfortable chafe-free and breathable nylon headband
·Toughened ultra-clear mineral glass with anti-reflective coating
·Constructed from aero-grade aluminum alloy
·Waterproof in accordance with IP67
·Impact resistant to 1.5 meters
Dimensions
Size: 3.54" x 2.18" x 1.98" (90mm x 55.4mm x 50.4mm)
Head diameter: 0.94" (24mm)
Weight: 2.17oz (61.4g) (without battery)
Accessories
Spare O-ring
Battery Options
Primary AA battery
Rechargeable AA battery
Primary AA Lithium battery
Output & Runtime
TURBO HIGH
160
300
LUMENS
LUMENS
1 45
2 30
h min
h min
110m
3050cd
1.5m
IP67
NOTICE
The above data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1 using 2 x 1.2V 2400mAh AA
batteries under laboratory conditions. The data may vary slightly during
real-world use due to battery type, individual usage habits and
environmental factors.
TYPE Nominal voltage Compatible
AA 1.5V Y (Recommended)
AA 1.2V Y (Recommended)
L91 1.5V Y
MID LOW ULTRALOW
90
30
LUMENS
LUMENS LUMEN
5 45 160h
17h
h min
(Beam Distance)
(Peak Beam Intensity)
(Impact Resistant)
( )
Dust & Water Resistant)
Thanks for purchasing NITECORE!
®
HA20

Operating Instructions

HA20 utilizes a two-stage switch to enable various operations based on
finger pressure.

Battery Installation

Insert two AA batteries with the positive (+) and negative (-) ends
corresponding to the diagram below. Align the cover .
Note: Each time batteries are inserted, the red LEDs will blink to indicate
battery voltage. Please refer to the "Power Tips" section in this manual
for details.
Caution: DO NOT direct the beam towards human or animal eyes when
using HA20.
On/Off Operations
To turn HA20 on: Press the switch all the way down until a "Click" is
heard;
To turn HA20 off: Press the switch all the way down again until a "Click"
is heard.
Brightness Levels
With HA20 turned on, press the switch partway down to cycle through
brightness levels: ultralow, low, medium, high-turbo. HA20 has memory
effect for brightness levels. Each time it is turned on, HA20 will enter the
brightness level last used.
1
Special Modes(Police Warning/Location
Beacon/SOS)
With HA20 turned on, press the switch all the way down for over one
second to enter police warning mode. Press the switch partway down to
cycle through location beacon-SOS-police warning modes. To exit, press
the switch all the way down to turn HA20 off.
Constant/Flashing Red Illumination
With the light turned off, press the switch partway down for over one
second to enter constant red illumination mode (7 hours and 25 minutes
runtime at 16 Lumens);
In red illumination mode, press the switch partway down to switch
between constant and flashlight red illumination. To exit, press the switch
all the way down to turn HA20 off.
Power Tips
Upon battery installation, the red LEDs will blink to indicate battery
voltage (accurate to 0.1V). For example, when battery voltage is 2.4V,
red LEDs blink twice, followed by a 1.5 second pause, and blink four
