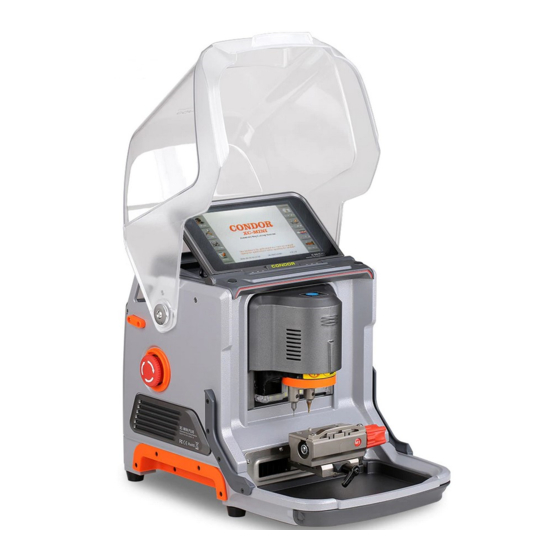

Xhorse CONDOR XC-Mini User Manual

Automatic key cutting machine
Hide thumbs Also See for CONDOR XC-Mini:
Table of Contents

Advertisement

Quick Links

Automatic Key Cutting MachineCONDOR XC-MINI
.
CONDOR
Automatic Key Cutting Machine
XC-MINI
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONDOR XC-Mini and is the answer not in the manual?

Questions and answers

Related Manuals for Xhorse CONDOR XC-Mini

Summary of Contents for Xhorse CONDOR XC-Mini

  • Page 1 Automatic Key Cutting MachineCONDOR XC-MINI CONDOR Automatic Key Cutting Machine XC-MINI User Manual...

  • Page 2: Table Of Contents

    Automatic Key Cutting MachineCONDOR XC-MINI TABLE OF CONTENTS 1）SAFETY PRECAUTIONS AND WARNINGS ------------------------------------------1 2）GENERAL INFORMATION -------------------- ---------- -------------------------- 2 3）PRODUCT PACKAGING CHECKLIST -----------------------------------------------------3 4）OVERVIEW 4. 1 SC H E M AT I C -- - - - - - - - - - - - -- - - -- - - - - - - -- - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 4.

  • Page 3: Safety Precautions And Warnings

    Automatic Key Cutting MachineCONDOR XC-MINI 1．Safety Precautions and Warnings To prevent personal injury or machine damage, users should carefully observe the instructions provided by this operation manual and adopt the following safety precautions：  Always operate the machine under the safe condition ...

  • Page 4: General Information

    All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means ( mechanical, electronic, photocopying, recording, or others), without permission of XHorse. Due to continuous product improvement, the information contained in this manual is subject to change without notice.

  • Page 5: Product Packaging Checklist

    Automatic Key Cutting MachineCONDOR XC-MINI 3. Product Packaging Checklist The whole package covers the following items, if missing, please contact your dealer.There are four kinds of power cord,we only supply one of them based on the actual demand of different countries. Name Image Quantity...
  • Page 6 Automatic Key Cutting MachineCONDOR XC-MINI M1 Clamp For Single/Double Sided Keys M2 Clamp For Channel-Track Keys M3 Clamp For Ford FO21 & Citroen SX9 Keys （optional） KeyMachine body Main body Quality certificate Product Packaging Checklist User Manual...
  • Page 7 Automatic Key Cutting MachineCONDOR XC-MINI Attention: -- Replace the cutter regularly to ensure the key cutting quality. -- Users should check the stepper motor belt regularly. If excessive wear and tear occur, please replace these parts to ensure the key cutting accuracy and the efficient operation of the machine -- Please use the 10A fuse.

  • Page 8: Overview

    Automatic Key Cutting MachineCONDOR XC-MINI 4. Overview 4.1 Schematic Operation buttons 7’Touch screen Emergency stop button Protective shield Probe Cutter LED lights Key locking knob Clamp Clamp lock...

  • Page 9: Characteristics

    Automatic Key Cutting MachineCONDOR XC-MINI 4.2 Characteristics  Built-in Database  Multi-languages Support  7' Capacitive Touch Screen  3-Axis Precision Ball Screw Transmission  Cross Rail  All Aluminum Machine Body  Single machine with both Tracer/Cutter  Standardly include three clamps M1/M2/M3 ...

  • Page 10: Installing The Cutter

    Automatic Key Cutting MachineCONDOR XC-MINI 5. Installation 5.1 Installing the cutter To Install the cutter 1） Put the cutter into the cutter hole and to the top limit position, ensure the section of cutter and clamp lateral parallel 2） Turn the CUTTER LOCK SCREW clockwise, till the cutter is tightened.

  • Page 11: Removing The Cutter

    Automatic Key Cutting MachineCONDOR XC-MINI 5.2 Removing the Cutter To Remove the Cutter 1） Hold the cutter lightly, Turn the CUTTER LOCK SCREW counterclockwise 2） after the cutter loosen, remove it...

  • Page 12: Clamp Sample

    Automatic Key Cutting MachineCONDOR XC-MINI 5.3 Clamp installation To Install the Clamp 1） Turn the LOCKING WRENCH counterclockwise on the left side to loosen. 2） Choose the clamp according to the key type, Push the clamp from the right side of the CLAMP CARRIAGE to limit position 3）...

  • Page 13: Clamp Samples

    Automatic Key Cutting MachineCONDOR XC-MINI 5.4Clamp Samples 6. Operating instructions Please initial device before use 6.1 Height Level Adjustment...

  • Page 14: Height Level Adjustment

    Automatic Key Cutting MachineCONDOR XC-MINI 1）Enter the Main interface, Click on the Self Test 2）Click on Height Level Adjustment...
  • Page 15 Automatic Key Cutting MachineCONDOR XC-MINI 3）Follow the instructions on the screen, then click on the CONTINUE 4）after the machine has stopped, follow the instructions on the screen till the tips of the probe and the cutter are on the same horizontal level. Then click on CONTINUE. The machine enters the Calibration Process.

  • Page 16: Clamp Calibration

    Automatic Key Cutting MachineCONDOR XC-MINI 5）After the machine has stopped, select the diameter of the current cutter in use, then click on Confirm to finish 6.2 Clamp Calibration 1）Enter the Main interface,Click on Self Test...
  • Page 17 Automatic Key Cutting MachineCONDOR XC-MINI 2）Enter Self Test interface, Click on Clamp Calibration 3）Enter Clamp Calibration, Click on M1 button...
  • Page 18 Automatic Key Cutting MachineCONDOR XC-MINI 4）Follow the steps on the screen, then click on Continue,complete M1 Clamp Calibration. 5）Enter M2 Clamp Calibration,Do Not put any key blank on the clamp,keep Side A upwards,then click on Continue...

  • Page 19: Cutting Calibration

    Automatic Key Cutting MachineCONDOR XC-MINI 6）Turn clamp to SideBCD,and calibrate each side, do all steps follow the screen, complete M2 Clamp Calibration. 6.3 Cutting Calibration...
  • Page 20 Automatic Key Cutting MachineCONDOR XC-MINI 1）Enter the Main interface, Click on Self Test 2）Enter Self Test interface, Click on Cutting Calibration 3）Follow the steps on the screen, then click on CONTINUE, The Cutting Calibration in Process...
  • Page 21 Automatic Key Cutting MachineCONDOR XC-MINI 4）Please use the brush to clean up the clamp cutting spot, the probe and the cutter. then click on CONTINUE, Cutter Calibration Complete...

  • Page 22: How To Use Key Database

    Automatic Key Cutting MachineCONDOR XC-MINI 6.4 How to use “Key Database” User need to supply the key code, then can cutting the key. 1）Enter the Main interface, Click on Key Database 2）Choose the Car Brand, Click on Confirm...
  • Page 23 Automatic Key Cutting MachineCONDOR XC-MINI 3）Enter the key code  Click on Confirm 4） Enter the key serial code  Click on Confirm...
  • Page 24 Automatic Key Cutting MachineCONDOR XC-MINI 5) The Bitting Code will be found in the database, and it will be shown on the screen, Click on Cut to start...

  • Page 25: How To Use Key Duplication

    Automatic Key Cutting MachineCONDOR XC-MINI 6.5 How to use “Key Duplication” User need to supply the Car type and Year of the production 1） Enter the Main interface, Click on Key Duplication 2）  Choose the Car Maker Click on Confirm...
  • Page 26 Automatic Key Cutting MachineCONDOR XC-MINI 3）Choose Car Type, Click on Confirm 4）Choose the Car type and Year of the production, Click on Confirm...
  • Page 27 Automatic Key Cutting MachineCONDOR XC-MINI 5）Put the original Key in the properly position of the clamp display on the screen, then Click on Decode Key 6）Verify bit code and modify bit code if needed, Click on Cut to start...

  • Page 28: How To Use Cut By Bitting

    Automatic Key Cutting MachineCONDOR XC-MINI 6.6 How to use “Cut by Bitting” There are 2 methods to get the key using Cut by Bitting Method 1：without the origin key using Cut by Bitting 1） Enter the Main interface, Click on Cut by Bitting...
  • Page 29 Automatic Key Cutting MachineCONDOR XC-MINI 2） Choose the Blank Key, Click on Confirm 3） Select Key Type  Click on Confirm 4） Put the Blank Key in the properly position of the clamp display on the screen  Enter bitting and verify, then click on Cut to start...
  • Page 30 Automatic Key Cutting MachineCONDOR XC-MINI Method 2：existing the origin key using Cut by Bitting 1）Choose the Blank Key, Click on Confirm 2）Select Key Type, Click on Confirm...
  • Page 31 Automatic Key Cutting MachineCONDOR XC-MINI 3）Click on Decode Key, the found bitting will display on the screen 4）Verify bitting and modify bitting if needed, Click on Cut to start...

  • Page 32: How To Use Find Bitting

    Automatic Key Cutting MachineCONDOR XC-MINI 6.7 How to use “Find Bitting” Parts of the car are missing bitting on door lock/trunk lock/ignition lock, enter unknown bitting as "?" 1）Enter the Main interface, Click on Find Bitting 2）Select Car Maker  Click on Confirm...
  • Page 33 Automatic Key Cutting MachineCONDOR XC-MINI 3）Select the Blank Key  Click on Confirm 4)Select Key Type Click on Confirm...
  • Page 34 Automatic Key Cutting MachineCONDOR XC-MINI 5）. Enter known bitting . Enter unknown bitting as "?" . Click on Find Bitting Code 6）Possible key bitting will be listed. Note that system has sorted the codes by the most economical way in order to save blank keys. For example, the bitting under " First key" only needs three blank keys, the bitting under "Second Key"...

  • Page 35: Online Update

    Automatic Key Cutting MachineCONDOR XC-MINI 7． ONLINE UPDATE Please contact your dealer/technical support for the latest Update Tool. CONDOR XC-Mini Online Update Tool V2.0.2.exe Follow the update steps those are prompted by the software Notes: Data downloading and firmware upgrading may take a while, please be patient.
