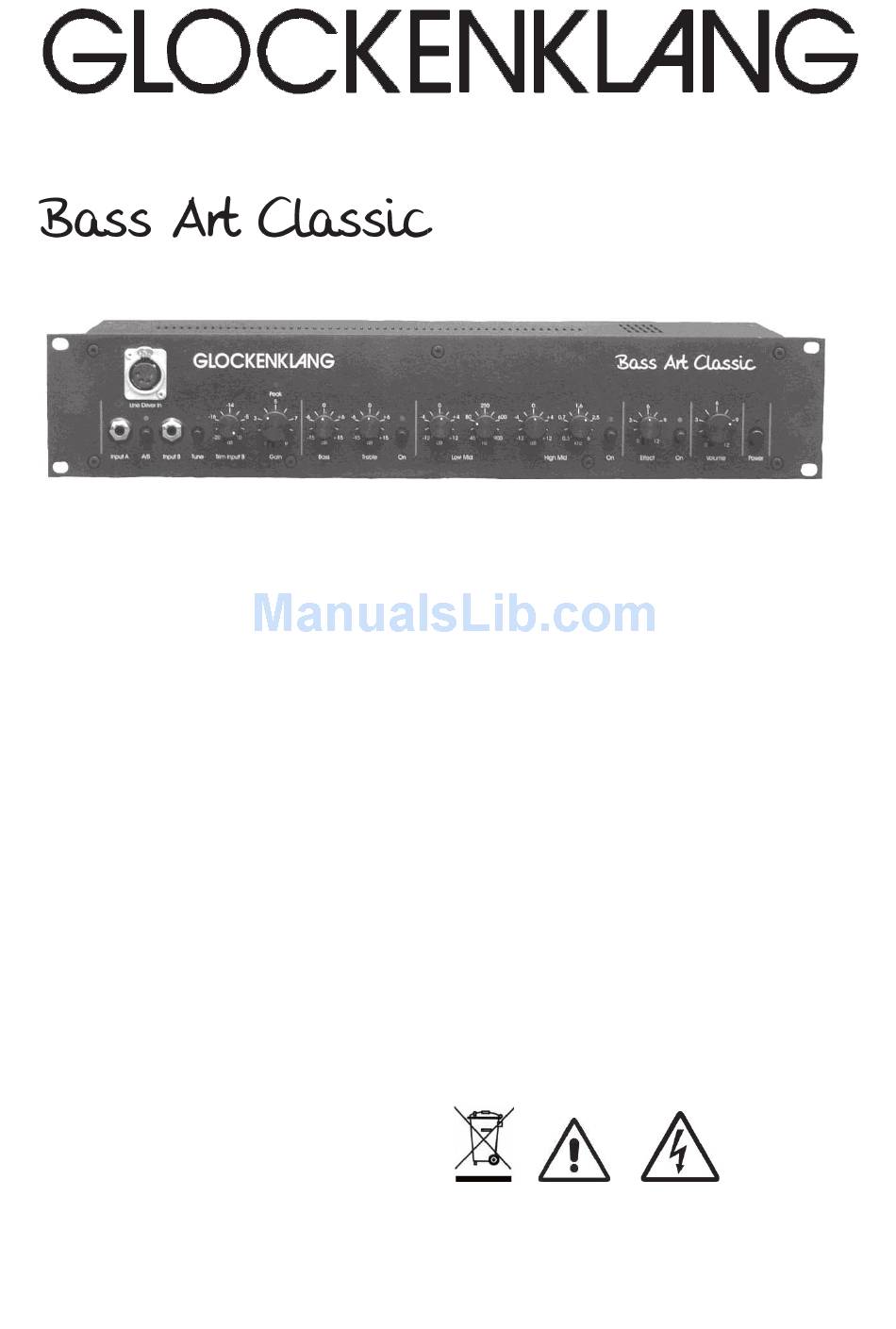

- Page 1 Eimterstr. 147 4. Volume control D-32049 Herford 5. Power stage 6. Mains connection +49-5221-51506 7. Line output +49-5221-108755 8. Balanced DI output http://www.glockenklang.de 9. Parallel insert (mixable) e-mail: info@glockenklang.de 10. Footswitches 11. Serial insert 12. Tuner out Technical Data Warranty...
- Page 2 Handling Thank you for choosing the GLOCKENKLANG Do not drop the amp. Do not use excessive Bass Art Classic Preamplifier. You have force when activating switches and dials. purchased an exquisite piece of equipment, which was designed after the most modern technical aspects.
- Page 3 1.1 Line Driver In XLR-Connector 2.1 Treble/Bass Eq with On Switch Input for the optional instrument line driver. Is Bass and Treble controls serve to fine tune your connected to the switch-contact of the Input B sound or solve acoustical problems on stage. jack.
- Page 4 6.1 A/C Connector with fuse 9.1 Loop Return Jack Connector for A/C cord. The fuse is located in the small Connect to the output of an effects processor, that is compartment below. A spare fuse is included in the supposed to be looped into the effects loop. Can be compartment.
- Page 5 Bass Art Classic Preamp Technical Data Transistor Instrument-Preamp, 19“ 2 units Inputs 1 XLR 4-pin for Line-Driver (pin 1 ground, pin 2 signal, pin 3 +15V, pin 4 –15V), connected to Input B, will be disconnected by jack-plug in Input B jack 1 Jack (1/4“) A for passive basses and active basses with low output level, 2.5MΩ...
- Page 6 3. Die Garantie berechtigt nicht zur kostenlosen Inspektion oder § 1 GARANTIE-LEISTUNG Wartung bzw. zur Reparatur des Gerätes, insbesondere wenn 1. Die Firma GLOCKENKLANG gewährt für mechanische die Defekte auf unsachgemäße Benutzung zurückzuführen sind. und elektronische Bauteile des Produktes, nach Ebenfalls nicht vom Garantieanspruch erfasst sind Defekte an Maßgabe der hier beschriebenen Bedingungen, eine...
- Page 7 93/68/EEC and the low voltage Directive 73/23/EEC including amendment 93/68/EEC. This declaration of conformity of the European Communities is the result of an examination carried out by the Qualitiy Assurance Department of GLOCKENKLANG in accordance with European Standards EN 50081-1, EN 50082-1 and EN 60065 for low voltage.
