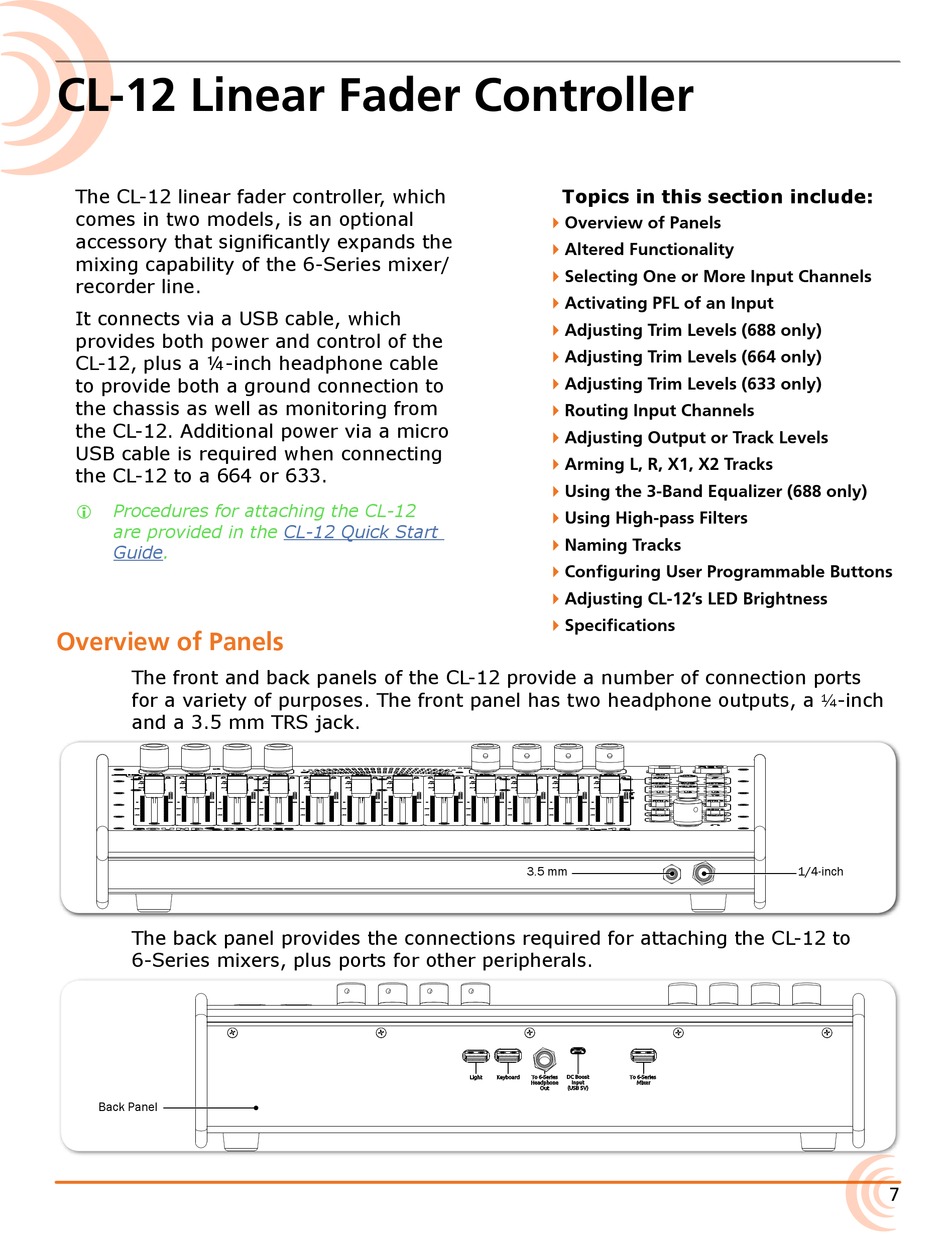

CL-12 Linear Fader Controller

The CL-12 linear fader controller, which
comes in two models, is an optional
accessory that significantly expands the
mixing capability of the 6-Series mixer/
recorder line.
It connects via a USB cable, which
provides both power and control of the
CL-12, plus a ¼-inch headphone cable
to provide both a ground connection to
the chassis as well as monitoring from
the CL-12. Additional power via a micro
USB cable is required when connecting
the CL-12 to a 664 or 633.
Procedures for attaching the CL-12
i
are provided in the
Guide.

Overview of Panels

The front and back panels of the CL-12 provide a number of connection ports
for a variety of purposes. The front panel has two headphone outputs, a ¼-inch
and a 3.5 mm TRS jack.
The back panel provides the connections required for attaching the CL-12 to
6-Series mixers, plus ports for other peripherals.
Back Panel
CL-12 Quick Start
Topics in this section include:
Overview of Panels
Altered Functionality
Selecting One or More Input Channels
Activating PFL of an Input
Adjusting Trim Levels (688 only)
Adjusting Trim Levels (664 only)
Adjusting Trim Levels (633 only)
Routing Input Channels
Adjusting Output or Track Levels
Arming L, R, X1, X2 Tracks
Using the 3-Band Equalizer (688 only)
Using High-pass Filters
Naming Tracks
Configuring User Programmable Buttons
Adjusting CL-12's LED Brightness
Specifications
3.5 mm 1/4-inch
