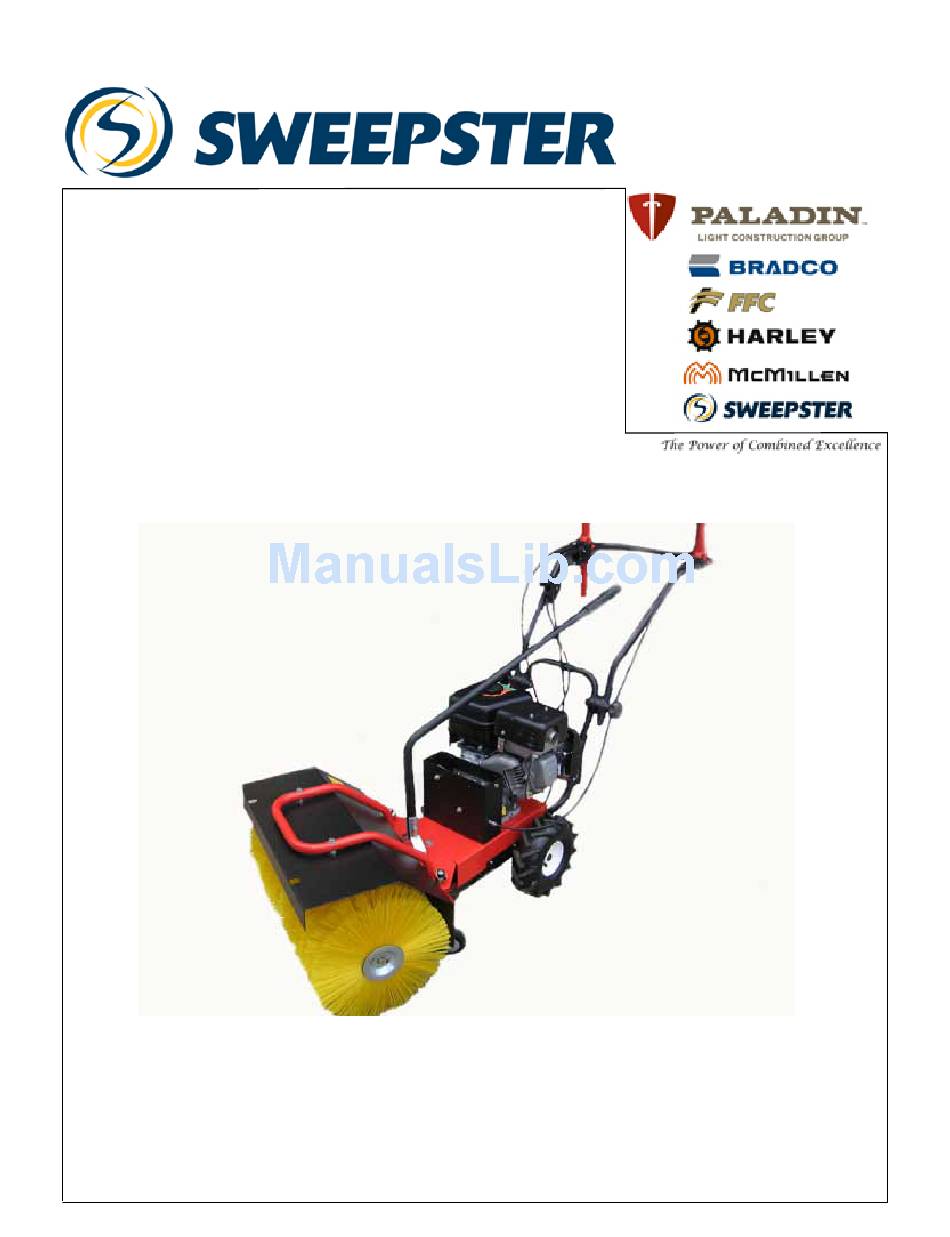

- Page 1 WSP24 Walk Behind Sweeper Sweepster Serial Number_________________________ Manual Number: 51-4144 Release Date: February 2008 Serial Number 0807001 and up 51-4144 800-456-7100 www.paladinlcg.com Sweepster 2800 N. Zeeb Rd., Dexter, MI. 48130 United States of America...
- Page 2 Notes 51-4144...
-
Page 3: Table Of Contents
SAfety StAteMeNtS ..........................4 GeNeRAL SAfety PRecAUtIoNS......................5-6 SAfety SIGNS & LAbeLS .........................7 eNGINe oPeRAtIoN ..........................8 oPeRAtIoN ............................9-12 SeRvIce & RePAIR - GeNeRAL ......................12 StoRAGe ..............................12 techNIcAL SPecIfIcAtIoNS .........................13 tRoUbLeShootING ..........................13 MAINteNANce ............................14 wSP24 SALeAbLe kItS AND ASSeMbLIeS ..................16-19 AcceSSoRIeS............................20 wARRANty ...............................21 51-4144... -
Page 4: Introduction
If you have any questions about information in this CauTioN THiS STaTeMeNT iS uSeD manual or need to order parts, please call, write, fax WHeRe MiNoR iNJuRy CoulD or e-mail SweePSteR. ReSulT iF THe iNSTRuCTioNS aRe NoT FolloWeD PRoPeRly. Sweepster 2800 North Zeeb Road... -
Page 5: General Safety Precautions
GeNeRal SaFeTy PReCauTioNS GeNeRal SaFeTy PReCauTioNS WaRNiNG PRoTeCT aGaiNST FlyiNG WaRNiNG ReaD MaNual PRioR To DeBRiS iNSTall Always wear proper safety glasses, Improper installation, operation, goggles or a face shield when driving or maintenance of this equipment pins in or out or when operation could result in serious injury or causes dust, flying debris, or any other death. - Page 6 GeNeRal SaFeTy PReCauTioNS GeNeRal SaFeTy PReCauTioNS CoNTiNueD CoNTiNueD • wear safety glasses, protective clothing, and use a sound piece of • wear the protective clothing cardboard or wood when equipment specified by the tool searching for hydraulic leaks. manufacturer. Do NoT uSe youR HaNDS! See illuSTRaTioN.
-
Page 7: Safety Signs & Labels
4. Safety signs are available, free of charge, from 4. Apply the safety sign to the position shown in your dealer or from SweePSteR. the diagram above and smooth out any bubbles. 51-4144... -
Page 8: Engine Operation
eNGiNe oPeRaTioN NoTiCe - THe MoToR iS DeliVeReD WiTHouT oil aND GaSoliNe. oil Filling: Place the motor in a horizontal position. Remove the plug and fill with oil right to the edge. (figure 1) Fuel Use lowest available octane unleaded fuel. when filling, place the machine in a horizontal position. -
Page 9: Operation
oPeRaTioN •before leaving the operator’s position for any CauTioN a SWeePeR iS a DeMaNDiNG reason, StoP eNGINe. MaCHiNe. only fully trained operators or trainee operators under NoTiCe - aVoiD TRaNSMiSSioN DaMaGe. supervision of a fully trained person Do not shift while in motion. should use this machine. - Page 10 oPeRaTioN oPeRaTioN operating Tips During use NoTiCe - aVoiD SWeePeR DaMaGe. Do not ram into piles Directing Debris Avoid excessive downward pressure on the brush Brush, engine & Travel Speeds sections to prevent excessive wear. A two to four inch wide pattern is sufficient for most applications. vary brush, engine and travel speeds to match sweeping conditions.
- Page 11 oPeRaTioN - CoNTiNueD Height adjustment of Caster Wheels & Brushes WaRNiNG SaFely oPeRaTe eQuiPMeNT Do not operate equipment until you once the brushes get worn it is necessary to adjust are completely trained by a qualified the height of the brushes, i.e. how close they are operator in how to use the controls, to the surface to sweep.
-
Page 12: Service & Repair - General
SeRViCe & RePaiR - GeNeRal oPeRaTioN - CoNTiNueD Repair or adjust the sweeper in a safe area, away Swing the Brush from traffic and other hazards. the brush can be swung 20° to either side. Press before adjusting or servicing remove spark plug the steering knuckle arm for the brush, turn the wire from spark plug. -
Page 13: Technical Specifications
TeCHNiCal SPeCiFiCaTioNS overall Width 30.7 inches Sweeping Width 23.6 inches Weight 127 lbs Brush Diameter 11.8 inches Noise level Noise level Vibration level 2000/14/eC operator Handlebar 103,0 dB(a) 95,5 dB(a) 7,8 m/s TRouBleSHooTiNG the engine does not start ensure that the spark plug is not defective ensure that the spark plug cap is fitted correctly... -
Page 14: Maintenance
MaiNTeNaNCe MaiNTeNaNCe SCHeDule BeFoRe aFTeR PRoCeDuReS eaCH HouRS HouRS eaCH hardware - Inspect & tighten engine & Air filter - check & clean if necessary oil, engine - check Level wash Unit - Remove Grease & Debris 51-4144... - Page 15 NoTeS 51-4144...
-
Page 16: Wsp24 Saleable Kits And Assemblies
WSP24 51-4144... - Page 17 WSP24 SaleaBle KiTS aND aSSeMBlieS Kit # Description Drawing Number 07-7388 Kit Replacement Brush a. brush sections Straight 350 x 3, 14 ea b. brush section sloped 350 x 3, 2 ea c. caster wheel, 2 ea 07-7389 Caster Spacers, 22 ea...
- Page 18 WSP24 51-4144...
- Page 19 WSP24 SaleaBle KiTS aND aSSeMBlieS Kit # Description Drawing Number 07-7394 assembly Drive idler a. bolt M10 x 20, 1 ea b. washer flat M8, 1 ea c. Spring, 1 ea d. washer flat, 1 ea e. Arm, 1 ea f.
-
Page 20: Accessories
oPTioNS hopper 07-7405 Snow blade 07-7406 51-4144... -
Page 21: Warranty
WaRRaNTy limited Warranty except for the excluded Products as described below, all new products are warranted to be free from defects in material and/or workmanship during the warranty Period, in accordance with and subject to the terms and conditions of this Limited warranty. excluded Products.
